Pfsense Firewall Hardware
Features：
10th gen Core i7 i5 i3 Pfsense Firewall Hardware;
6*Intel i226-V 2.5G(4*POE is optional)
1*M.2 3052 B-key,5G modem is optional
3*M.2 slots（Support WIFI and 4G or 5G）
2*DDR4 RAM Slot，Max Support 64G
Support TPM 2.0 security encryption；
pfSense firewall hardware is characterized by high performance, flexibility, scalability, reliability, remote
management capabilities, open-source software,and cost-effectiveness.
Nano N3061 is a fanless micro soft route powered by Intel 10th-generation Core processor,
Onboard TPM2.0 security encryption, support pfsense, ikuai, Windows 10, Windows 11, Linux, etc Operating system,
support 3 M.2 slots (can support WIFI+4G/5G), use is very convenient.

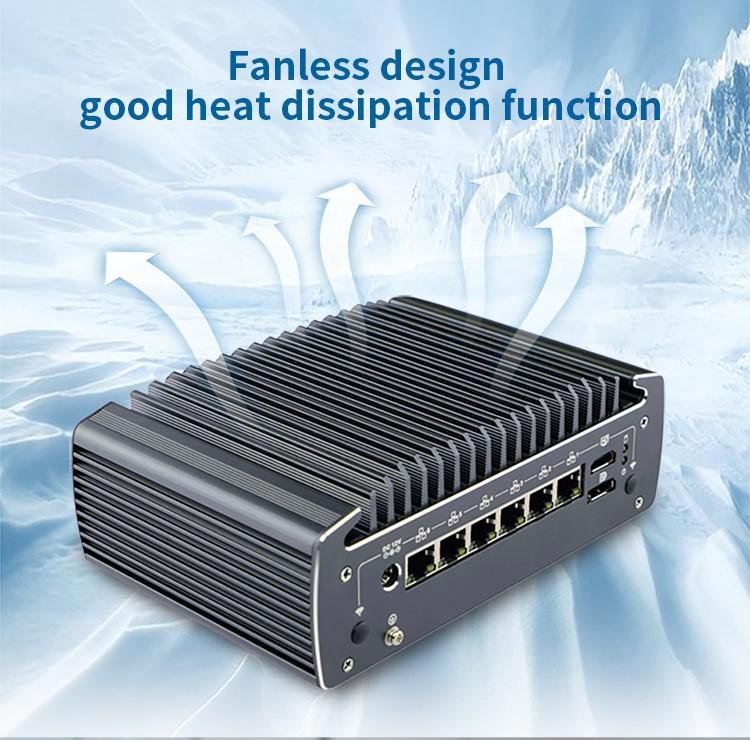

The whole machine is made of aluminum alloy mold forming, simple structure, with good dust, heat dissipation, vibration resistance and EMCPerformance, high system reliability, strong environmental applicability
| Model | Nano N3061 Pfsense Firewall Hardware |
| Color | Metal gray (Color can be customized) |
| Processor | Intel Core i3 10110U(Dual core,4 threads,2.1GHz,Max.Turbo 4.1GHz) |
| Intel Core i5 10310U(Quad core,8 threads,1.6GHz,Max.Turbo 4.2GHz) | |
| Intel Core i7 10810U(Six core,12 threads,1.1GHz,Max.Turbo 4.9GHz) | |
| RAM | 2*DDR4 2666MHz SOIMM RAM slot,Max. 64GB |
| Storage | 1*M.2,1*2.5"SSD/HDD,support RAID 0/1 |
| Display Port | 1*DP,1*HD (Support synchronous/asynchronous dual display, DP interface resolution up to 4096*2160@60Hz) |

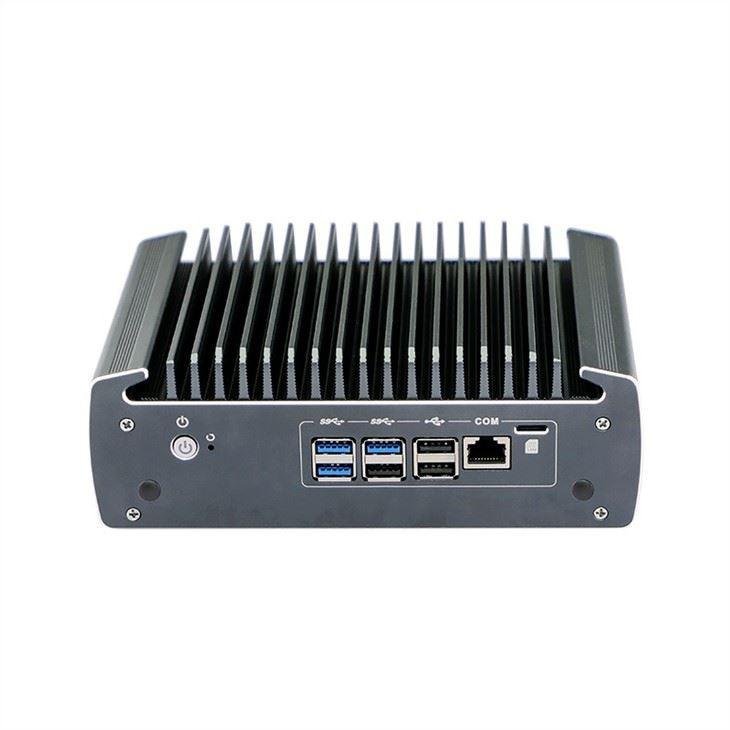

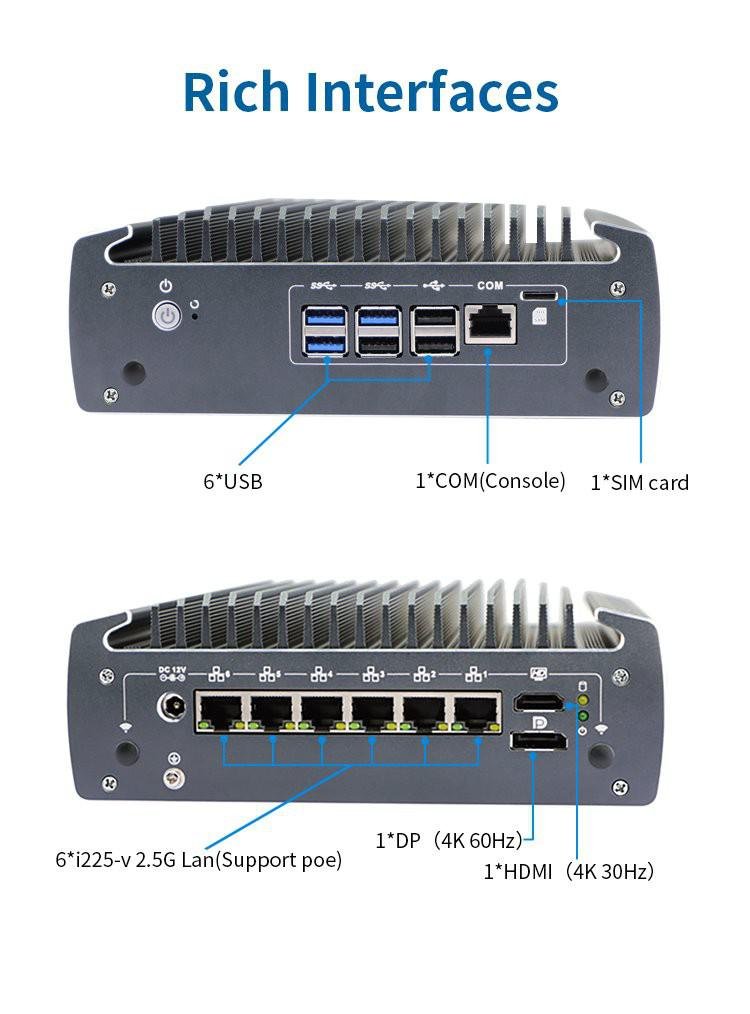

| I/O | 3*USB3.0,3*USB2.0,1*Power Switch,1*RJ45 COM(Support Console) |
| 6* RJ45 1000M Lan,1*DC,1*DP,1*HDMI | |

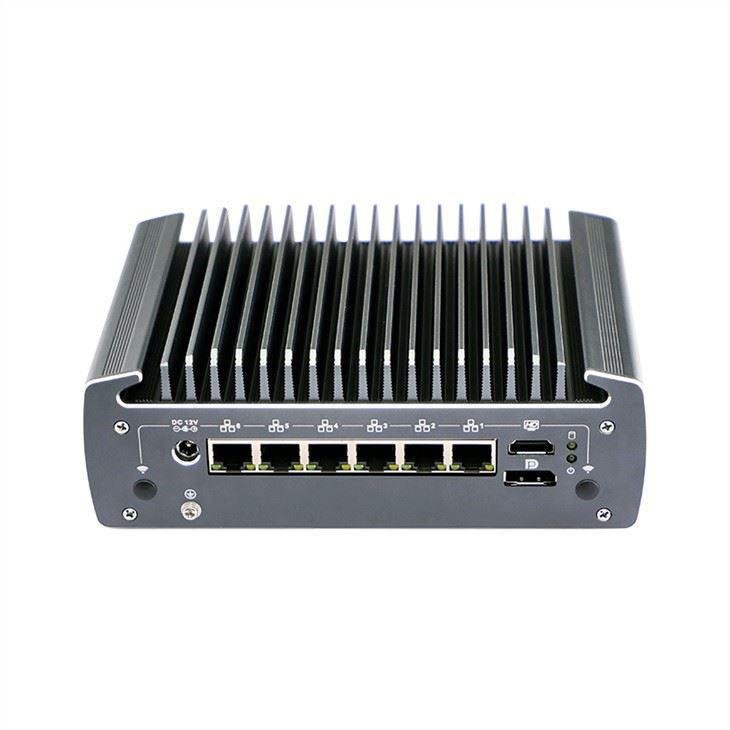

| Network | 6*intel i226-v 2.5G Lans,LAN3-6 can be 802.3af standard POE lan(option) |
| Input Voltage | DC 12V |

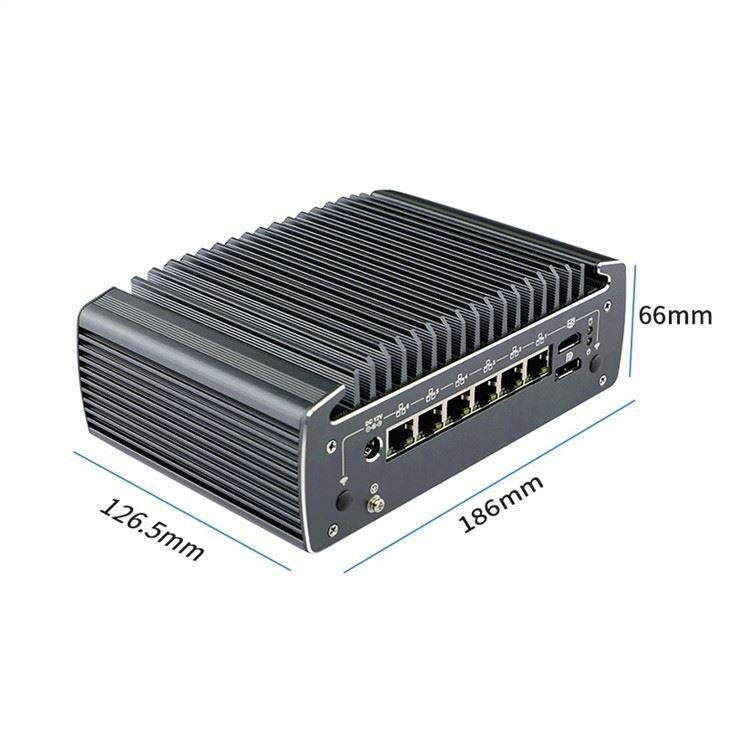

| Dimension | 186 * 126.5 * 66 mm |
| Net Weight | 1.3 kg |
CPU performance evaluation score data
Lithography | 14 nm | 14 nm | 14 nm |
| Total Cores | 2 | 4 | 6 |
| Total Threads | 4 | 8 | 12 |
| Max Turbo Frequency | 4.10 GHz | 4.20 GHz | 4.90 GHZ |
| Processor Base Frequency | 2.10 GHz | 1.60 GHz | 1.10GHZ |
| TDP | 15 w | 15 w | 15 w |
| Max Memory Size | 64GB | 64GB | 64GB |
| Memory Types | DDR4-2666, LPDDR3-2133 LPDDR4-2933 | DDR4-2666, LPDDR3-2133 LPDDR4-2933 | DDR4-2666, LPDDR3-2133 LPDDR4-2933 |
| Processor Graphics | Intel® UHD Graphics | Intel® UHD Graphics | Intel® UHD Graphics |
| Graphics Base Frequency | 300 MHz | 300 MHz | 300 MHz |
| Graphics Ma Dynamic Frequency | 1.00 GHZ | 1.10GHZ | 1.15 GHz |
| 4K Support | Yes, at 60Hz | Yes, at 60Hz | Yes, at 60Hz |
FAQ:
Q: Can you put my brand name (logo) on these products?
A: Yes,.We can support OEM/ODM service, the process of customization is following:
1:provide your specific requirement.
2:our design engineer draw the design draft.
3:you confirm the design draft.
4. we start produce it.
Q: How much do I need to pay for your OEM servise?
A: You should pay extra 500$,but we will return the 500$ to you when your order over 100 pieces.
Q: What payment method do you accept?
A: T/T,Western Union,PayPal.
Q: What is the Minimum Order Quantity(MOQ)?
A: We can sell one piece sample for your test.
Q: What is the lead time of your products?
A: 1-3 days for one sample, 15 working days for a large quantity.
If interested in Multi Lan Firewall Mini Pc, pls contact us
