PCI Slot Computer
◇All aluminum alloy structure；PCI Slot Computer
◇Intel Core i3 6100T, i5 6500T, i7 6700T CPU
◇2* DDR4 Max 32GB memory slot
◇6* COM（COM1、2 Optional RS232/422/485）
◇1* VGA，1*HDMI，1*DP
◇1*PCIE X16 slot + 1*PCIE X4 slot + 2*PCI slot
◇Applicated OS:

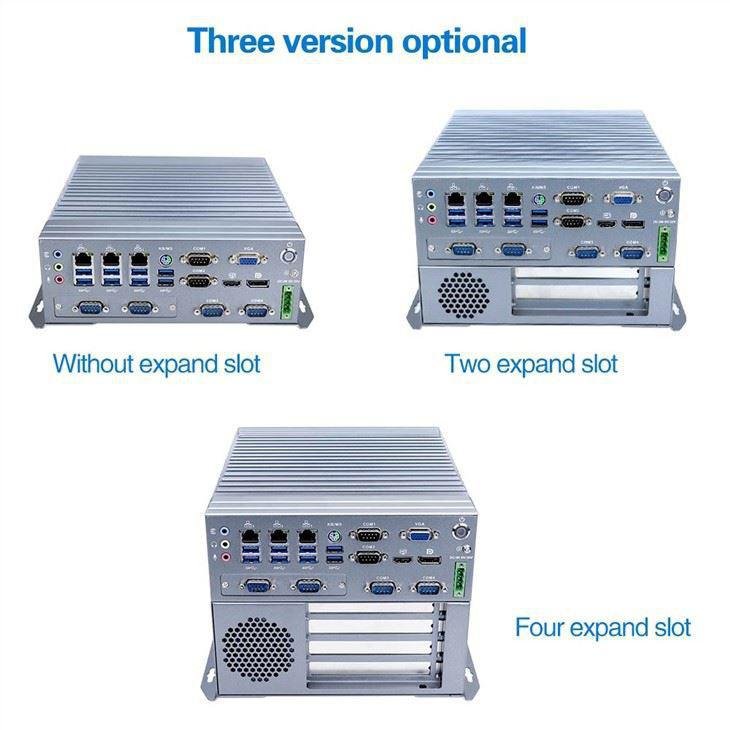

Iwill PCI/PCIe Expansion Slots Industrial PC Add I/O Boards to Customize Your Industrial PC 708 model is expansion slot serials industrial pc,Optional No expand slot、2 expand slot、4 expand slot,The cpu is i3 6100T ,i5 6500T,i7 6700T Optional ,2* DDR4 memory slot,Max 32GB,The performance of Intel® Core™ processors and large local storage let Mini PCs handle complex tasks while keeping a low profile .
It's designed as All aluminum alloy structure,Titanium gray Color chassis computing solution dedicated to industrial system, KIOSK, smart factory automation, industrial controller system and space-limited applications.
| Model | IBOX-708 |
| Processor | Intel Core i3 6100T (Dual core four threads，3.2 GHz) |
| Intel Core i5 6500T (Quad core four threads，2.5 GHz，Max turbo 3.1 GHz) | |
| Intel Core i7 6700T (Quad core eight threads，2.8 GHz，Max turbo 3.6 GHz) | |
| Memory | 2* DDR4 Max 32GB Ram slot |
| Storage | 1*MSATA ，2*2.5” SATA （Support RAID0/1） |
| Network | 2*Intel i211-AT，1*Intel i219-LM 1000M LAN （Support Vpro skill ) |
| Expansion Slot | 1*PCIE X16 slot + 1*PCIE X4 slot + 2*PCI slot，Extension Cards ：support 210 mm |
| Optional expand slot：1*PCIE X16 slot + 1*PCIE X4 slot | |
| I/O | 8*USB3.0 ,6* COM（COM1、2 Optional RS232/422/485） ,2 *Intel 1000M LAN |
| 1*VGA ，1*HD-MI，1*DP | |
| 1*Power Switch，1* Mic，2* Speak port,1* DC Power phoenix terminal | |
| Expansion | 1*MINI PCIE slot（Support WIFI/3G/4G），Embedded SIM Slot |
| 1*MINI PCIE slot（Support MSATA/3G/4G），Embedded SIM Slot | |
| Work Temp | 0℃ ～ +50℃，-20℃ ～ +60℃ |
Key Features
Intel® core® i3 i5 i7 Processor
1xHD-MI, 1xVGA ,1xDP for three display
2*Intel i211-AT，1*Intel i219-LM 1000M LAN （Support Vpro skill）
Expansion Slot:
1*PCIE X16 slot + 1*PCIE X4 slot + 2*PCI slot，Extension Cards ：support 210 mm
Optional expand slot：1*PCIE X16 slot + 1*PCIE X4 slot
Efficient heat dissipation
High quality aluminum case for quickly heat disspation.Fanless design for dustproof,shockproof and no noise.Fanless embedded system and low power consumption design,An industrial PC is a computer intended for industrial purposes with a form factor between a nettop and a server rack.
Why choose Iwill ?
1.We Can Customize A Solution To Meet Your Needs OEM&ODM Service.
2.15+ Years R&D and Manufacturing Experience
3. 16 Years Export Experiences
4. CE, FCC, ROHS, ISO9001, CCC, TUV, SGS Certification Gurantee
5. 3 Years Warranty
708 industrial faness system are designed and built to meet industrial customers' demands for maximum robustness, reliability and long-term availability.
welcome to consult about Multi lan Expansion slot Fanless Industrial Computer, More info,Jessie can provide more help for you
