N3540 Fanless Mini PC
All aluminum structure，fanless design mini pc；
Onboard Intel Celeron J1900 or N3540 quad coreprocessor Optional；
Max. Support DDR3L 8GB RAM；
Support 1*MSATA，1*2.5” HDD；
Support 2*1000M LAN；
Support OS：
NANO N3 is an N3540 fanless Mini PC. It uses Intel® Celeron™ J1900 / Intel Pentium N3540 quad core processor, support Windows 7/8/10 & Linux OS etc., Support 1*DDR3L 1333/1600MHz SODIMMRAM slot，Max. Support 8GB,support 1*MSATA and 1*2.5 inch HDD , very convenient to use.
| N3540 fanless Mini PC | |
Material | High-quality all aluminum，surface anodic oxidation |
Processor | Intel Celeron J1900 Quad core quad threading |
Intel Pentium N3540Quad core quad threading | |
RAM | Support 1*DDR3L 1333/1600MHz SODIMMRAM slot，Max. Support 8GB |
Display Port | 1*VGA，1*HDMI Support synchronous and asynchronous dual display |

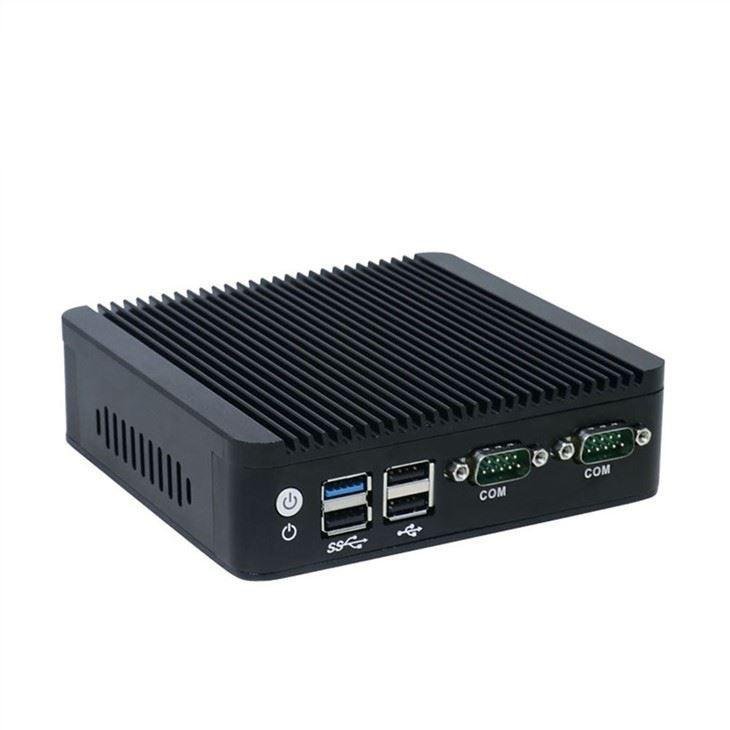

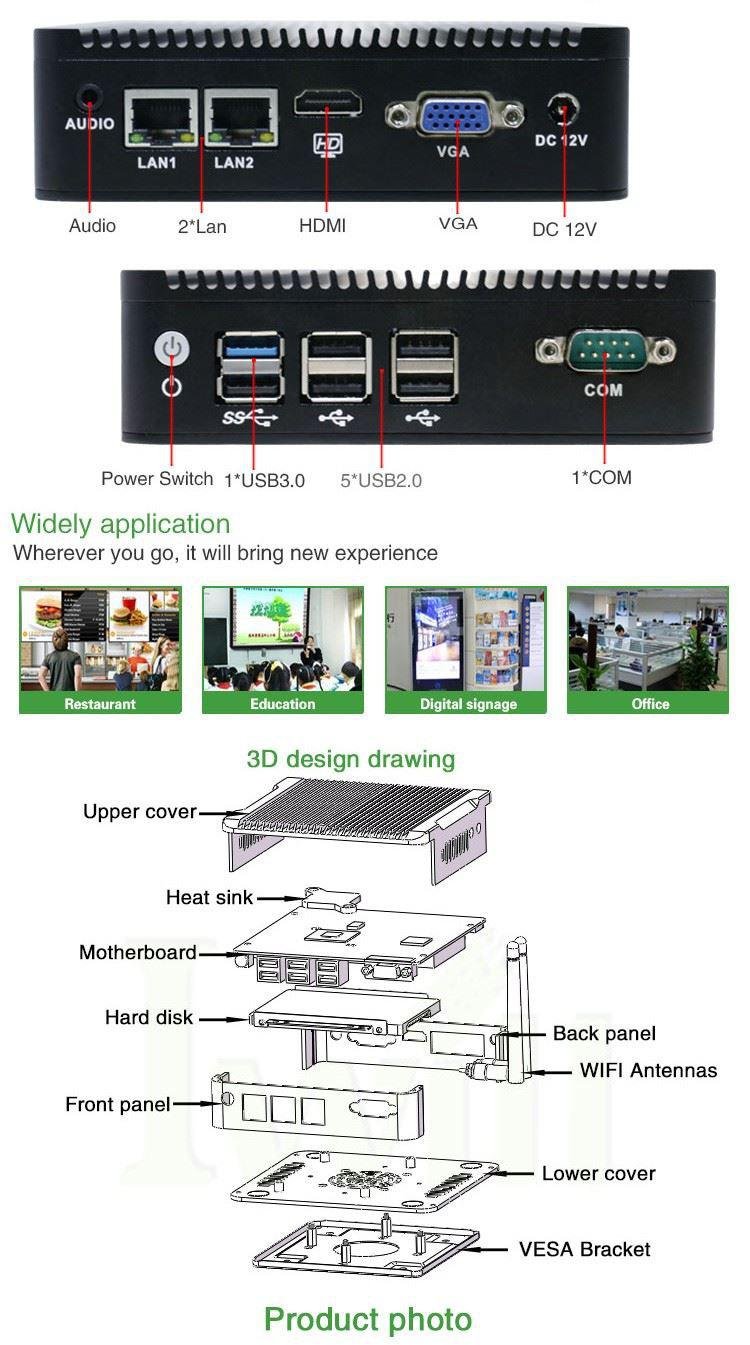

Front I/O | 1*Power Switch，1*USB3.0，5*USB2.0，1*RS232 COM |

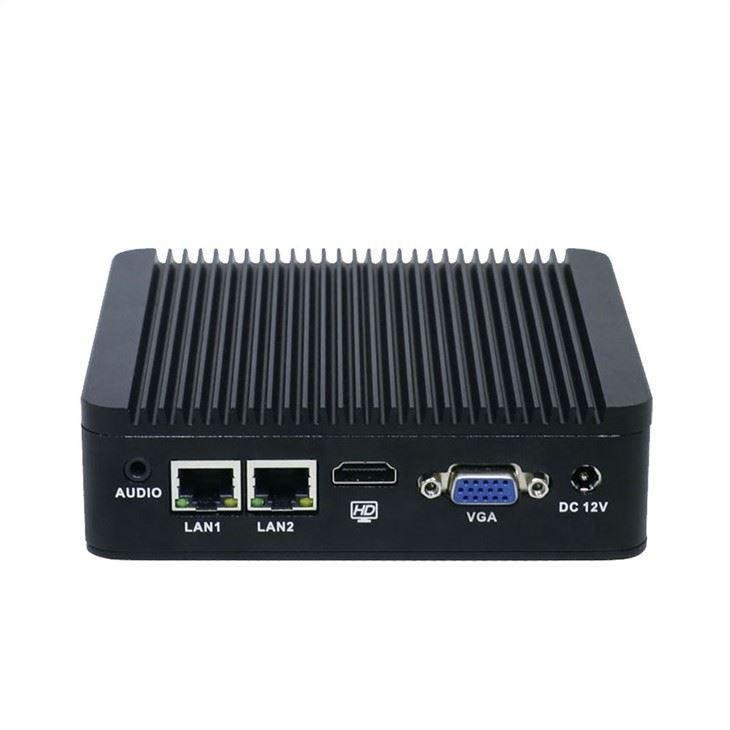

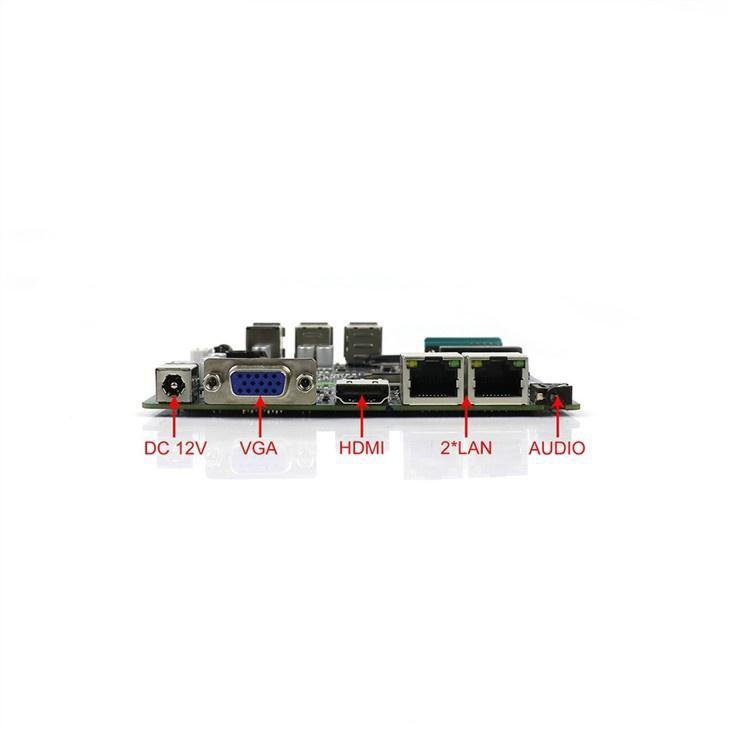

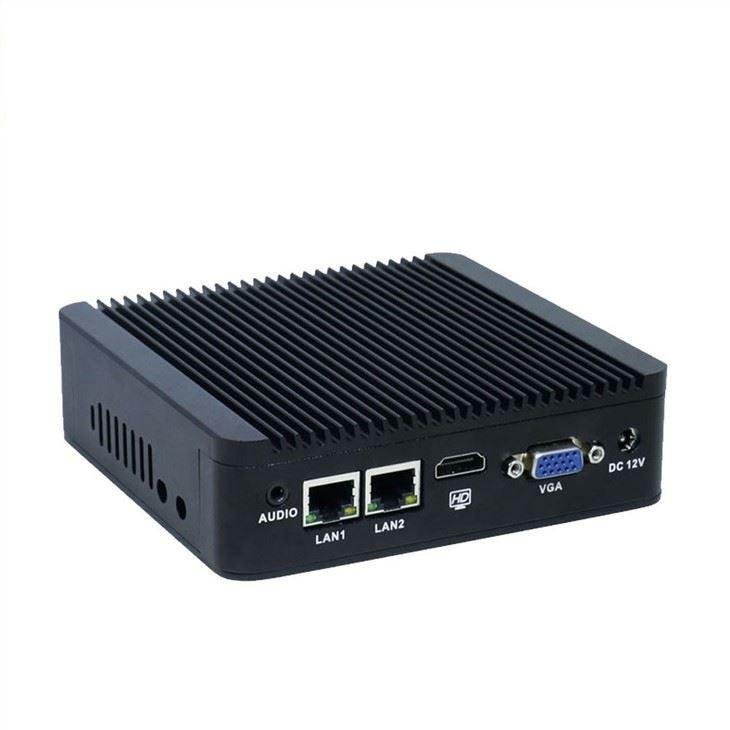

Rear I/O | 1*Audio，2*RJ45 LAN，1*VGA，1*HDMI，1*DC Input |

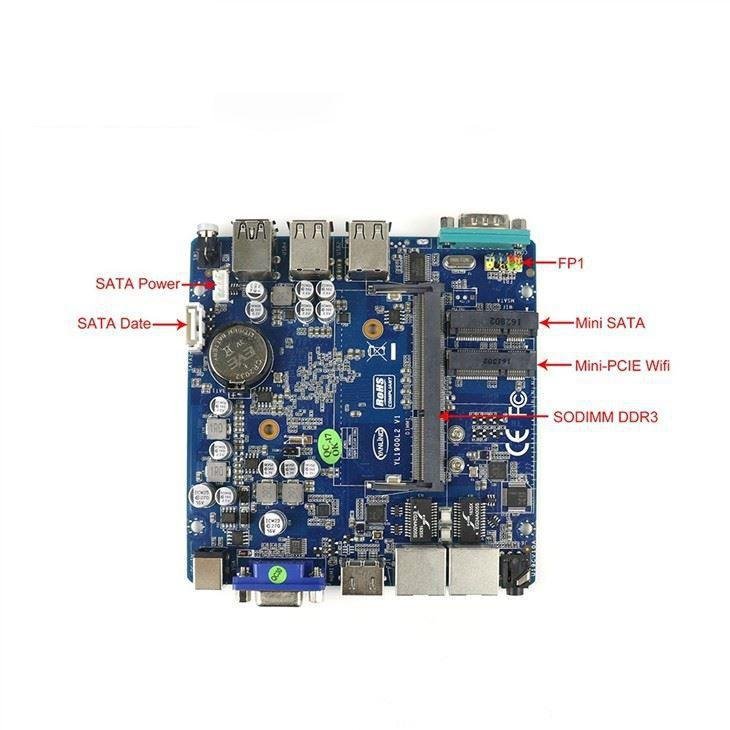

Expansion Slot | Support 1*MINI PCIE Slot（WIFI and Bluetooth Optional） |
Support 1*MINI PCIE Slot（Support MSATA） | |
Network | 2*10/100/1000M RTL8111E 1000M LAN |
Storage | 1*MSATA，1*2.5” HDD |
Input Voltage | Support DC 12V Input |
Other Function | Auto power on when there is electricity、Timing boot、Wake on LAN、PXE boot、Watchdog（0～255 level） |
Work Temp | 0℃ ～ +50℃（Commercial HDD），-20℃ ～ +50℃（Industrial SSD），Surface air flow |
Work Humidit | 5% ～ 95% non-condensing |
Certificates | CE、 CCC、 FCC Class A、 ROHS |
Dimension | 134 * 126 * 38.5 mm |
Net Weight | 0.7kg |
Application | Industrial Automation, Medical, Logistics Transportation, Warehouse, Electronic Education etc. |
If you're interested in this N3540 fanless Mini PC,and want to know more information, like quotation, products, solutions, etc.,welcome to contact us!
