Industrial Touch Screen Panel PC
◇ 10.1 inch Capacitive Touch screenpanel pc
◇ Intel Celeron J1900 quad core processor,TDP: 10W
◇ LCD Brightness:350 cm/m²
◇ LCD Resolution:1280x800
◇ 1xMini PCIE Slot（WIFI/BT/3G/4G is optional）
A101 is a high performance,10.1inch Capacitive Industrial Touch Screen Panel PC.Its a slim, fanless computer suitable for a wide variety of applications. Designed to meet harsh environmental conditions, the system was made to supermarket,kiosk self-service,Medical etc.
Model | ITPC-A101 (10.1 inch) |
Processor | Intel Celeron J1900【Quad core quad threading, 1.99GHz】 |
Chipset | Intel CPU Integrated Chip |
Memory | Support 1*DDR3L 1333/1600 Memory Slot, Max. 8GB |
BIOS | 64Mb Flash ROM |
Display Chip | Integrated Intel HD Graphics |
Display Port | 1*HDMI, Built-in 1*LVDS【Support synchronous / asynchronous dual display】 |
Expansion | Support 1*MSATA Slot |
Support 1*Mini PCIE Slot【WIFI/Bluetooth/3G/4G Optional, 1*SIM Slot】 | |

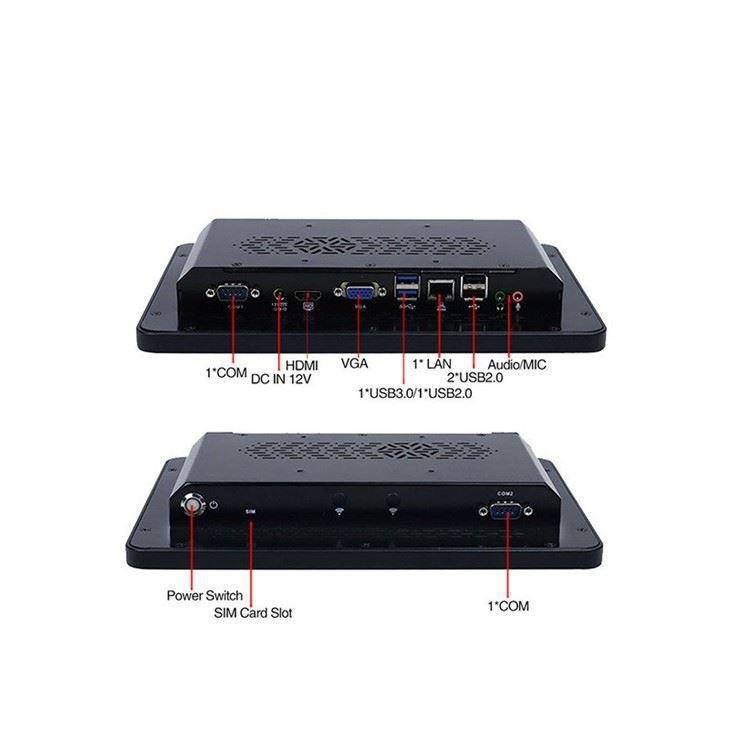

I/O | 1*USB3.0, 1*USB2.0, 2*RS232 COM (2*RS232/485 COM optional, Max. 3*COM), |
LCD | Size: 10.1 inch TFT-LCD |
Ratio: 16:10 | |
Resolution: 1280 * 800 | |
Brightness: 350 cd/m2 | |
Viewing Angle: Full Angle | |
Touch Screen | Industrial grade multi-touch capacitive touch screen |
Speaker | Two 8-ohm 2-watt speakers |
Power Supply | DC 12V |
Work Temp | -10℃ ～ +50℃, back plate surface air flow |
Work Humidity | 5% ～ 95% Non-Condensing |
Dimension | 260 * 178 * 38 mm |
Weight | 1.5kg |
Our 10.1 inch Industrial Touch Screen Panel PCs are computing devices that are designed for use in industrial settings such as factories, warehouses, and other harsh environments.
They are made using all aluminum alloy structure, fanless design to make them durable.

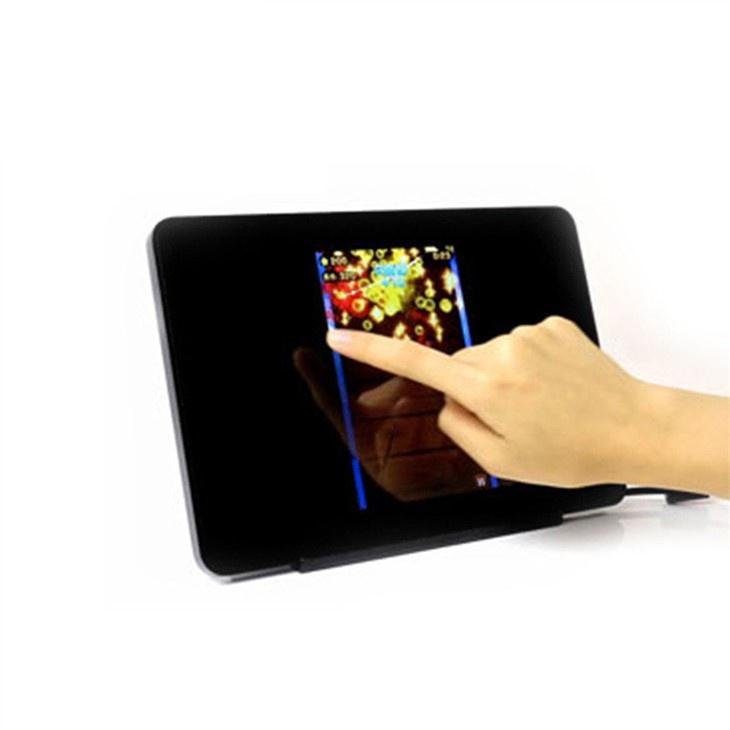

Multi-touch Capacitive touch screen,Lifetime: more than 50000 Thousand Times
I/O connectivity a wide range of input/output ports, that allow them to interface with other industrial machines and devices.
Industrial Touch Screen Panel PCs usually run specialized operating systems such as Windows Embedded, Linux , that are designed for industrial applications.
1080P Full HD Dual Display LCD screen, using highlight LCD backlight!Supports synchronous and asynchronous dual display!Support Windows 7 / Windows 8 / Windows 10 / LinuxContact us, let us know which OS you need.
This is a simple introduction to A101 Industrial Touch Screen Panel PC.You may also TALK US to learn more – such as Sample,Discount,Payment,Ship etc,.
