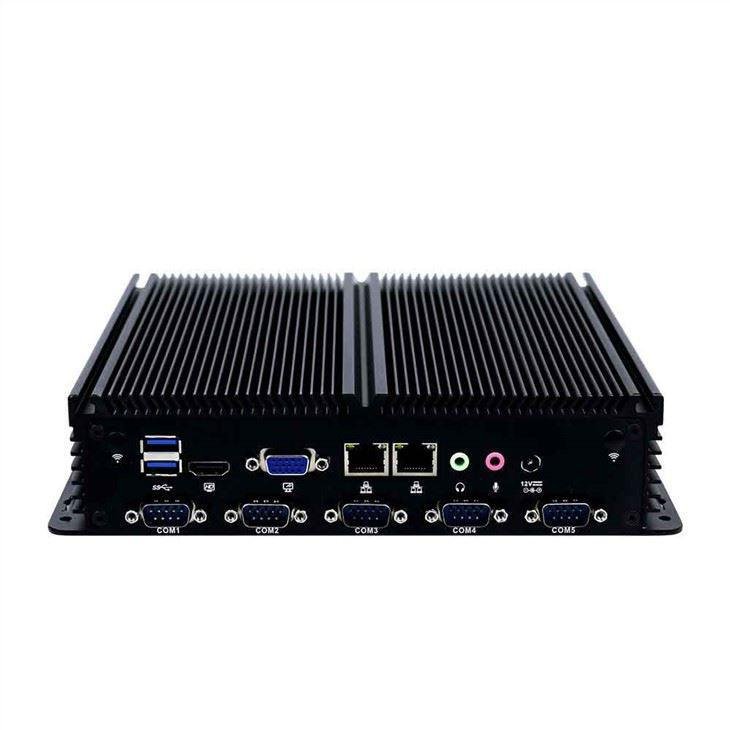

Embedded Core I5 4300U Industrial Pc
- All aluminum structure，fanless design I5 4300U embedded industrial pc
- Support Intel Core i5 4300U dual core processor
- Max. Support DDR3L 8G RAM
- Support 1*MSATA Slot，1*2.5” HDD
- Support WIFI/3G/4G（Choose one from three）
- Support 6*COM（COM3 RS232/422/485 Optional）
- Support OS：
The High end IBOX-205 Plus embedded Core I5 4300U industrial pc was designed for demanding industrial controller ,Support 6*COM（COM3 RS232/422/485 Optional）. Support 1*MSATA Slot，1*2.5” HDD；All aluminum structure，fanless design；it equipped DDR3L 1333/1600MHz SODIMM RAM Slot，Max. Support 8GB memory ,1*MINI PCIE Slot（WIFI/3G/4G Optional），Embedded SIM Slot.
tableborder="0" cellspacing="0" cellpadding="0" class="table">
| Model name | Embedded Core I5 4300U Industrial Pc |
Color | Black（Color can be customized） |
Processor | Onboard Intel Core i5 4300U（dual core quad threading，1.9Ghz，Max. Turbo 2.9Ghz）； |
RAM | Support 1*DDR3L 1333/1600MHz SODIMM RAM Slot，Max. Support 8GB |
BIOS | AMI UEFI BIOS |
Display Chip | Integrated Intel HD Graphics 4400 |
Network | 2*Intel i211-AT 1000M LAN |
Storage | Support 1*MSATA Slot，1*2.5” HDD（2*2.5” HDD Optional） |
Input Voltage | Support DC 12V Input |
Material | High-quality all aluminum，surface anodic oxidation |
Display Port | 1*VGA，1*HDMI（Support synchronous and asynchronous dual display） |
Display Chip | Integrated Intel HD Graphics 4400 |
Front I/O | 4*USB2.0，1*COM，1*Power Switch； |
Rear I/O | 2*USB3.0，5*COM（COM3 RS232/422/485 Optional），2*1000M LAN |
1*VGA，1*HDMI，1*DC12V Input，1*Mic，1*Line Out | |
Expansion Slot | Support 1*MINI PCIE Slot（Support MSATA）； |
Support 1*MINI PCIE Slot（WIFI/3G/4G Optional），Embedded SIM Slot； | |
Optional Ports：GPIO、LPT、PS/2 (Standard version doesn’t include these ports) |
welcome to consult to embedded Core I5 4300U industrial pc to get more details,Jessie Wang can provide more help for you
