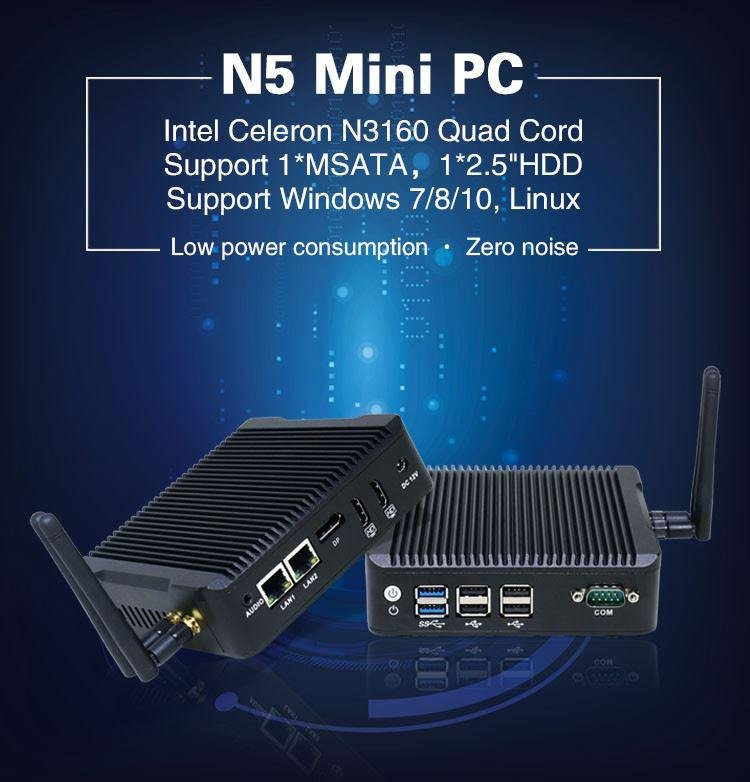

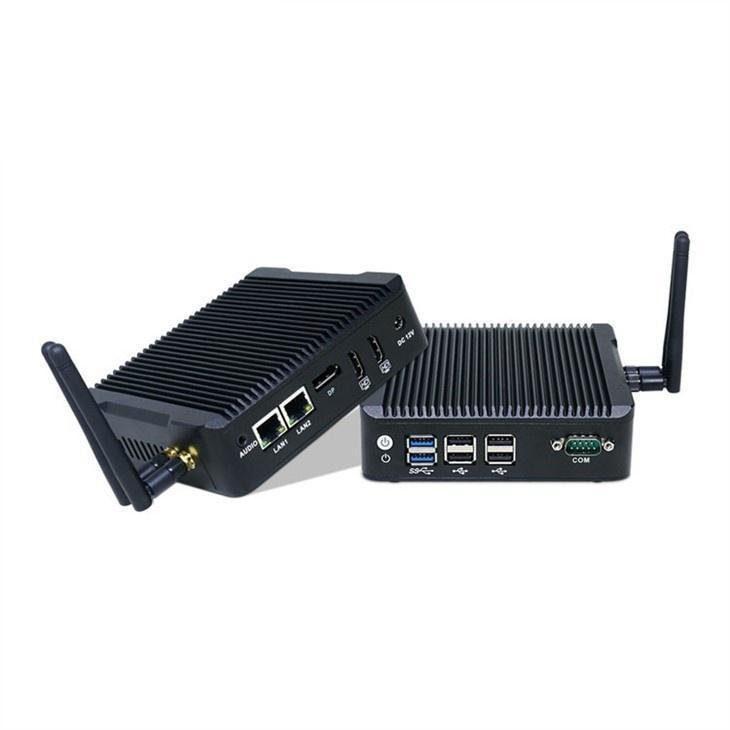

Celeron N3160 Pentium N3700 Mini PC
Features:
- All aluminum structure, fanless design;
- Onboard Intel Celeron N3160 quad core processor;
- Max. Support DDR3L 8G RAM;
- Support 1*MSATA, 1*2.5" HDD;
- Support synchronous or asynchronous three display;
- Support 4K resolution display;
Cheap Mini PC N3160 Quad Core Fanless Mini Computer with 2HD
Specification | |
Model | N5 |

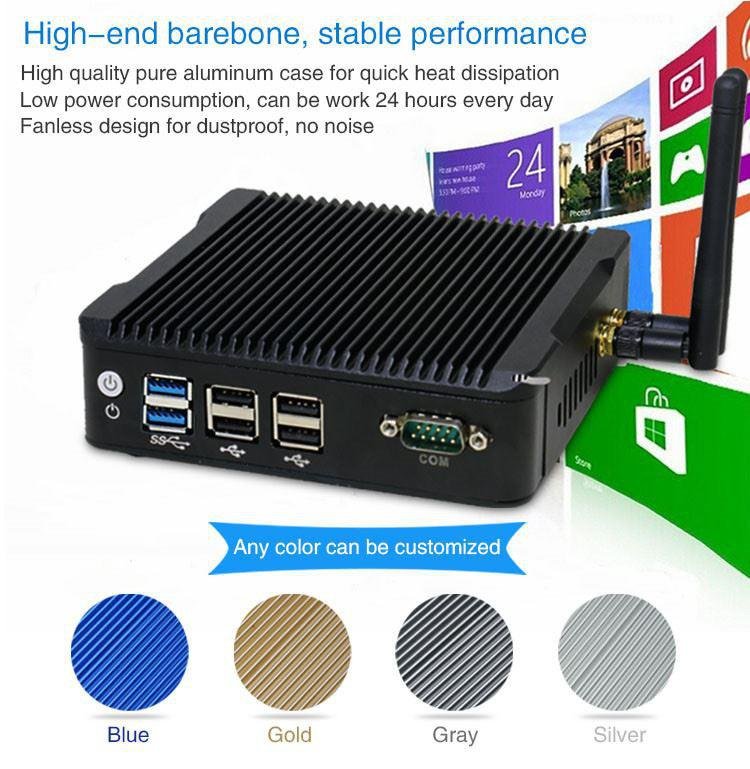

Color | Black (Color can be customized) |
Material | High-quality all aluminum, surface anodic oxidation |
Processor | Intel Celeron N3160 (Quad core quad threading, 2MB Second Level Cache, 1.6 GHz) |
RAM | Support 1*DDR3L 1333/1600MHz SODIMM RAM Slot, Max. Support 8GB |
BIOS | AMI UEFI BIOS |
Display Chip | Integrated Intel HD Graphics |
Display Port | 1*DP, 2*HDMI (Support synchronous and asynchronous three display) |
(DP, HDMI Max. Support Resolution: 3840×2160 @ 30Hz) | |

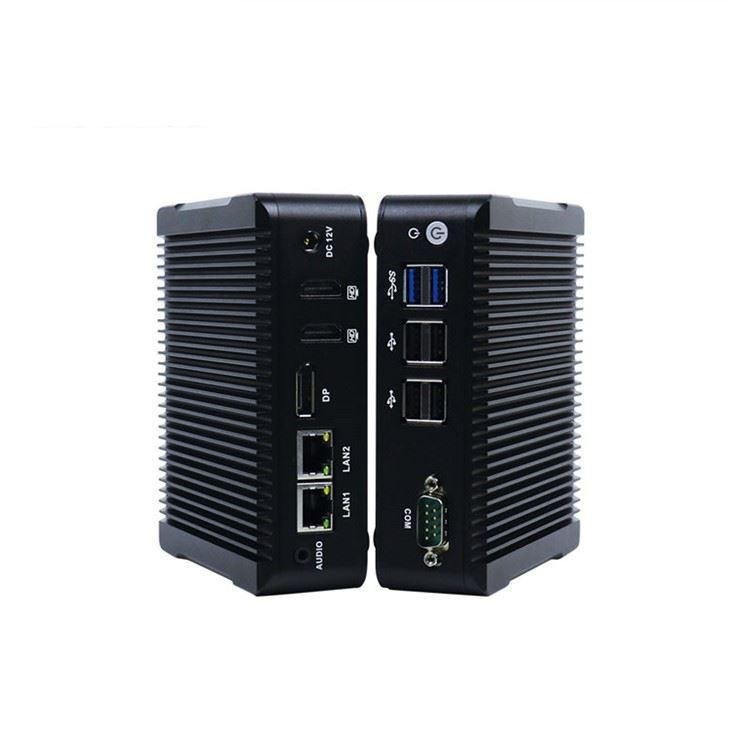

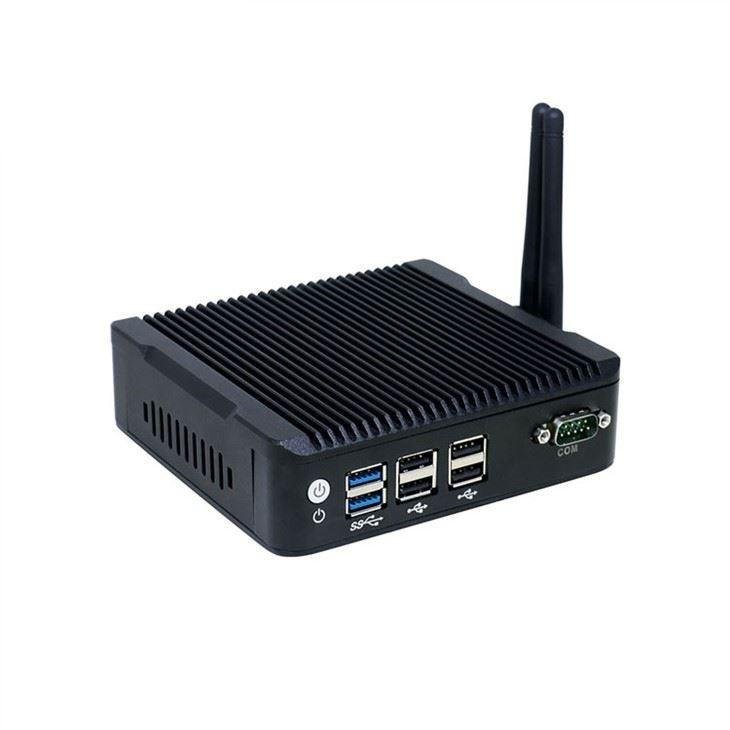

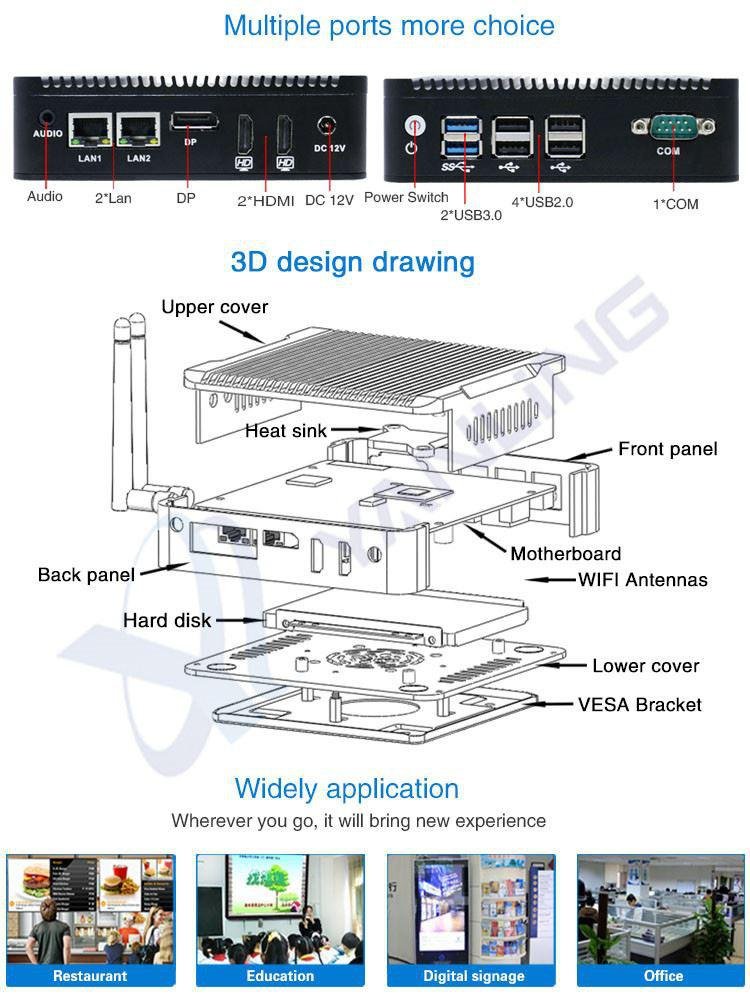

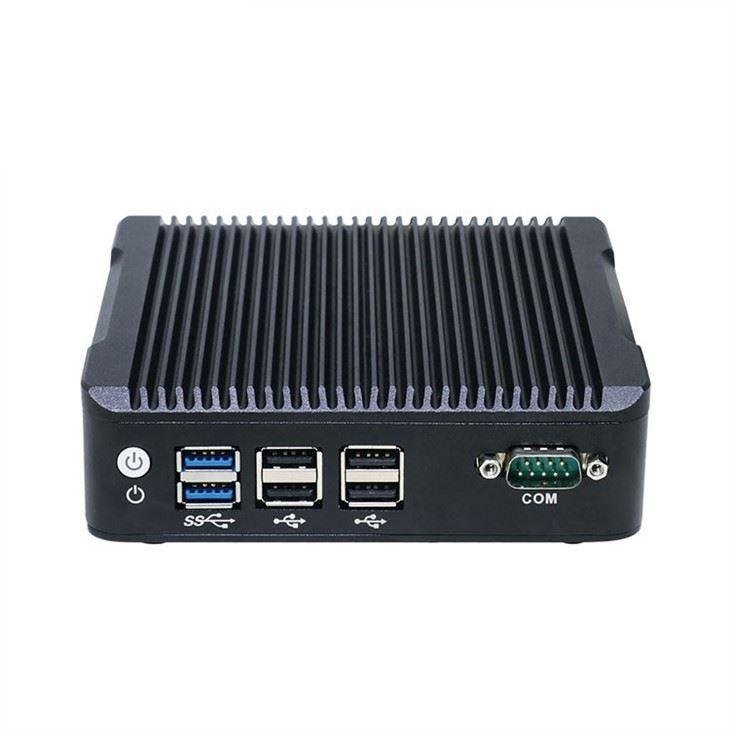

Front I/O | 1*Power Switch, 2*USB3.0, 4*USB2.0, 1*RS232 COM |

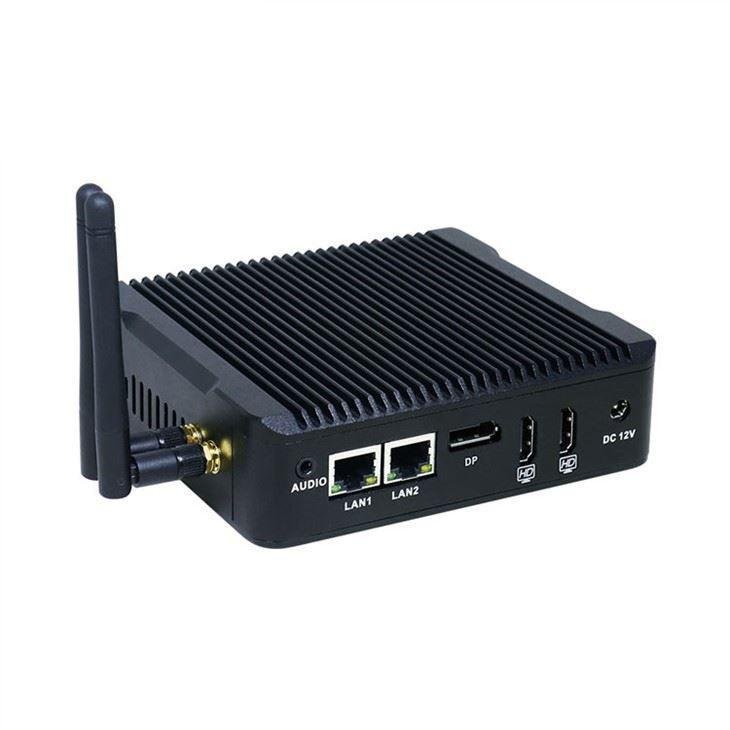

Rear I/O | 1*Audio, 2*RJ45 LAN, 1*DP, 2*HDMI, 1*DC Input |

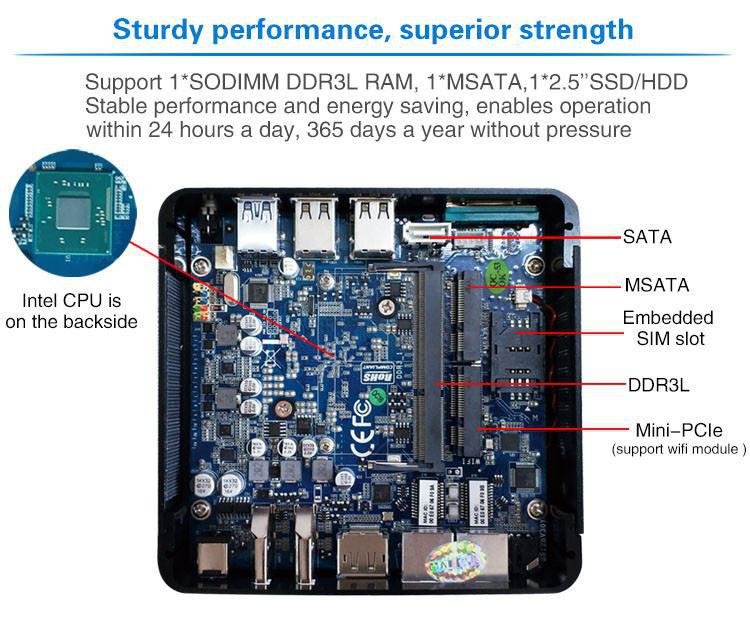

Expansion Slot | Support 1*MINI PCIE Slot (Support MSATA) |
Support 1*MINI PCIE Slot (WIFI/3G/4G Optional), Embedded SIM Slot | |
Network | 2*10/100/1000M RTL8111E 1000M LAN |
Storage | 1*MSATA, 1*2.5" HDD |
Input Voltage | Support DC 12V Input |
Other Function | Auto power on when there is electricity, Timing boot, Wake on LAN, PXE boot, Watchdog (0～255 level)(Standard version doesn't set these function) |
Work Temp | 0℃ ～ +50℃ (Commercial HDD), -20℃ ～ +50℃ (Industrial SSD), Surface air flow |
Work Humidity | 5% ～ 95% non-condensing |
Certificates | CE, CCC, FCC Class A, ROHS |

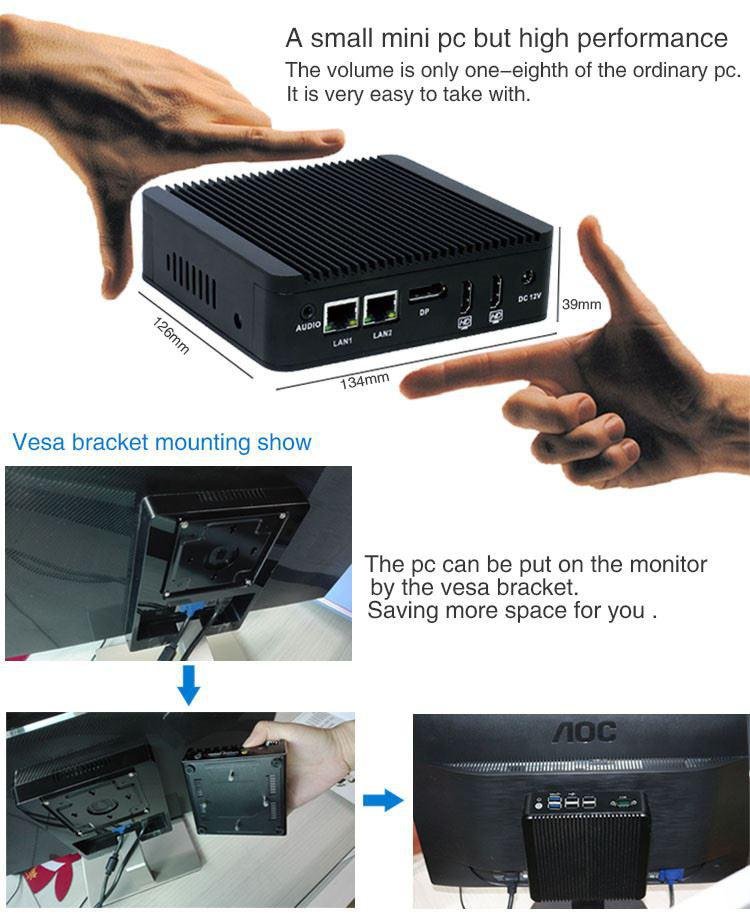

Dimension | 134 * 126 * 38.5mm |
Net Weight | 0.7kg |
Application | Industrial Automation, Medical, Logistics Transportation, Warehouse, Electronic Education etc. |
