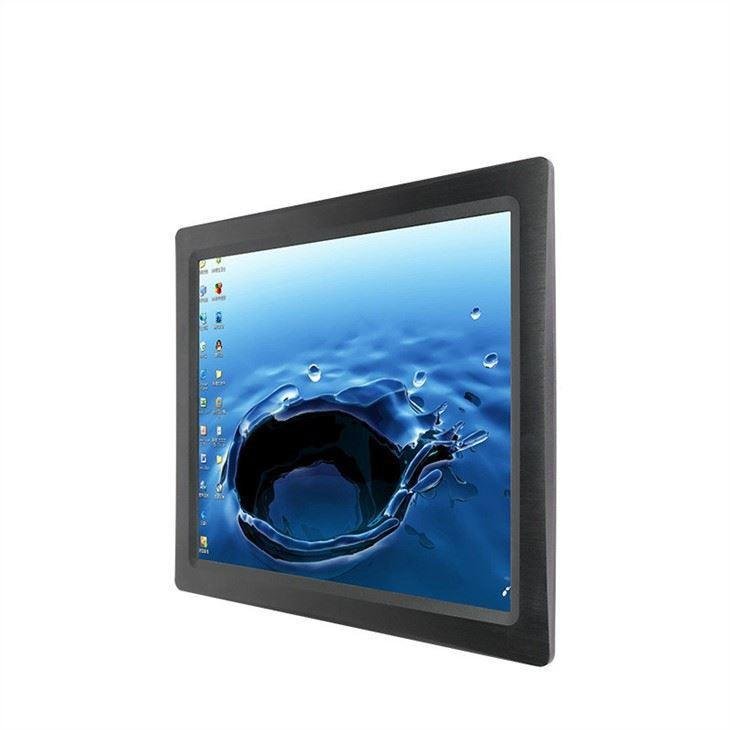

17 Inch J1900 I5 Industrial Panel PC

Model

ITPC-A170

Color

Black (other color can be customized)

Material

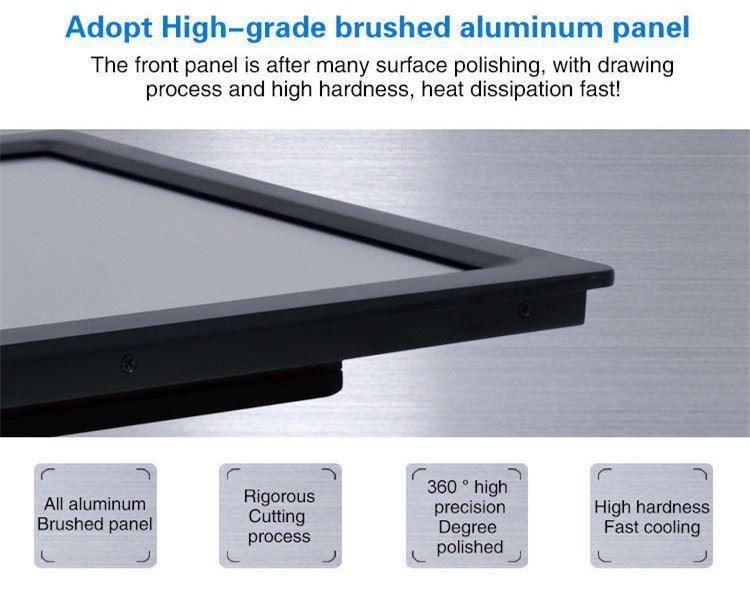

Pure aluminum

Processor

Intel Celeron J1900 (Quad-core, four-thread, 2.0Ghz, 2MB cache, TDP: 10W)

Intel Core i5 4210U (Dual-core four-thread, 1.7 Ghz, Turbo: 2.7Ghz, 3MB cache)

Intel Core i5 6360U (dual-core, four-thread, 2.0 Ghz, Turbo: 3.1Ghz, 4MB cache)

Chipset

Intel CPU integrated chip

Memory

J1900 and i5 4210U: 1* SODIMM DDR3L 1333/1600, MAX: 8GB

Core i5 6360U: 2* SODIMM DDR3L 1333/1600, MAX: 16GB

BIOS

64Mb Flash ROM

Display Chip

Intel Celeron J1900: Integrated Intel HD Graphic

Intel Core i5 4210U: Integrated Intel HD Graphic 4400

Intel Core i5 6360U: Integrated Intel Iris Graphics 540

Display Port

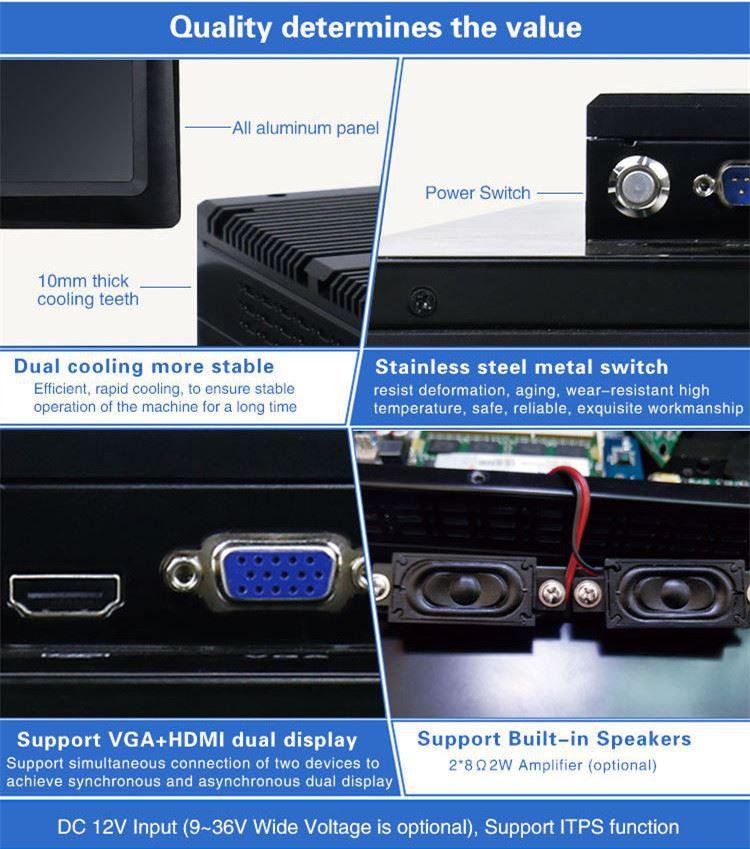

1* VGA, 1* HDMI, 1* LVDS (Support synchronous and asynchronous display)

Storage

Support 1* MSATA, 1* 2.5 inchs SATA

Expansion

Support 1* Mini PCIE (WIFI/BT/3G/4G is optional), Embedded Sim Slot

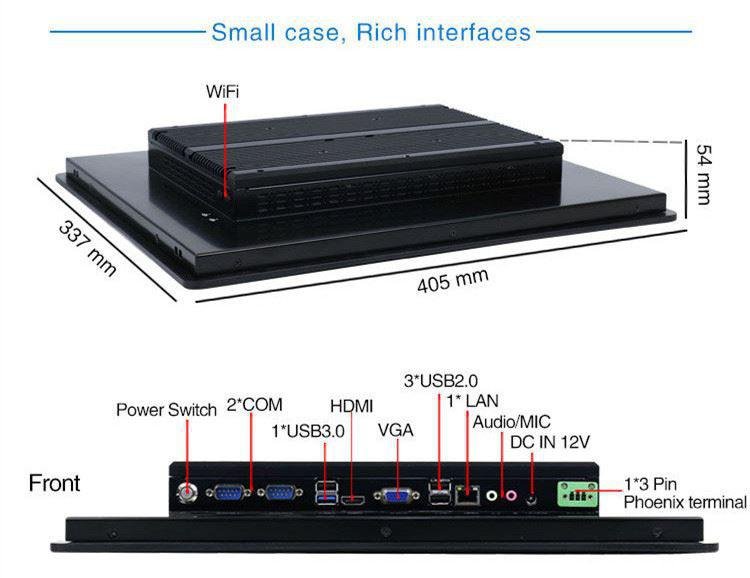

I/O

1*VGA, 1*HDMI, 2* RS232 (6*COM is optional, COM3 support RS422/485)
1* I211AT 1000M Lan (dual Lan is optional) 2* USB3.0, 2* USB2.0 (J1900: 1*USB 3.0)

1*DC, 1*3Pin Power connector, 1*Mic, 1*Line Out

LCD

Size: 17 inchs TFT-LCD

Ratio: 4:3; Resolution: 1024 * 768

Brightness: 250 cd/m²; View Angle: Full angle

Touch Screen

Resistance Touch Screen (Single Touch), Life Time > 50 million

Speaker

2* 8Ω2W speaker

Power Supply

DC 12V (DC 9～36V is optional)

Work Temp

0℃~ +50℃(mechanical hard disk), -20℃ ~ +60℃ (solid state hard disk), Air flow on the surface

Work Humidity

0% ～ 95% Non-Condensing

Dimension

405 * 337 * 54 mm

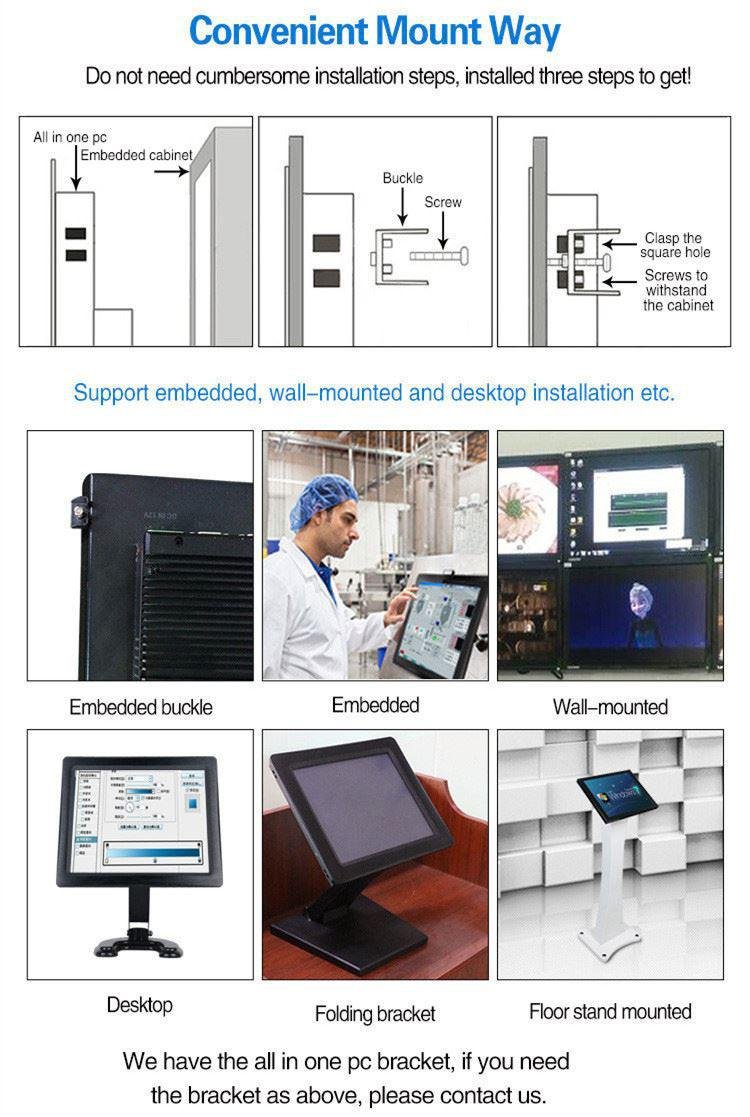

Embedded Install

390 * 321 mm

Weight

5.6kg

Application

Automation, Medical, transportation, Warehouse, electric education etc
