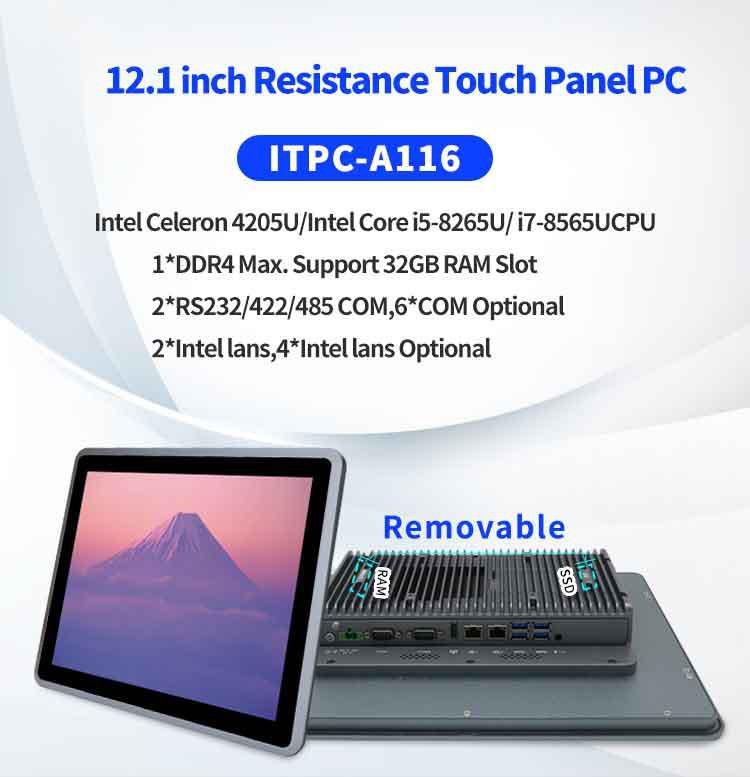

12.1 Inch Industrial Panel PC Windows 11
Features:
Adopt Aluminum alloy chassis,12.1 inch fanless panel PC
Intel 8th core i5/i7 Quad core industrial Panel PCs
Support TPM2.0,Windows 11 OS
6*COM Optional,2*RS232/422/485 COM
Product Overview
ITPC-A116 is a fanless resistive touch industrial panel pc, the panel pc adopts Intel Core i5/ i7 quad-core processor, supports Windows 10,Windows 11, Linux operating systems, the hard disk supports M.2 and 2.5-inch hard disk, which is very convenient to use.

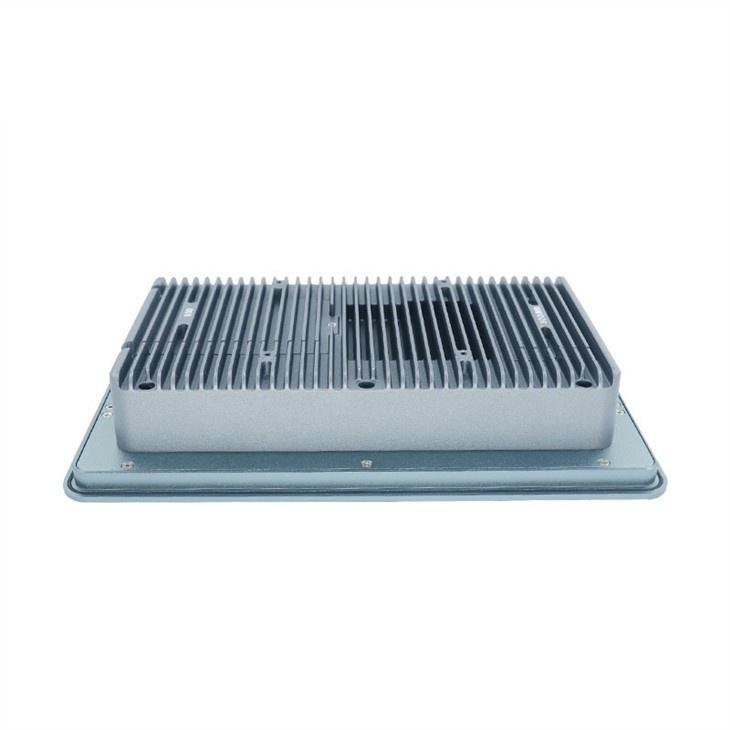

The touch industrial panel pc is formed by a pure aluminum case, fanless structure, good dustproof, heat dissipation, anti-vibration and EMC performance, high system reliability, and strong environmental applicability.
Specification
Model | ITPC-A116 |
Color | Titanium gray (Color can be customized) |
Material | Aluminum alloy chassis |
Processor | Intel Celeron 4205U(Dual core dual threads,1.8Ghz,2MB Cache); |
| Intel Core i5-8265U(Quad core eight threads,1.6Ghz,Max turbo 3.9Ghz,6MB Cache); | |
| Intel Core i7-8565U(Quad core eight threads,1.8Ghz,Max turbo 4.6Ghz,8MB Cache); | |
RAM | Support 1*DDR4 2133/2400 SODIMM Memory Slot,Max. Support 32GB |
BIOS | AMI EFI BIOS |
Display Chip | Integrated Intel UHD Graphics |
Display Port | 1*HDMI，1*LVDS(Support synchronous and asynchronous dual display) |

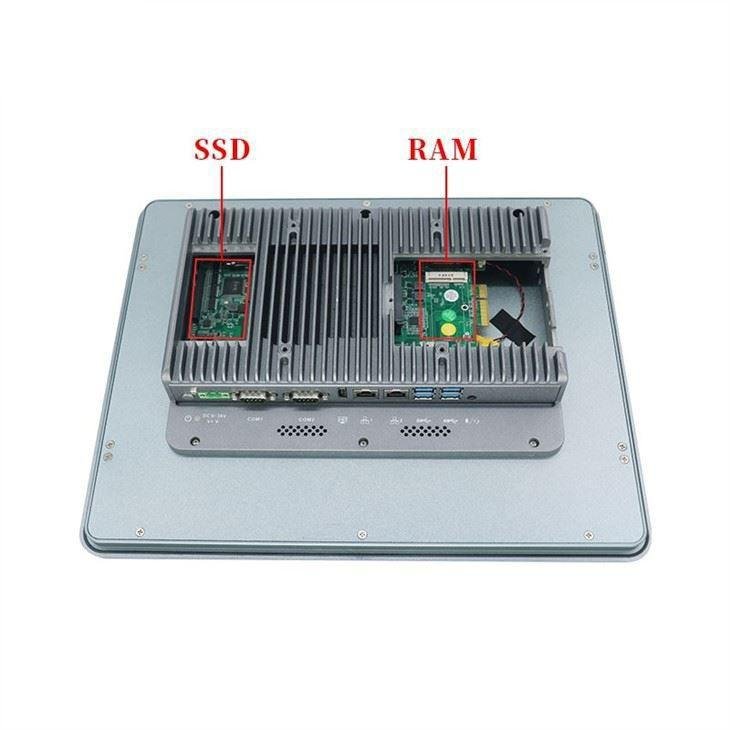

Storage | Onboard 1*M.2 2280 slot(SATA Protocol),1*2.5” HDD，Support RAID 0/1 |
Expansion Slot | Support 1*Mini PCIE slot(Support WIFI/Bluetooth/3G/4G Optional,embedded SIM slot) |

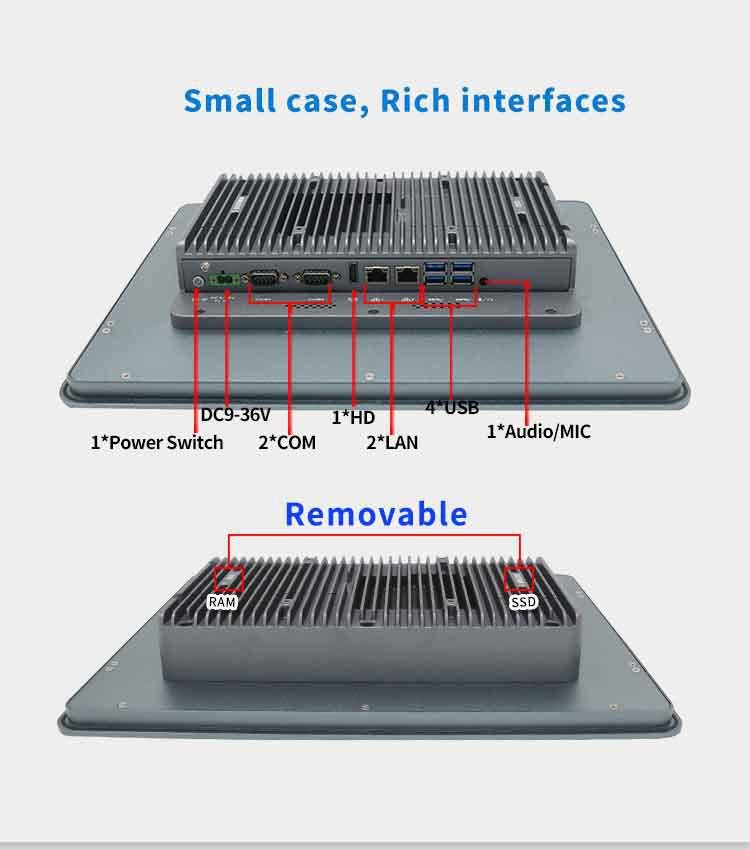

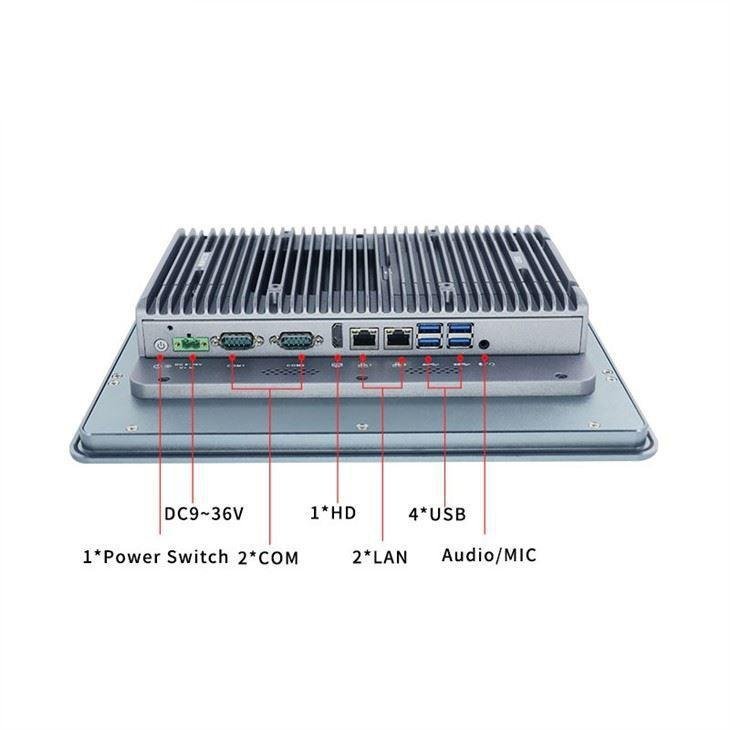

I/O | 1*HDMI,2*COM(COM1&COM2 RS232/RS422/RS485 Optional,6*COM Optional),1*Power Switch |
1*2Pin power supply phoenix connector,1*Audio (Support Mic and Speaker at the same time),4*USB3.0,2*Intel 1000M LAN（4*LAN Optional） | |
Other Function | TPM2.0 security encryption、Auto power on when there is electricity、Timing boot、Wake on LAN、PXE boot、Watchdog（0～255 level）(Standard version doesn’t set these function) |
Expansion Function | GPIO（8 Input 8 Output）、2*LAN、4*COM、2*USB2.0 （Standard version doesn’t include these ports） |

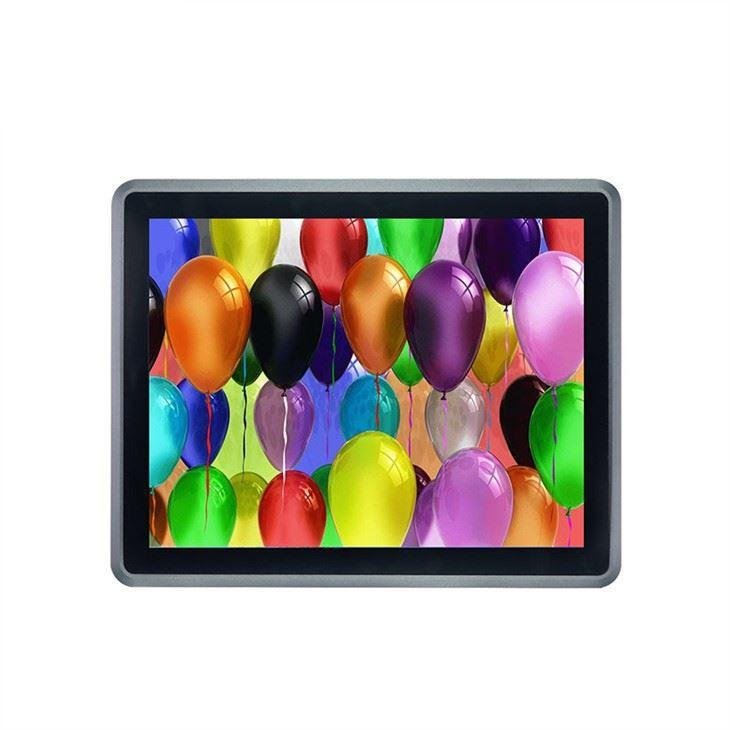

LCD | Size：12.1 inch TFT-LCD; Brightness:350 cd/m2; Viewing Angle:Full Angle Ratio:4:3; Resolution:1024 * 768; |
Touch Screen | Industrial grade multi-touch resistance touch screen，Life Time: more than 50000 Thousand Times; |
Speaker | Two 8-ohm 2-watt speaker |
Input Voltage | DC 9V ～ 36V wide voltage Input，support positive pole and negative electrode connect reversely protection; |
Work Temp | 0℃ ～ +50℃（Commercial），-20℃ ～ +60℃（Industrial SSD），Surface air flow |
Work Humidity | 5%～95% non-condensing |

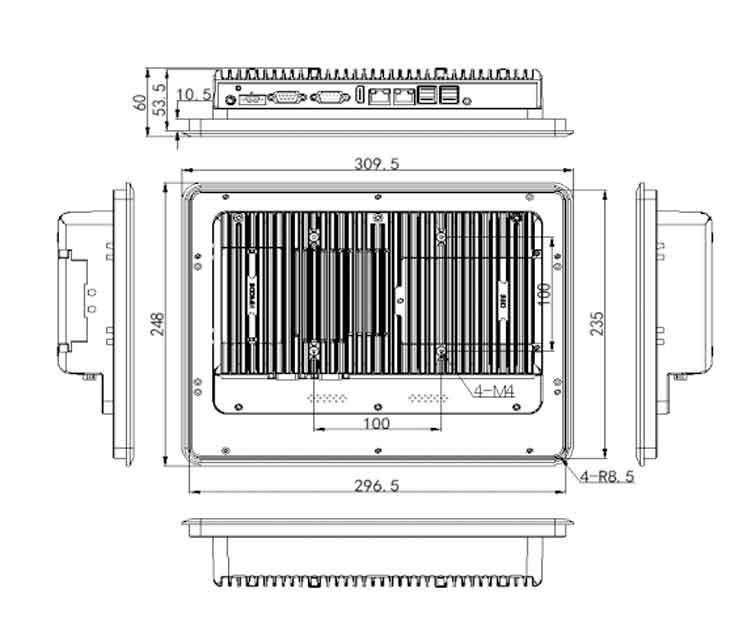

Dimension | 309.5 * 248 * 60 mm |
Embedded Installation | 298.5 * 237 mm |
Weight | 2.9 kg |
Transportation
The packaged 12.1 Panel PC supports land, sea, and air transportation to any destination.
Warm reminder: It must not be installed in open cabins and carriages during long-distance transportation, and must not be stored in open-air warehouses during mid-transit. , During transportation, it is not allowed to ship with flammable, explosive, or corrosive items in the same vehicle (or other means of transportation), and the product is not allowed to be wetted by rain, snow or liquid substances and wet by snow or liquid substances And mechanical damage.
Storage
The 12.1 inch Industrial pc should be stored in the original packaging box during storage. The ambient temperature of the warehouse where the product is stored is 0℃～40℃, and the relative humidity is 20%～85%. All kinds of harmful gases, flammable and explosive products and corrosive chemicals are not allowed in the warehouse, and there is no strong mechanical vibration, shock and strong magnetic field. The packing box should be cushioned at least 10cm away from the ground and at least 50cm away from the wall, heat source, cold source, window or air inlet.
Beware of the risk of damage to the equipment! When transporting the machine in cold weather conditions, be aware of extreme changes in temperature. In this case, make sure that no water droplets (condensation) are formed on or inside the device. If condensation forms on the device, wait at least 12 hours before turning on the device.
FAQ
Question: Can you put my brand name (logo) on these products?
Answer: Yes,.We can support OEM/ODM service, the process of customization is following:
1:provide your specific requirement.
2:our design engineer draw the design draft.
3:you confirm the design draft.
4. we start produce it.
Question: How much do I need to pay for your OEM servise?
Answer: You should pay extra 500$,but we will return the 500$ to you when your order over 100 pieces.
Question: What payment method do you accept?
Answer: T/T,Western Union,PayPal.
Question: What is the Minimum Order Quantity(MOQ)?
Answer: We can sell one piece sample for your test.
Question: What is the lead time of your products?
Answer: 1-3 days for one sample, 15 working days for a large quantity.
If interested in 12.1 inch Fanless Resistance Touch Panel PC, pls contact us : jessie@iwilltech.cn
