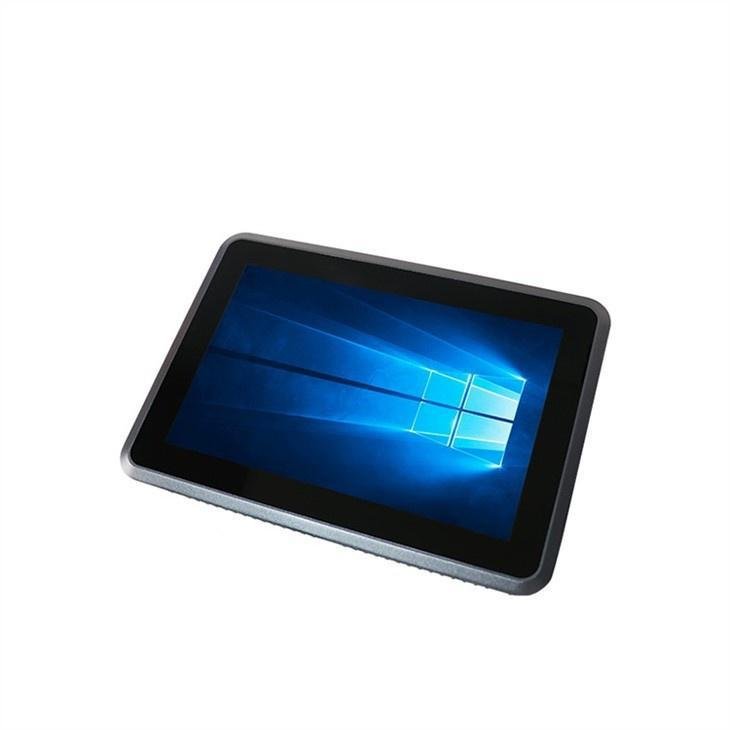

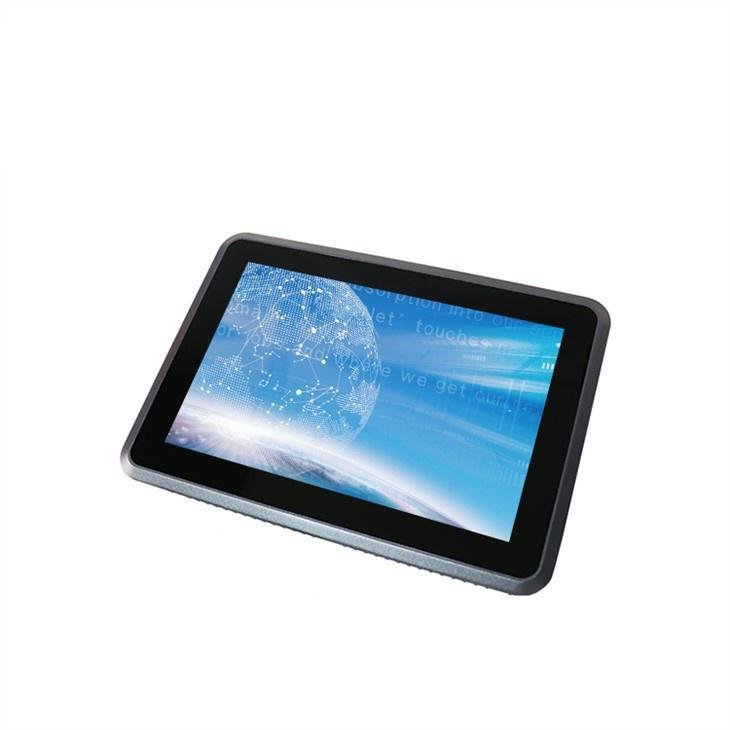

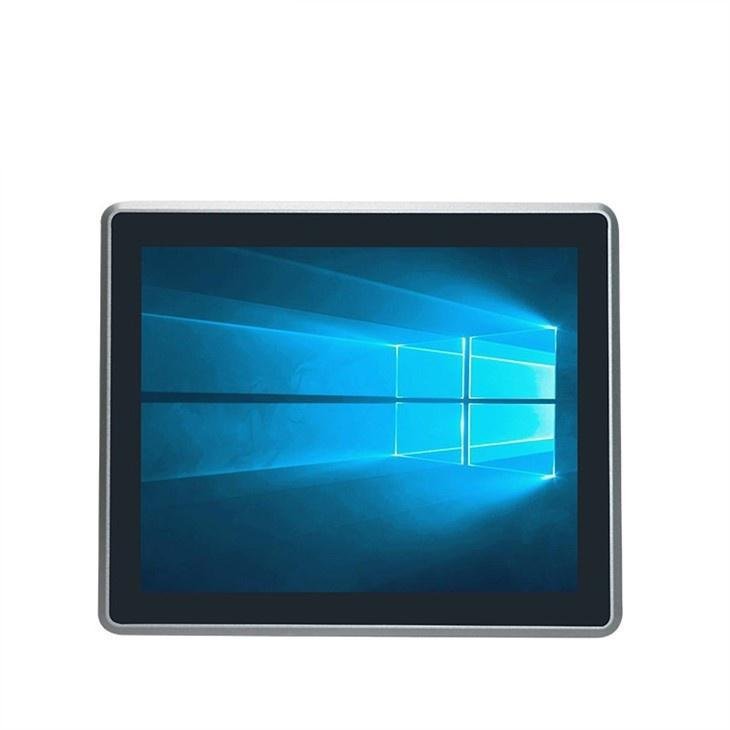

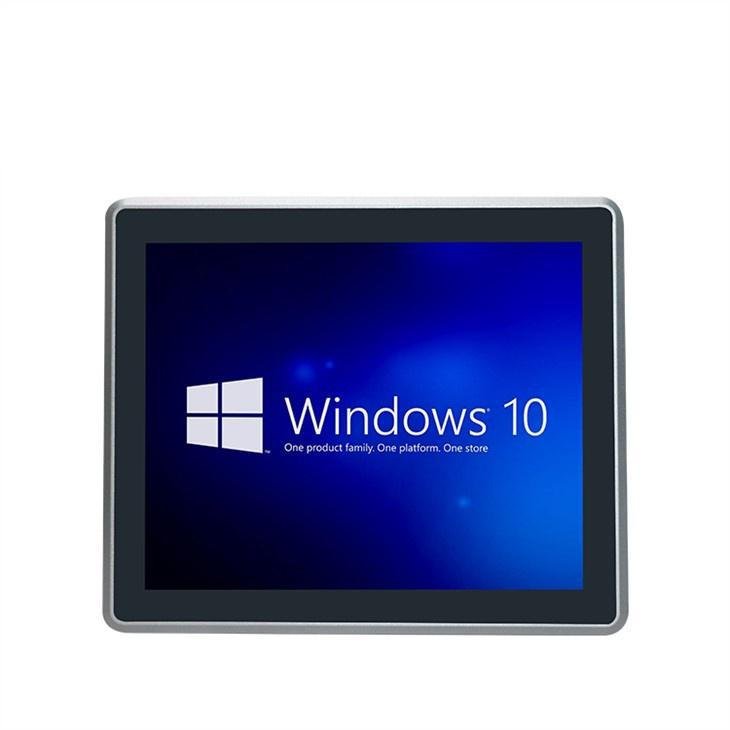

10.1 Inch Capacitive Industrial Panel Pc

Product Overview

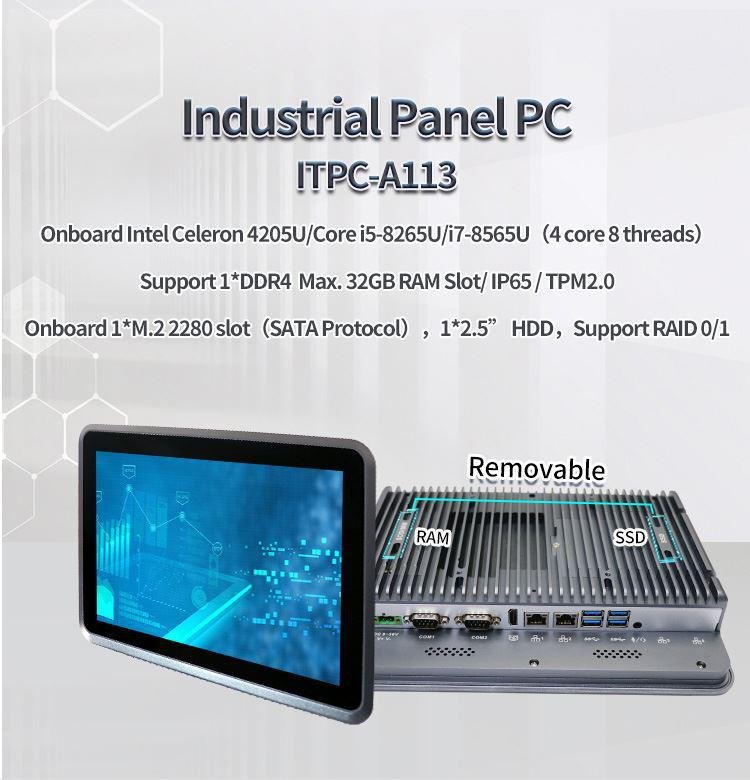

ITPC-A113 is a 10.1 inch capacitive industrial panel pc,the industrial panel pc ,adopts Intel Whiskey Lake U Series processor with windows 10/Linux;The Memory support 2*RS422/RS485 COM Optional,6*COM Optional,which wide range of uses.

Specification

1,Product name：10.1 inch capacitive industrial panel pc

2,Material：Aluminum alloy chassis

3,Processor：Intel Celeron J6412 4205U,Core i3 i5 i7 optional;

4,RAM：Support 1*DDR4 2133/2400 SODIMM Memory Slot,Max. Support 32GB

5,BIOS：AMI EFI BIOS

6,Display Chip and Display Port:AMI EFI BIOS;1*HDMI,1*LVDS(Support synchronous and asynchronous dual display)

7,Storage:Onboard 1*M.2 2280 slot(SATA Protocol),1*2.5" HDD,Support RAID 0/1

8,Expansion Slot:Support 1*Mini PCIE slot(Support WIFI/Bluetooth/3G/4G Optional,embedded SIM slot)

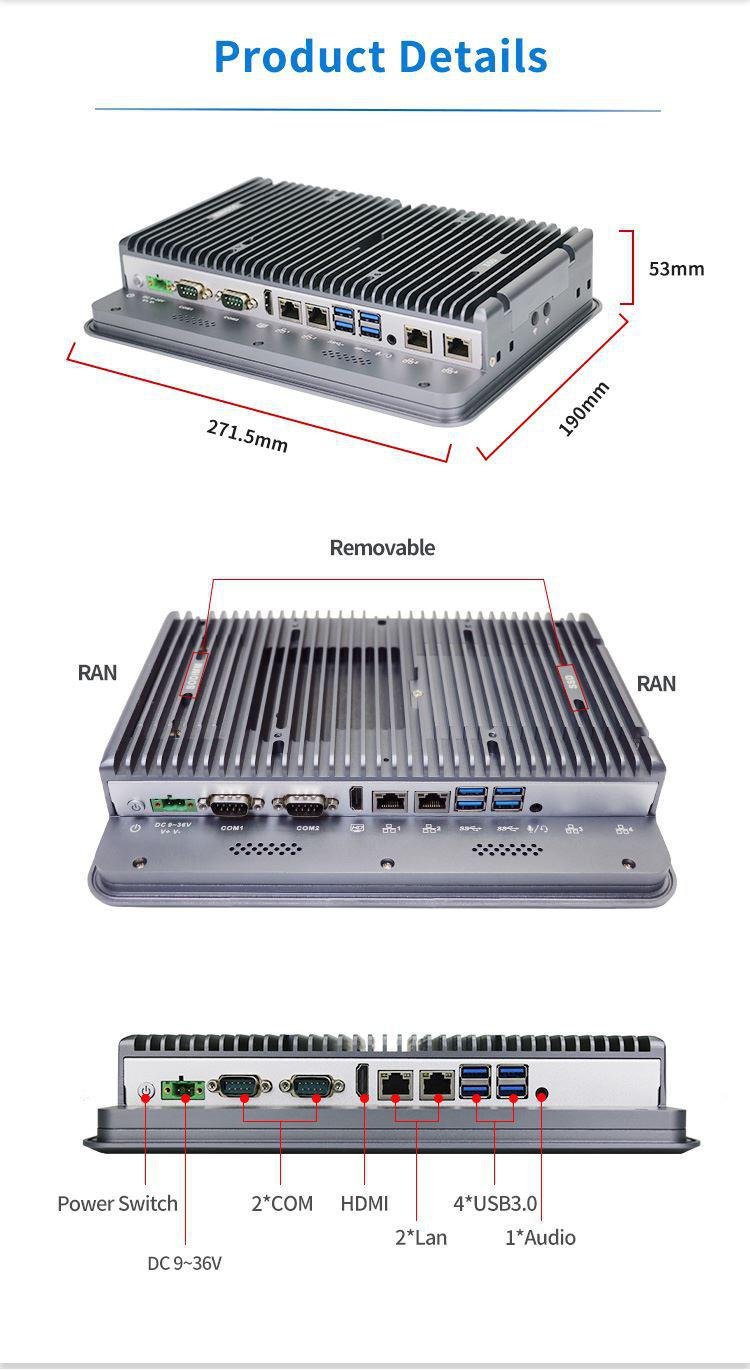

9,I/O:1*HDMI,2*COM(COM1,COM2 RS232/RS422/RS485 Optional,6*COM Optional),1*Power Switch

10,Expansion Function：GPIO(8 Input 8 Output),2*LAN,4*COM,2*USB2.0 (Standard version doesn't include these ports)

Smrt touch sensitive experience:

High quality industrial touch screen ,over 50 million times clicking longevity Default capacitive touch screen,stable perfomance and strong pollution resistance.Sensitive touch,quick response,give you an extraordinary exprience.

FAQ:

Question: Can you put my brand name (logo) on these products?

Answer: Yes,.We can support OEM/ODM service, the process of customization is following:

1:provide your specific requirement.

2:our design engineer draw the design draft.

3:you confirm the design draft.

4. we start produce it.

Question: How much do I need to pay for your OEM servise?

Answer: You should pay extra 500$,but we will return the 500$ to you when your order over 100 pieces.

Question: What payment method do you accept?

Answer: T/T,Western Union,PayPal.

Question: What is the Minimum Order Quantity(MOQ)?

Answer: We can sell one piece sample for your test.

Question: What is the lead time of your products?

Answer: 1-3 days for one sample, 15 working days for a large quantity.

If interested in 10.1 inch Touch Panel PC, pls contact us !
