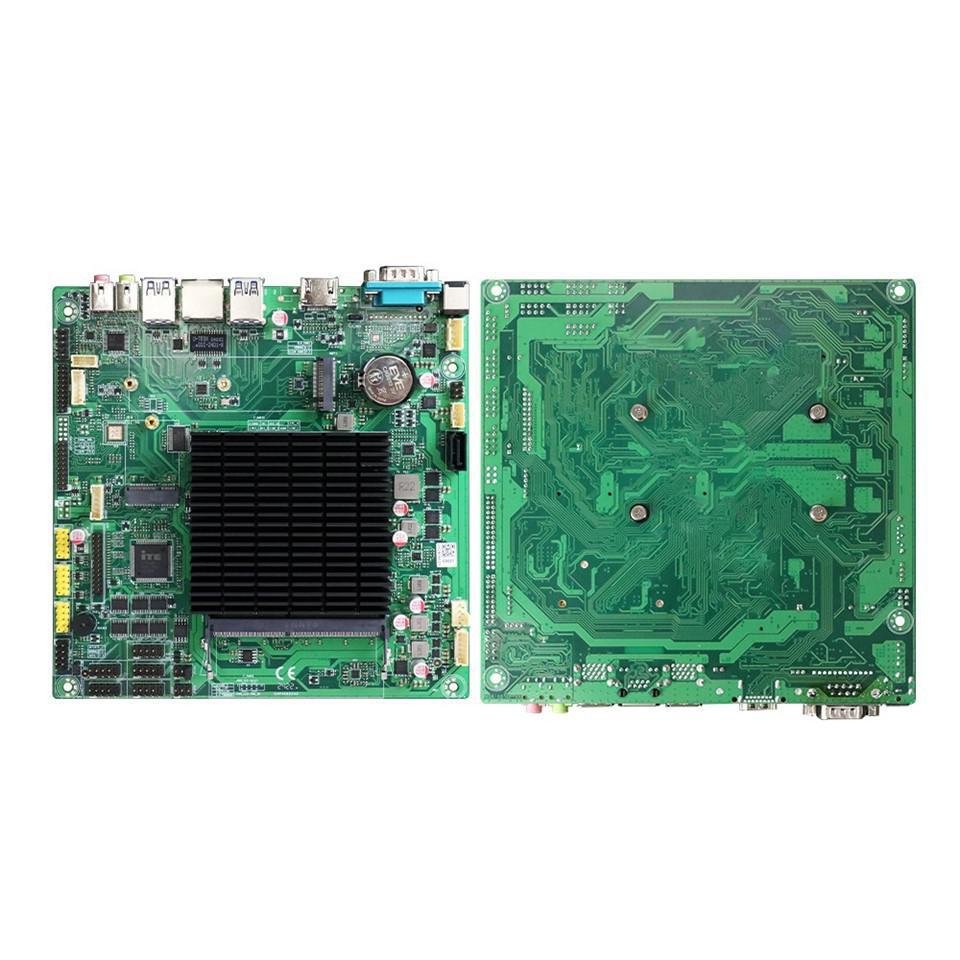

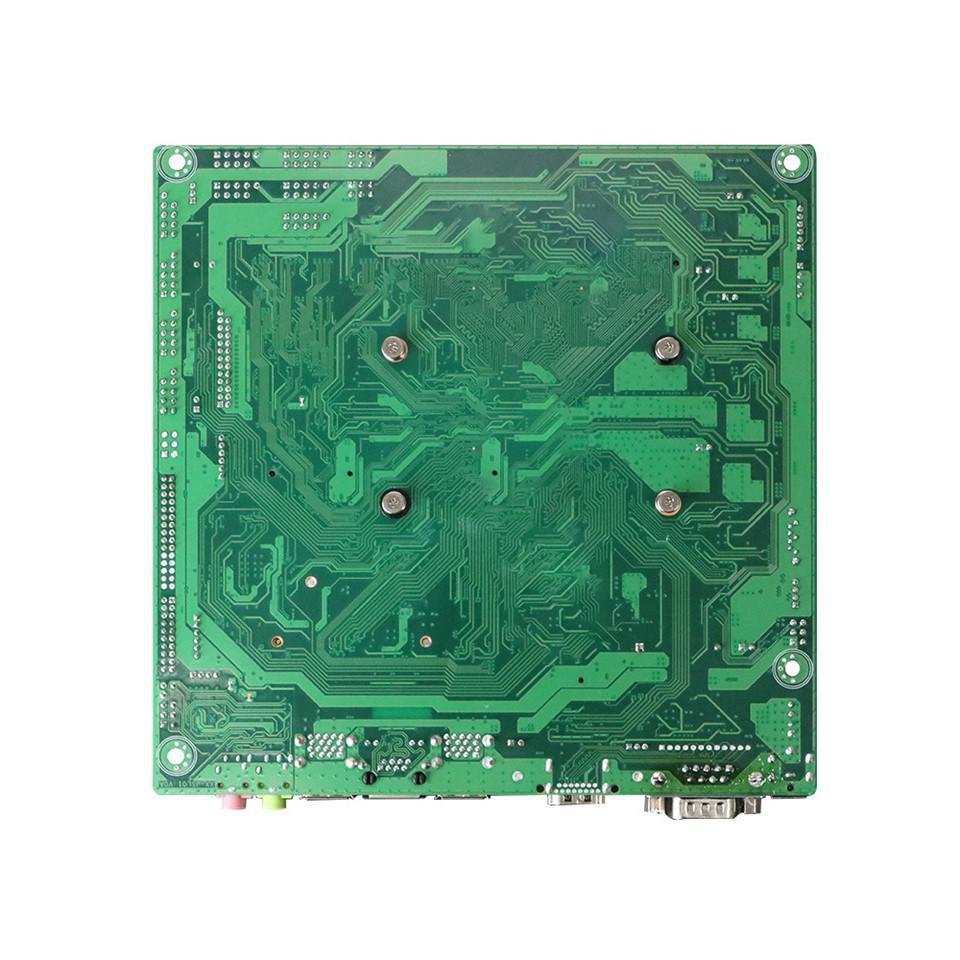

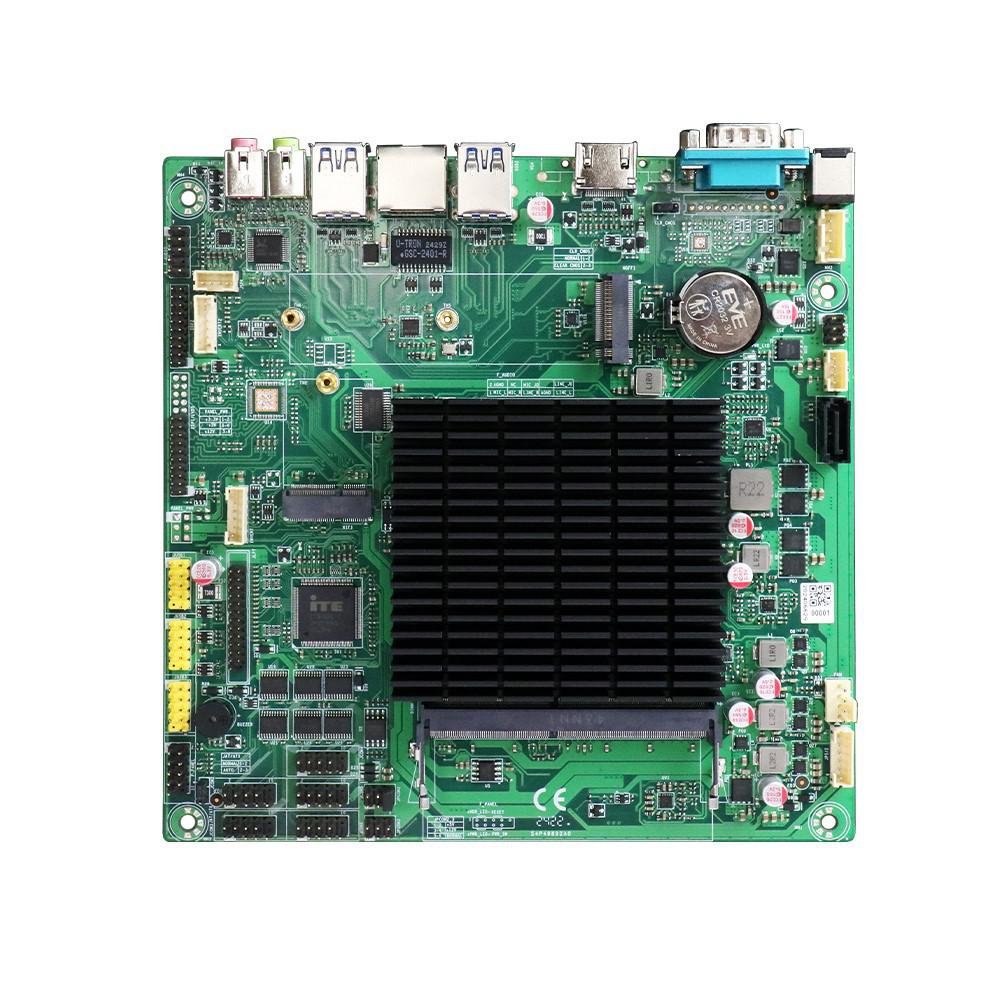

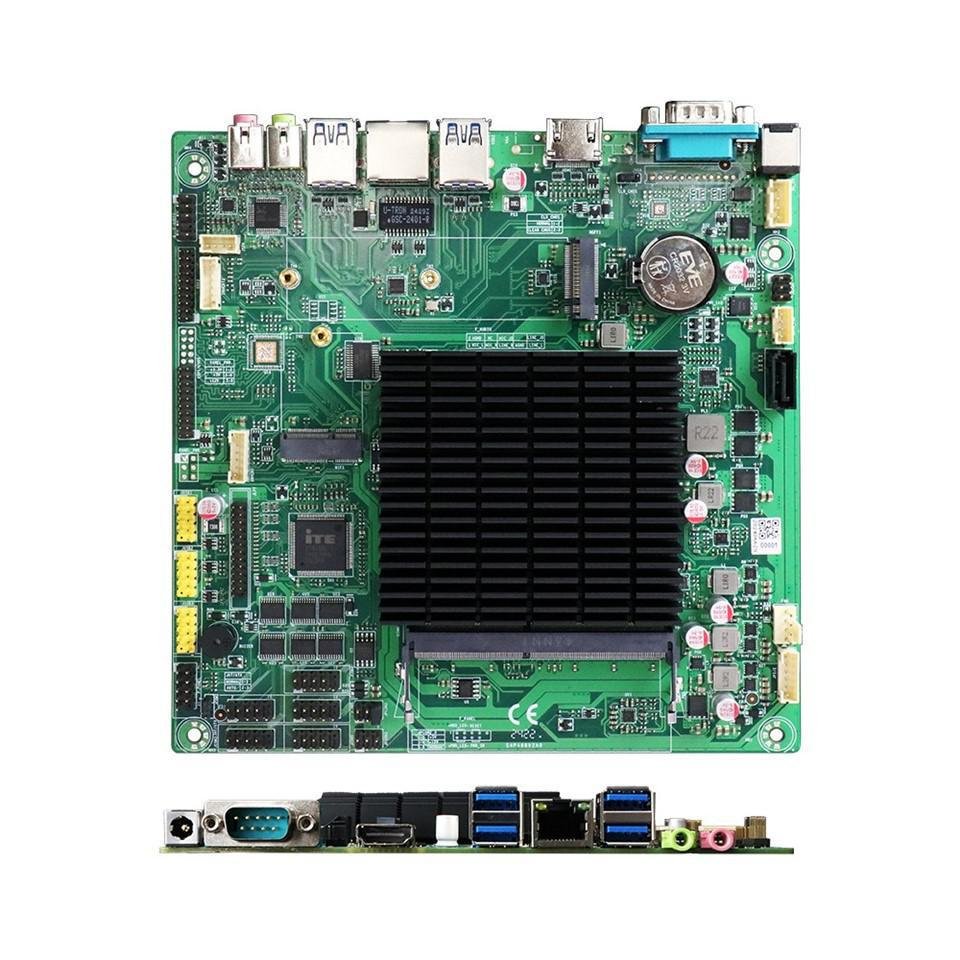

HM-N5095D16-UHL
- Adopt Intel® Jasper Lake processor
- Intel® UHD Graphics
- 1 × DDR4 2933MHz SO-DIMM Ram, max 16GB
- VGA, LVDS, HDMI support triple display
- 4 ×USB3.0, 6 ×USB2.0
- 6 ×COM, 1 ×LPT, 1 ×PS/2
- 1 × RJ45 LAN (RTL8111H PCIe bus network card chip), 1 × Mini-PCIe
- 1 × MSATA, 1 × SATA
- Support watchdog, network wake-up and diskless boot.
- Suitable for retail, self-service, all-in-one machine and industrial control industries
HM-N5095D16-UHL
It's a Mini Itx Motherboard of 170x170mm Size, Is The World's Smallest Native X86 Platform.
◆Adopt Intel® Jasper Lake processor
◆Intel® UHD Graphics
◆1 × DDR4 2933MHz SO-DIMM Ram, max 16GB
◆VGA, LVDS, HDMI support triple display
◆4 ×USB3.0, 6 ×USB2.0
◆6 ×COM, 1 ×LPT, 1 ×PS/2
◆1 × RJ45 LAN (RTL8111H PCIe bus network card chip), 1 × Mini-PCIe
◆1 × MSATA, 1 ×SATA
◆Support watchdog, network wake-up and diskless boot.
◆Suitable for retail, self-service, all-in-one machine and industrial control industries
HM-N5095D16-UHL product parameters
| CPU | Intel® Celeron® N5095 4C/4T 2.0GHz( Burst 2.9GHz) 4M |
| Memory | 1x DDR4 SO-DIMM 2933MHz Single Channel,Max 16GB |
Graphics | Intel® UHD Graphics |
VGA | 1 × DB15(Female hole) Port ,1 ×Wafer |
H-D-M-I | 1 × Port |
EDP1/LVDS | 1 × Header(LVDS) |
Multi Display | Triple Display |
| Storage | 1 ×SATA, 1 × MSATA |
COM | 6 × Port, COM2 support RS232/RS485, COM2 & COM3 support RI/5V/12V optional |
Expansion Slot | 1 × Mini-PCIe , support WIFI/BT 3G/4G |

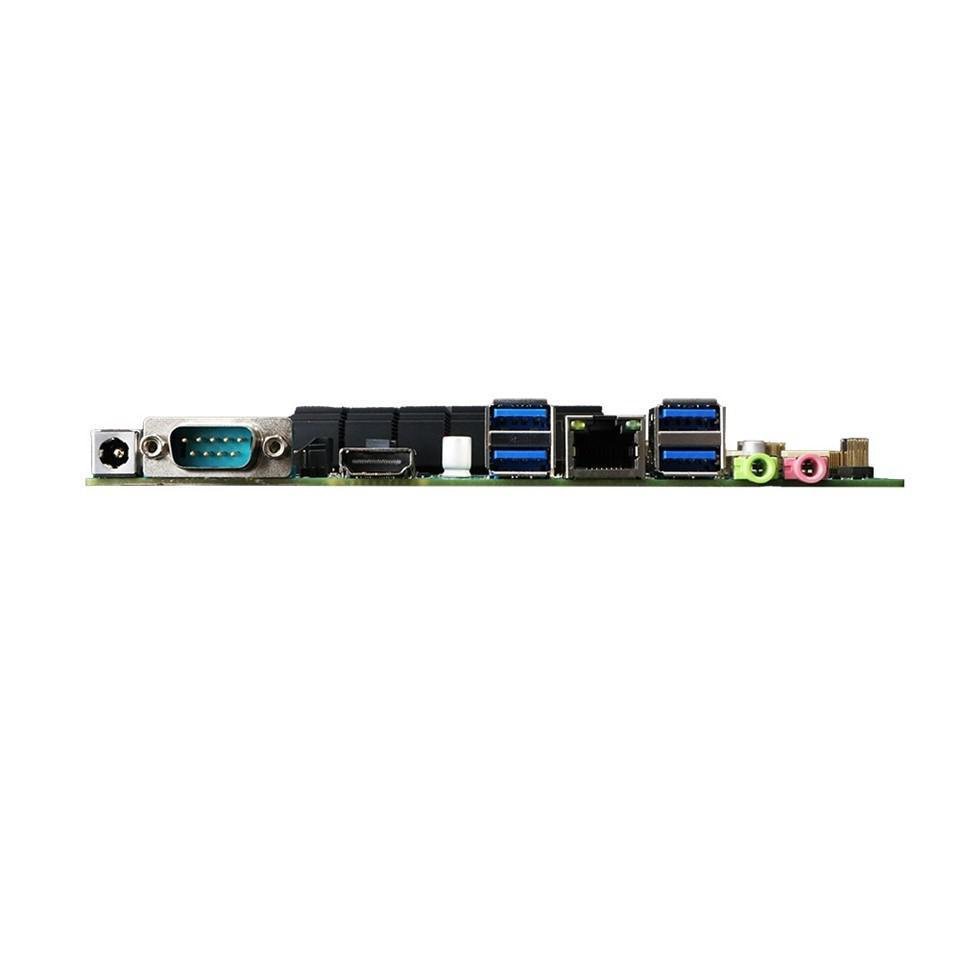

Rear IO | 1 × DC Jack 1 ×H-D-M-I 1 ×VGA 4 ×USB3.0 1 × RJ45 1000M LAN( RTL8111H) 1 × Line-out ,1 ×Mic-in |
| Internal Connector | 1×LVDS,1 ×JVGA 1 ×Mini-PCIe ,1 ×SIM 1 × F_Audio ,1 ×JSPK 6 ×JCOM 1 ×JPS/2 ,1 ×JLPT 3 ×JUSB ,Expandable 6×USB2.0 1 ×SATA ,1 × MSATA 1 × F_PANEL ,1 ×JCASH 1 ×CPU_FAN,1 ×SYS_FAN 1 ×SATA_PWR ,1 × INVERT |
| Dimension | 170× 170mm |
| PWR Input | DC 12V |
| Operation | 0~60℃ , 10%~90%RH ,non-condensing |
| Storage | -25~75℃ , 5%~95%RH ,non-condensing |
