N100 Fanless Embedded System PC
- Intel N100 Fanless Embedded System PC
- Max DDR4 3200 16G memory slot.
- Support 2 RTL8111H1000M Ethernet
- 1 M.2 support NVME 1X or SATA protocol
- 6 COM ports (COM1, 2 optional RS232/485)
- Support Power-on , Wake on LAN,PXE boot, Watchdog.
N100 Fanless Embedded System PC
The IBOX-1326 Fanless Embedded System pc powered by 12th Intel Alder Lake N100 Processor, Max DDR4 3200 16G memory slotSupport 2 RTL8111H1000M Ethernet,1*M.2 support NVME 1× or SATA protocol ,6*COM ports (COM1, 2 optional RS232/485),Support Power-on , Wake on LAN,PXE boot, Watchdog.Fanless system without cooling fan, noiselessness and durability fit for industrial grade field, work as long as 7×24 hours.
N100 Fanless Embedded System PC product parameters
| Products model | IBOX-1326 |
| Color | Metallic gray (color can be customized) |
| Products material | High-quality all-aluminum alloy, hard anodized surface |
| Processor | Intel N100 4 cores 4 threads, turbo 3.4GHz, 6MB cache |
| RAM | 1*DDR4 3200MHz SODIMM memory slot, Max. 16GB |
| Storage | 1*M-Key 2280 slot (support NVME 1× or SATA ), 1 2.5 inch HDD |
| Display Chip | Intel HD Graphics |

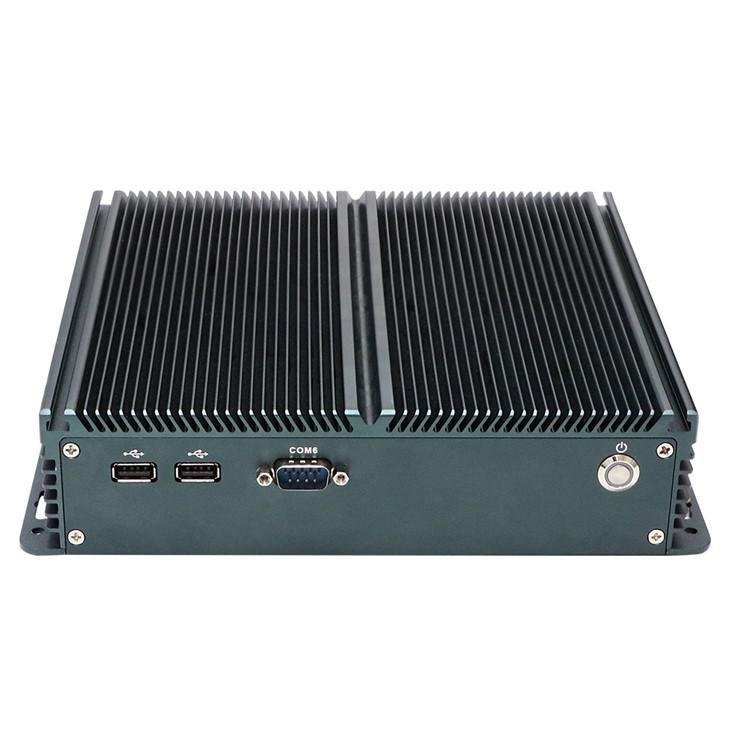

| Front I/O | 1*Power Switch, 2 USB2.0, 1 COM (RS232) |

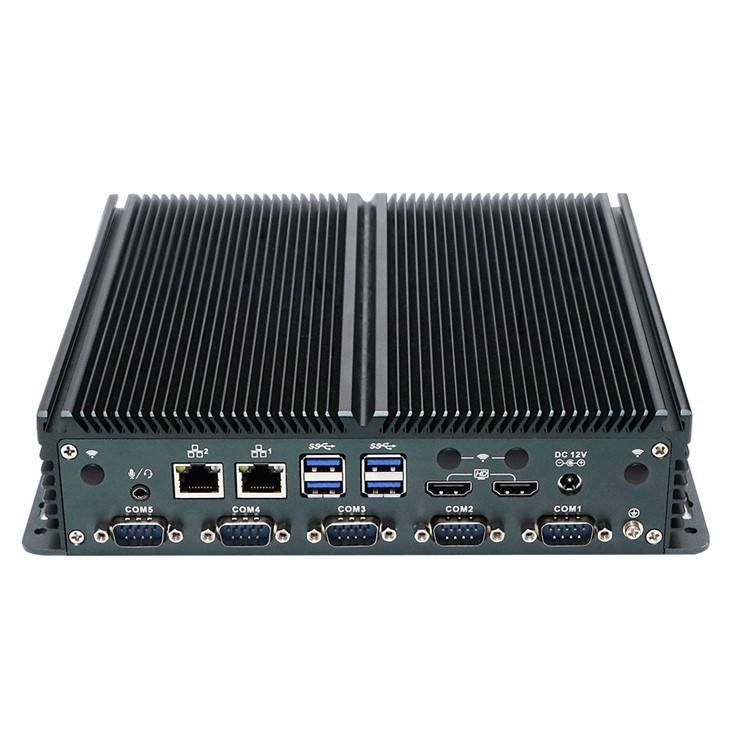

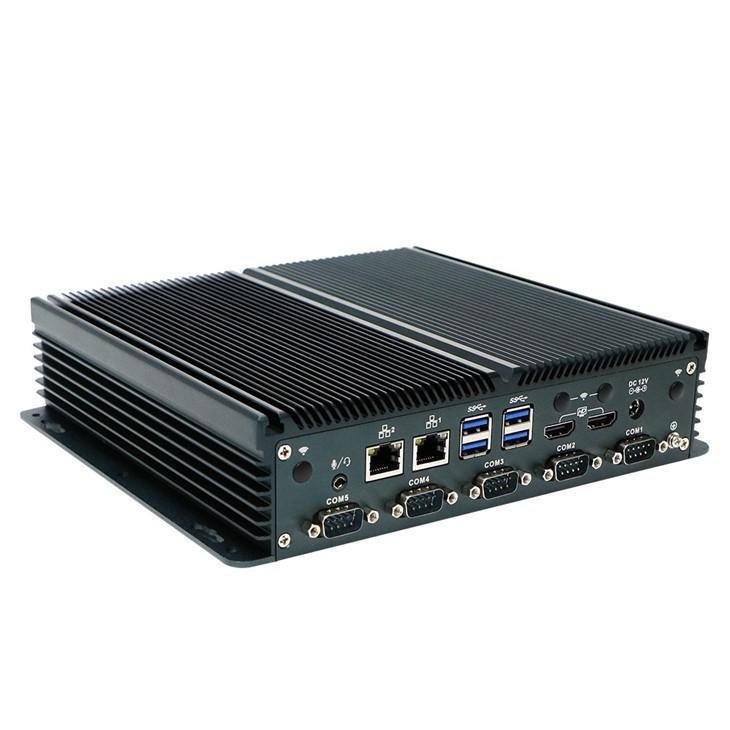

| Rear I/O | 1*2-in-1 Audio, 2*RJ45 Lan, 2*H-D-M-I, 3*USB3.0, 1*USB2.0, 1*DC, 5*COM (COM1, COM2 optional RS232/485 ) |
| Input Voltage | DC12V |

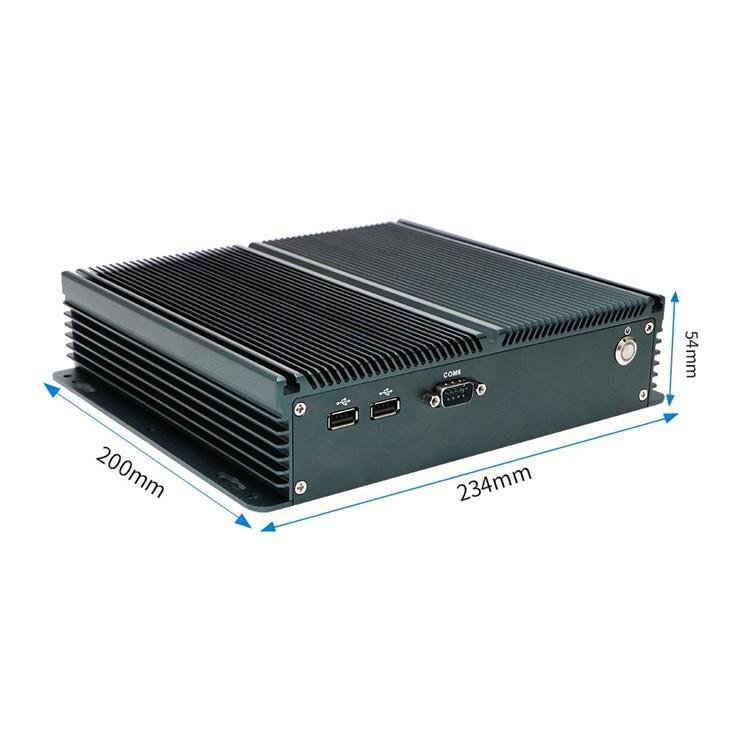

Dimension | 234*200*54mm |
| Net Weight | 1.98kg |
Application
durability fit for industrial grade field
Expressway Toll System
Railway System
Automated Guided Vehicle
Control Center System
