Intel Core I3 I5 I7 Fanless BOX PC
- Intel6 7 8 9 generation Core i3 i5 i7 Processor Fanless PC IPC
- 2*DDR4 2133/2400 SODIMM slot，Max:32GB
- 1*M.2 2280 slot，1*2.5” HDD（2*2.5”HDD Optional）
- 1*VGA，2*HDMI Dual display with Intel HD Graphics 630
- Expansion Port：GPIO（4 Input*4 Output）
- OS：
The IBOX-605 is an fanless industrial pc with Intel® 6/7/8/9 generation Core™ i3/i5/i7 Processor , equipped with 2*DDR4 2133/2400 ram slot,Onboard Intel H310 chipset,Powered by Intel HD Graphics 630 Display Chip to enhance the performance of the visual display.1xVGA,Dual HDMI ,bringing you an enjoyable video browsing experience,applications in machine vision, edge computing, Industrial Automation, Medical, Data Acquisition, Motion Control, Vehicle Application and etc.
| Model | IBOX-605 |
| Color & Material | Titanium gray & all aluminum |
| Processor | Intel Core i3 8100T (quad core, 4 threads,3.1 GHz) |
| Intel Core i5 8500T (6 core,6 threads, 2.1 GHz,Maximum Turbo 3.5 GHz) | |
| Intel Core i7 8700T (6 core,12 threads, 2.4 GHz,Maximum Turbo 4.0 GHz) | |
| Chip | Intel H310 |
| Memory | 2*DDR4 2133/2400 SODIMM slot,Max:32GB |
| Storage | 1*M.2 2280 slot,1*2.5" HDD(2*2.5"HDD Optional) |
| Display Chip | Intel HD Graphics 630 |
| I/O | 6*USB2.0,2*COM,1*Power Switch |
| 2*USB3.0,2* 1000M LAN,1*VGA,2*HD-MI,1 * Mic,1 * Line Out | |
| 4*COM(COM2*RS232/RS422/485 Optional),1*DC | |
| Power Supply | DC 12 ～ 19V / 9 ～ 36V wide voltage Input |
| Work Temp | 0℃ ～ +50℃(Commercial HDD),-20℃ ～ +60℃ |
| Work Humidity | 5% ～ 95% Non-condensing |

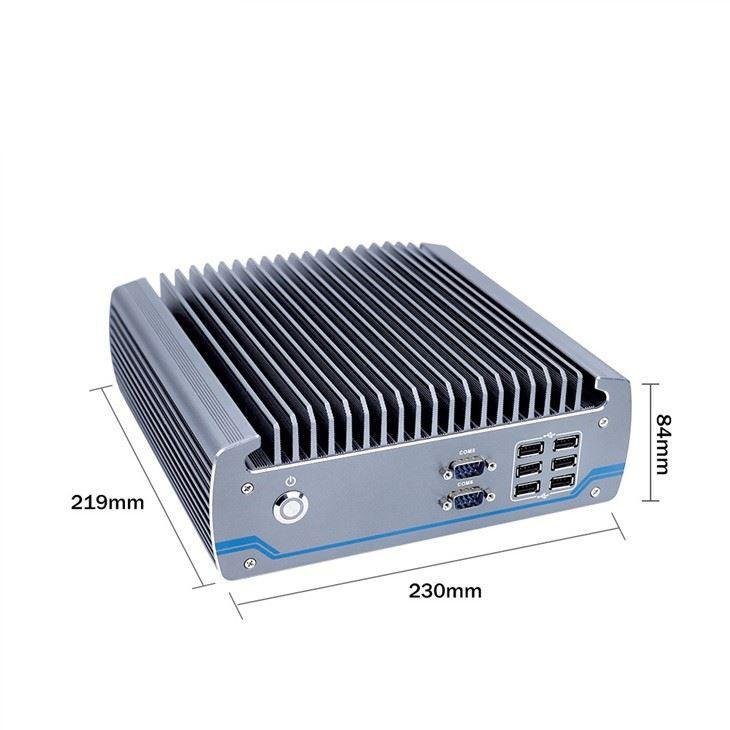

| Dimension | 230 * 219 * 84 mm |
| Weight | 4.0 kg【not include wall bracket】 |
An industrial PC is a computer intended for industrial purposes (production of goods and services), with a form factor between a nettop and a server rack. Industrial PCs have higher dependability and precision standards, and are generally more expensive than consumer electronics. They often use complex instruction sets, such as x86, where reduced instruction sets such as ARM would otherwise be used.
when you have about industrial project you can trust and choose Iwillminipc to order.besides,we offer indsutrial embedded system customized.Welcome to Consult Jessie Wang of professional !
