Industrial Embedded PC
◇J6412 Quad Core Fanless Industrial PC；
- 1xDDR4 SODIMM slot，Max: 32G；
- 3xIntel i226-V 2.5G Lan；
- 2xM.2 slots for 4G/5G；
- 6xCOM (COM1 and 2,RS232/485 optional)；
- Support Win10/Win11/Linux
MiniPC Realeased IBOX-1226 Industrial Embedded PC , Adopt New Intel 12th Generation Elkhart Lake J6412 Quad-core Processors,Up to 1.7 times x improvement in single-threaded performance between generations, and up to1.5 times x improvement in multi-threaded performance, up to 2 times x faster graphicsperformance compared to the previous generation. Besides,there are three i226 2.5G lan ehthernet ports.Applicated in Industrial automation, Medical, Transportation, Warehousing, E-education etc.contact one of our industrial computing.
12th Gen Intel ElkHart Lake Quad Core J6412 Processor Industrial Embedded PC
| Model | IBOX-1226 |
| Material | High-quality all aluminum,Surface anodic oxidation |
| Processor | Intel Celeron J6412 (quad core, 4 threads, 2.0GHz) |
| RAM | 1xDDR4 3200MT/s SODIMM, Max 32 GB |
| Display Port | 1xDP,1xHD |

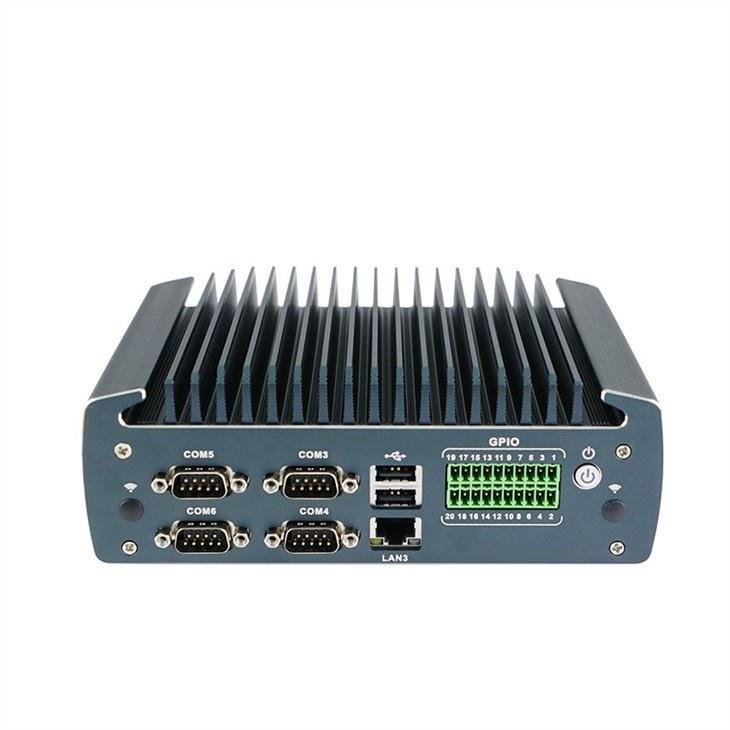

| Front I/O | 4*COM, 2* USB2.0, 1*Intel 2.5G Lan, 18 bits GPIO Phoenix, 1*Power switch |

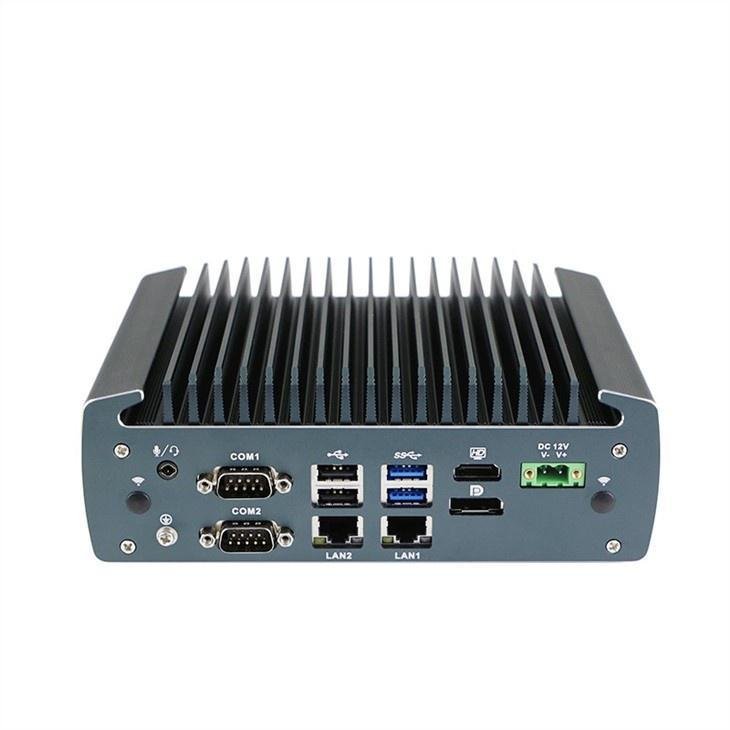

| Rear I/O | 2*COM (COM1 and 2, RS232/485 optional) 2*USB2.0, 2*USB3.0, 2*Intel 2.5G Lan |
| 1*HD, 1*DP, 1* 2Pin Phoenix, 1*Audio with Mic and Speaker | |
| Expansion Slot | 1*M.2 M-key slot 2280, SATA protocol |
| 1*M.2 B-key slot 3042/3052 (for 4G/5G module) with SIM slot | |
| 1*MINI PCIE slot (for WIFI&BT) | |
| LAN | 3*Intel i226-V 2.5G Lan |
Intel Celeron Processor J6412 Industrial Embedded PC,Professional selection of industrial-grade processors, low powerconsumption, sustainable and stable operation in harsh environments
Efficient heat dissipation
High quality aluminum case for quickly heat dissipation.Fanless design for dustproof,shockproof and no noise.Has three ehternet lan ports.The new intel i226 network card chip has lower power consump-tion and more stable performance. Fully open the new era of 2.5G and easily run your Gigabit bandwidth.The new intel i226 network card chip has lower power consumption and more stable performance. Fully open the new era of 2.5G and easily run your Gigabit bandwidth.
This is a simple introduction of 1226- J6412 Industrial Fanless PC, You may also TALK US to learn more – such as Sample,Discount,Payment,Ship etc,.
