I3 I5 Mini PC NUC
Features:
- All aluminum structure, Fanless design;
- Onboard Intel Core i3 7100U, i5 7300U;
- Support DDR4 1866 or 2133 32G memory slot;
- Support HDMI and Mini DP dual display;
- Support 3*USB3.0, 1*Type-C connector;
- Support Wall mount, DIN Rail Mount, VESA mount and etc;
- Applied OS:

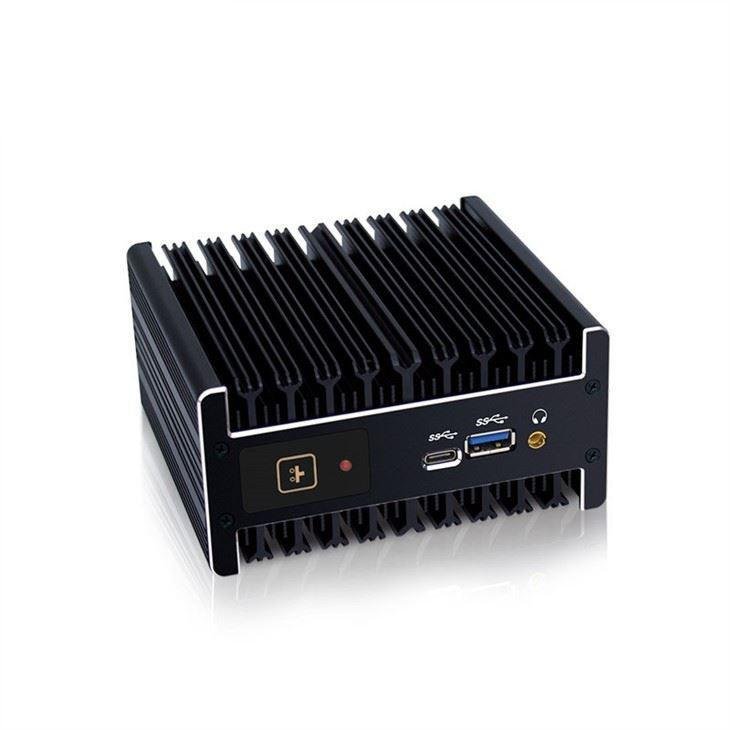

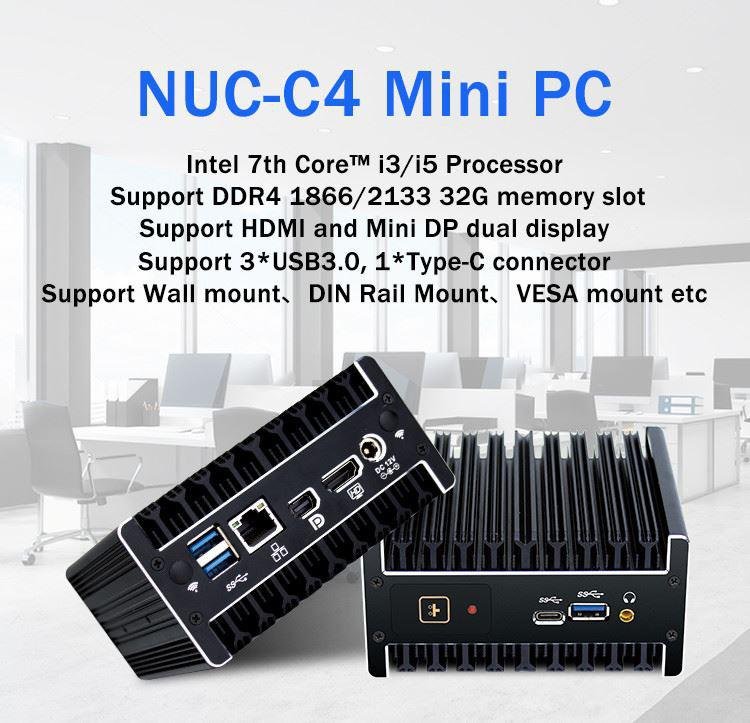

NUC Size Mini PC I3 7100U Fanless Mini Computer with Type-C Port
Specification | |
Model | NUC-C4 |
Color | Black (other color can be customized) |
Material | High-quality all aluminum, Surface anodic oxidation |
Processor | Intel Core i3 7100U (Dual core four threads, 2.4 GHz) |
Intel Core i5 7300U (Dual core four threads, 2.6 GHz, Max 3.5 GHz) | |
CPU Architecture | KabyLake-U |
Memory | Support 2*DDR4 1866/2133 MHz SODIMM memory slot, Max :32 GB |
Display Chip | Integrated Intel HD Graphics 620 |
Display Port | 1*HDMI, 1* Mini DP |

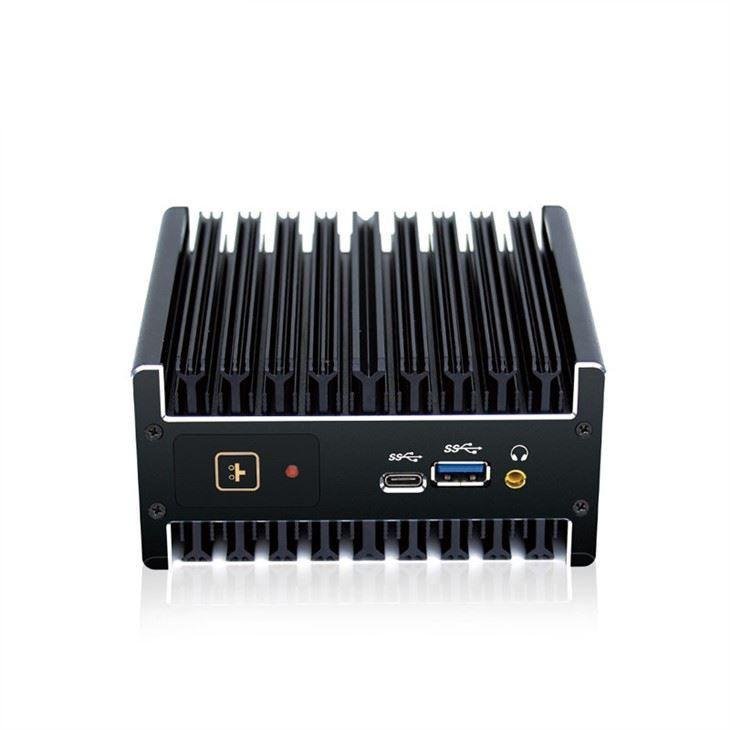

Front I/O | 1*Power Switch, 1*Type-C Port, 1* USB3.0, 1*Audio two in one port |

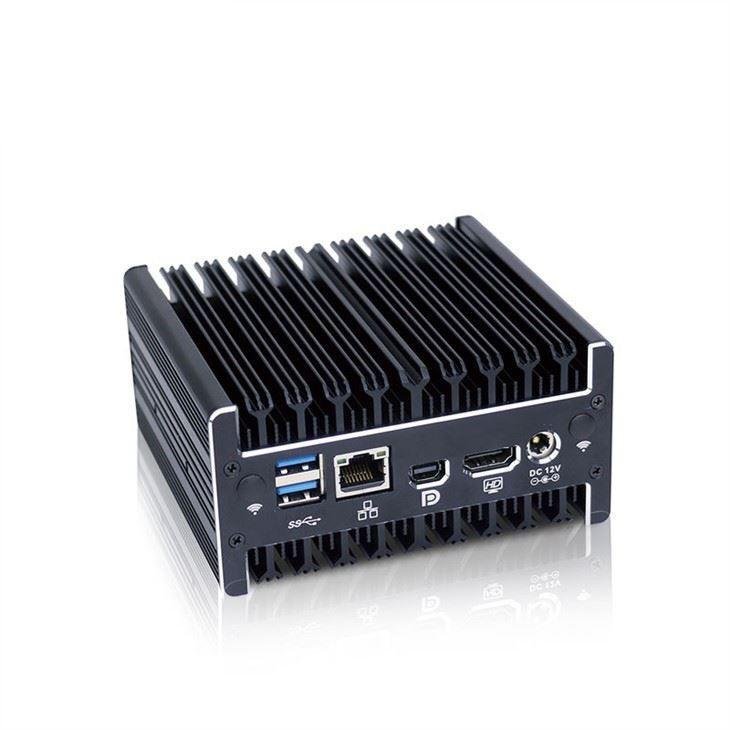

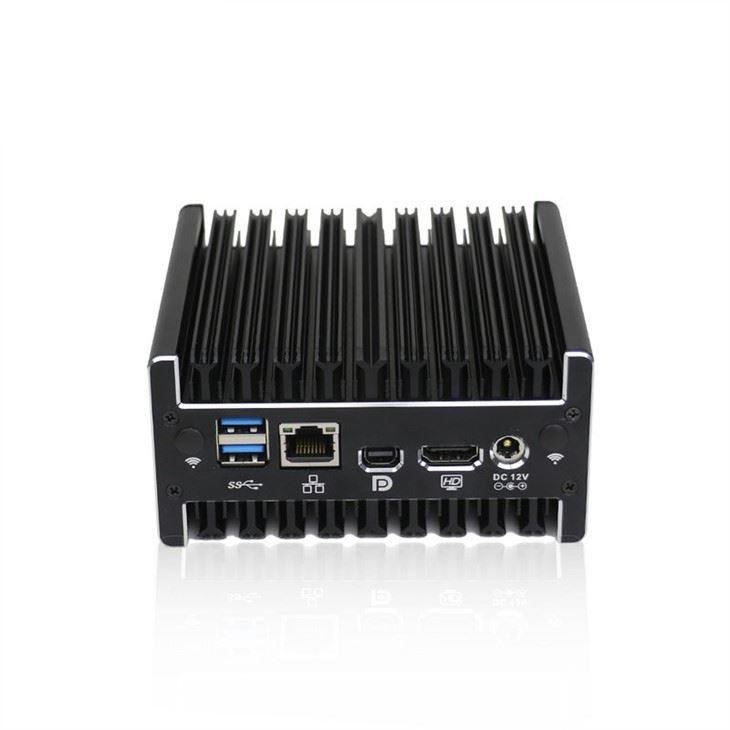

Rear I/O | 1*RJ45 1000M LAN, 2*USB3.0, 1*HDMI, 1*Mini DP |
1* DC 12V input port | |
Expansion Slot | Support 1* M.2 2260 slot (SATA Signal) |
Support 1* M.2 2230 slot (Optional WIFI/BT) | |
Network | 1*Intel i211-AT 1000M LAN |
Storage | 1* M.2 2260 slot |
Power Supply | Support DC 12V input |
Other Function | Auto power on when there is electricity, Timing boot, Wake on LAN, PXE boot, Watchdog (0～255 level) (Standard version doesn’t set these function) |
Work Temp | 0℃ ～ +50℃ (Commercial HDD), -20℃ ～ +50℃ (Industry SSD), Surface air flow |
Work Humidity | 5% ～ 95% Non-condensing |
Certificates | CE, CCC, FCC Class A, ROHS |
Dimension | 115 * 106 * 57mm |
Weight | 0.9 kg |
Application | Business office, HD video broadcast, electronic education and other fields |
