I3 I5 I7 Industrial PC with POE

Model

IBOX-603

Color

Black (Color can be customized)

Material

High-quality all aluminum, surface anodic oxidation

Processor

Onboard Intel Celeron 3855U (Dual core dual threading, 1.6 GHz)

Onboard Intel Core i3 6100U (Dual core quad threading, 2.3 GHz)

Onboard Intel Core i5 6200U (Dual core quad threading, 2.3GHz, Max turbo 2.8GHz)

Onboard Intel Core i7 6500U (Dual core quad threading, 2.5GHz, Max turbo 3.1GHz)

CPU Architecture

Skylake-U

RAM

Support 1*DDR4 1866/2133 SODIMM RAM Slot, Max. Support 16GB

BIOS

AMI EFI BIOS

Display Chip

Integrated Intel HD Graphics 510 / 520

Display Port

1*VGA, 1*HDMI

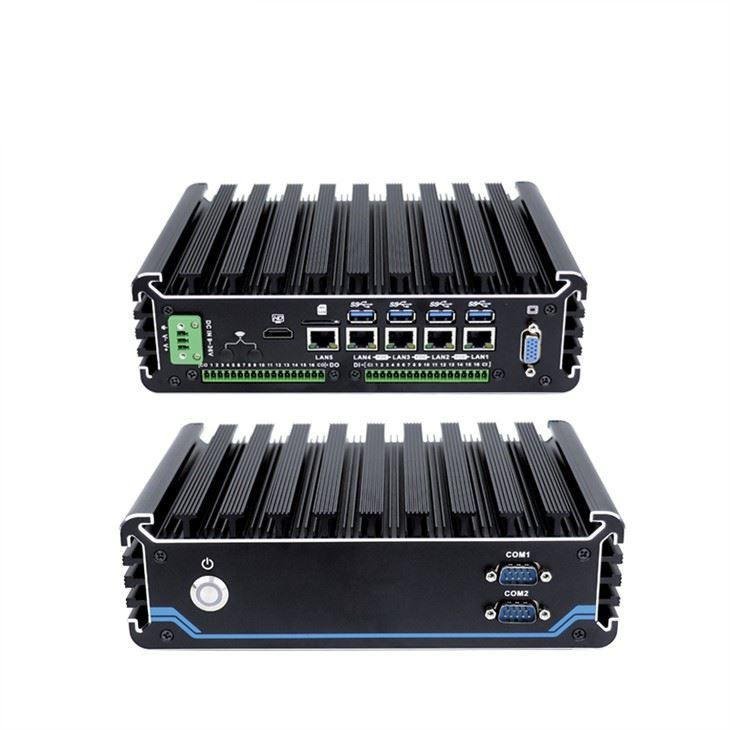

Front I/O

2*COM, 1*Power Switch

Rear I/O

4*USB3.0, 1*VGA, 1*HDMI, 1*3 PIN Power Supply Phoenix Connector (Support 9～36V wide voltage Input)

5*Intel 1000M LAN, 2*18 PIN Phoenix Connector GPIO (Support Opto-couplers isolation)

Expansion Slot

Support 1*MINI PCIE Slot (WIFI/3G/4G Optional), Embedded SIM Slot

Support 1*MINI PCIE Slot (Support MSATA)

Network

5*Intel i211-AT 1000M LAN (Support 4*802.3af standard POE LAN)

Storage

1*MSATA Slot, 1*2.5" HDD

Power Supply

Support DC 9～36V wide voltage Input

Other Function

Auto power on when there is electricity, Timing boot, Wake on LAN, PXE boot, Watchdog (0～255 level) (Standard version doesn't set these function)

Work Temp

0℃ ～ +50℃ (Commercial HDD), -20℃ ～ +60℃ (Industrial SSD), Surface air flow

Work Humidity

5% ～ 95% non-condensing

Certificates

CE, CCC, FCC Class A, ROHS

Dimension

230*166*68mm【Not include bracket】

Net Weight

2.3 kg【Not include bracket】

Application

Industrial automation, Machine vision, Transportation industry, Power monitoring, etc.
