I3 I5 I7 Industrial PC with PCIE X4

Model

IBOX-708

Color

Titanium gray (Color can be customized)

Material

High quality aluminum alloy+ sheet metal structure

Processor

Intel Core i3 6100T (Dual core four threads, 3.2 GHz)

Intel Core i5 6500T (Quad core four threads, 2.5 GHz, Max turbo 3.1 GHz)

Intel Core i7 6700T (Quad core eight threads, 2.8 GHz, Max turbo 3.6 GHz)

Memory

Support 2* DDR4 1866/2133 SODIMM memory slot, Max 32GB

BIOS

AMI EFI BIOS

Display Chip

Integrated Intel HD Graphics 530

Display Port

1* VGA, 1*HDMI, 1*DP (Support synchronous/asynchronous three display)

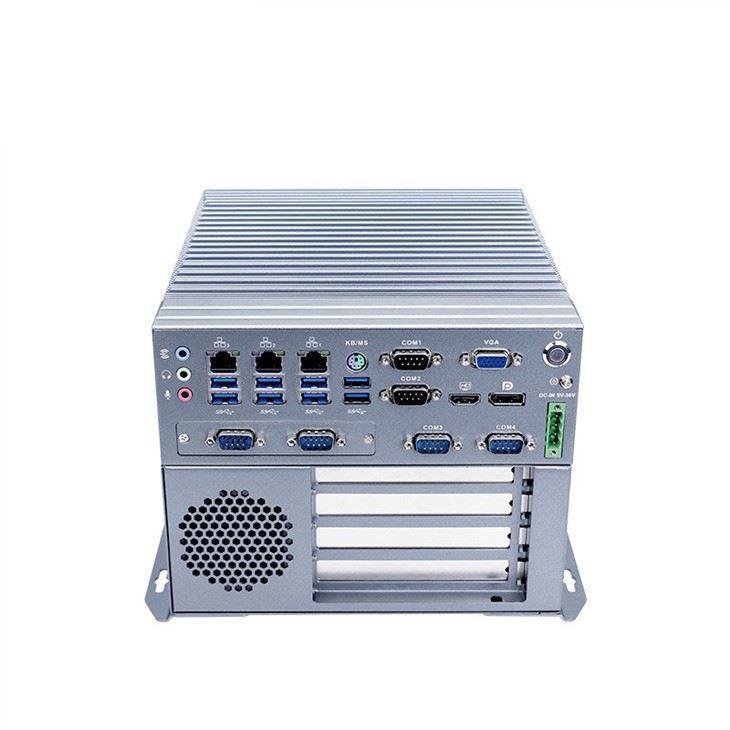

Front I/O

8*USB3.0, 2 *Intel 1000M LAN, 1*Power Switch, 1* Mic, 2* Speak port

6* COM (COM1, 2 Optional RS232/422/485), 1* DC Power phoenix terminal

1*VGA, 1*HDMI, 1*DP

Rear I/O

Support 1*MINI PCIE slot (Support WIFI/3G/4G), Embedded SIM Slot

Support 1*MINI PCIE slot (Support MSATA/3G/4G), Embedded SIM Slot

Optional (Standard version doesn't include these ports): 16 bit GPIO port, 4*USB2.0

Expansion Slot

1*PCIE X16 slot + 1*PCIE X4 slot + 2*PCI slot, Extension Cards: support 210 mm

Optional expand slot: 1*PCIE X16 slot + 1*PCIE X4 slot

Network

2*Intel i211-AT, 1*Intel i219-LM 1000M LAN (Support Vpro skill)

Storage

Support 1*MSATA , 2*2.5" SATA (Support RAID0/1)

Power Supply

DC 9～36V wide voltage Input, Support positive and negative connector reverse protection

Other function

Auto power on when there is electricity, Timing boot, Wake on LAN, PXE boot, Watchdog (0～255 level) (Standard version doesn't set these function)

Work Temp

0℃ ～ +50℃ (Commercial HDD), -20℃ ～ +60℃ (Industry SSD), Surface air flow

Work Humidity

5% ～ 95% non-condensing

Certificates

CE, CCC, FCC Class A, ROHS

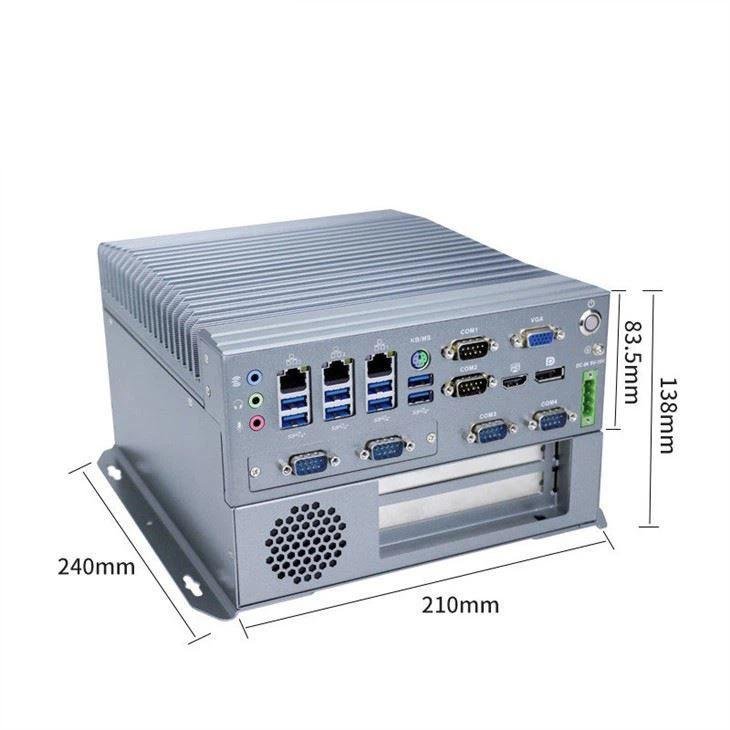

Size

210 * 240 * 173 mm【NO VESA Mount】

Weigh

5.2 kg【No VESA Mount】

Application

Industrial Automation, Medical, Logistics Transportation, Warehouse, Electronic Education etc.
