I3 I5 I7 Industrial PC with 2 HDMI

Model

IBOX-605

Color

Titanium gray (other color can be customized)

Material

High-quality all aluminum, Surface anodic oxidation

Processor

Intel Core i3 8100T (quad core, 4 threads, 3.1 GHz)

Intel Core i5 8500T (6 core, 6 threads, 2.1 GHz, Maximum Turbo 3.5 GHz)

Intel Core i7 8700T (6 core, 12 threads, 2.4 GHz, Maximum Turbo 4.0 GHz)

Chip

Intel H310

Memory

Support 2*DDR4 2133/2400 SODIMM slot, Max:32GB

BIOS

AMI EFI BIOS

Display Chip

Integrated Intel HD Graphics 630

Display Port

1*VGA, 2*HDMI (Support synchronous and asynchronous dual display)

Front I/O

6*USB2.0, 2*COM, 1*Power Switch

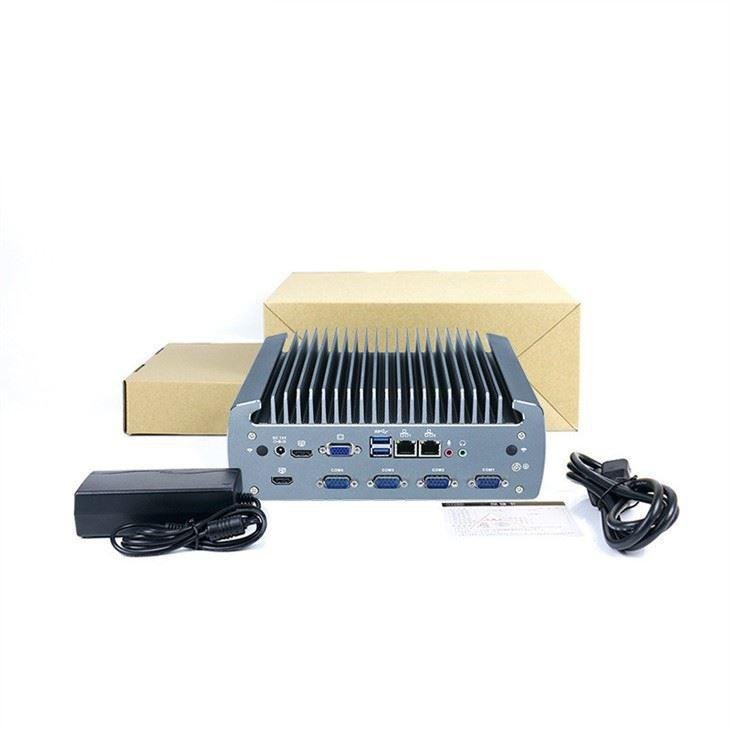

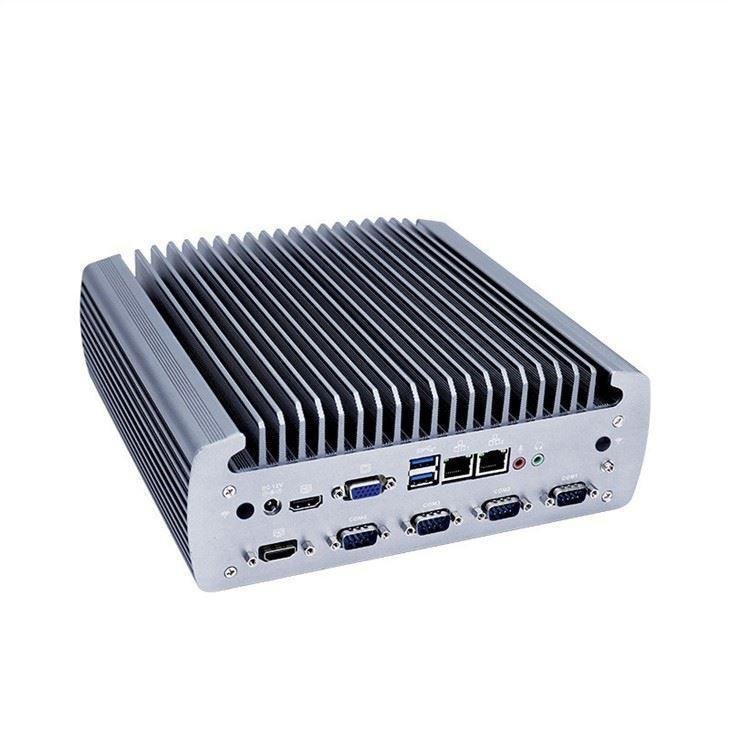

Rear I/O

2*USB3.0, 2* 1000M LAN, 1*VGA, 2*HDMI, 1 * Mic, 1 * Line Out

4*COM (COM2*RS232/RS422/485 Optional), 1*DC

Expansion Slot

Support 1*M.2 2280 slot (Compatible: PCIE and SATA signal)

Support 1*MINI PCIE slot (Support WIFI/Bluetooth)

Expansion Port: GPIO (4 Input*4 Output)

Network

2*RTL8111H 1000M LAN

Storage

Support 1*M.2 2280 slot, 1*2.5" HDD (2*2.5" HDD Optional)

Power Supply

Support DC 12 ～ 19V Input (DC 9 ～ 36V wide voltage Optional)

Other Function

Auto power on when there is electricity, Timing boot, Wake on LAN, PXE boot, Watchdog (0～255 level)

Work Temp

0℃ ～ +50℃ (Commercial HDD), -20℃ ～ +60℃ (Industrial SSD), Surface air flow

Work Humidity

5% ～ 95% Non-condensing

Certificates

CE, CCC, FCC Class A, ROHS

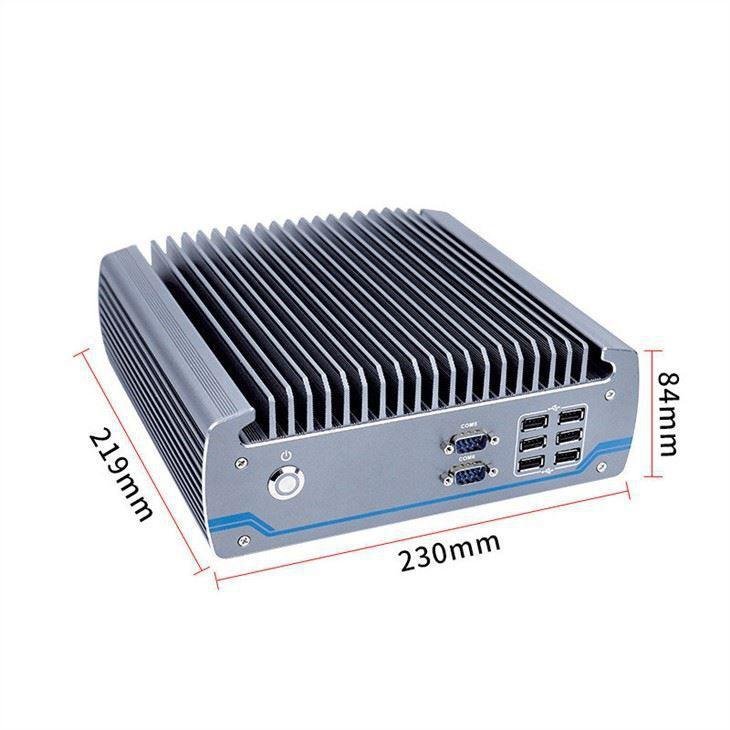

Dimension

230 * 219 * 84 mm【not include wall bracket】

Weight

4.0 kg【not include wall bracket】

Application

Industrial Automation, Medical, Data Acquisition, Motion Control, Vehicle Application and etc.
