4U Rack Mount I3 I5 I7 Network Server
◇4U Rack Mount 6th/ 7th i3/i5/i7 network server
◇Intel H110 chipset,support Win XP OS
◇2xDDR4 DIMM，Max:32G
◇Support 1xMSATA SSD, 3x2.5”/3.5” HDD
◇Support 6*COM，2*COM RS232/485 optional
◇1*PCIE X16 + 1x PCIE X1 + 1x PCIE X4 + 4xPCI
◇OS：

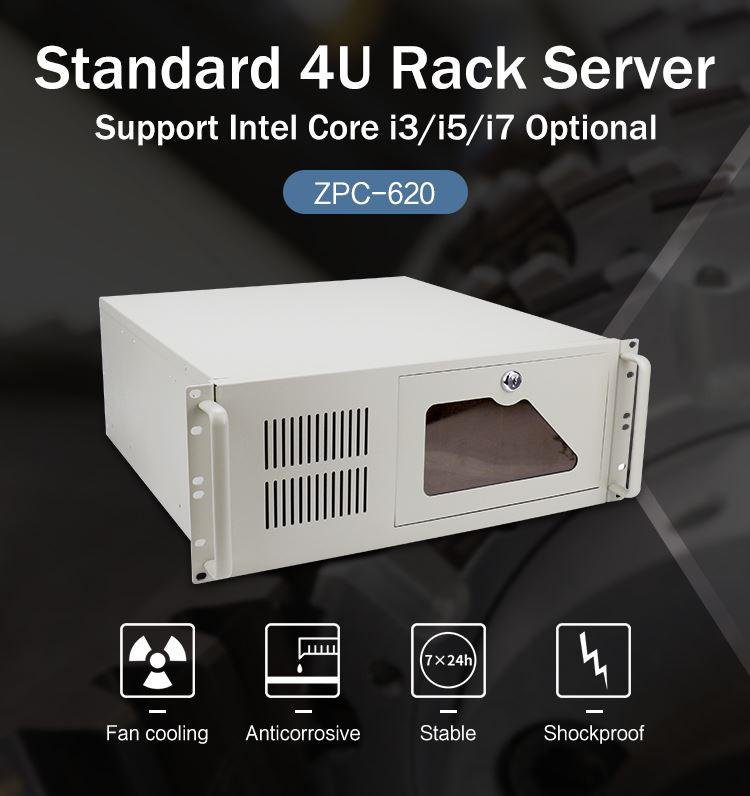

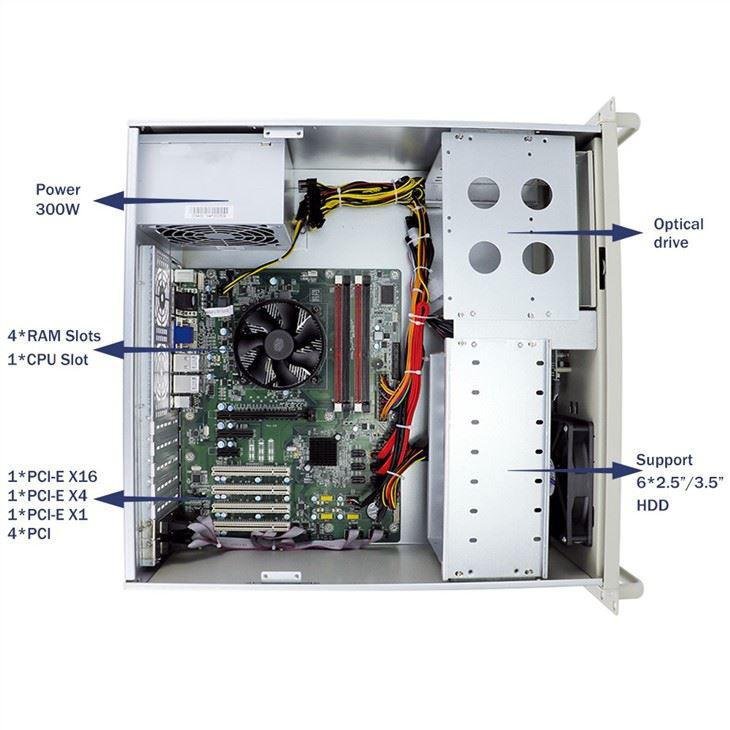

The ZPC-620 is standard 4U Rack Mount firewall nerwork server，Adopt high-Grade plain galvanized steel plate structure,Onboard Intel H110 chipset, Intel 6th/ 7th Generation Core i3/i5/i7 LGA1151processor；equipped with 2*DDR4 Max:32G ram,1*MSATA SSD, 3*2.5”/3.5” HDD, 6*COM，2*COM RS232/485 optional, expansion slot with 1*PCI-E X16，1*PCI-E X1，1*PCI-E X4，4*PCI.Applicated inApplied in Network server, KIOSK, Advertising Machine, Self-service Terminal, Electronic Whiteboard, ATM, POS/Retail, Networking etc.
| Model | ZPC-620 |
| Color | White |
| Processor | Intel Core i3 6100 (dual core, 4 threads，3.7 GHz) |
| Intel Core i5 6500 (quad core, 4 threads，3.2 GHz, Turbo boost 3.6 GHz) | |
| Intel Core i7 6700 (quad core, 8 threads，3.4 GHz, Turbo boost 4.0 GHz) | |
| CPU Structure | Intel H110 |
| RAM | 2*DDR4 2133/2400 DIMM，Max:32GB |
| Storage | 1*MSATA SSD, 3*2.5”/3.5” HDD |
| Expansion Slot | 1*PCIE X16 + 1*PCIE X1 + 1*PCIE X4 + 4*PCI |
| 1*MINI PCIE (Support MSATA) | |
| GPIO、LPT、1*USB2.0 Optional | |
| Lan | 1*Intel i211-AT, 1*Intel i219-LM |
| Power Supply | AC 180～264 V（50～60Hz），300W Rated Power |

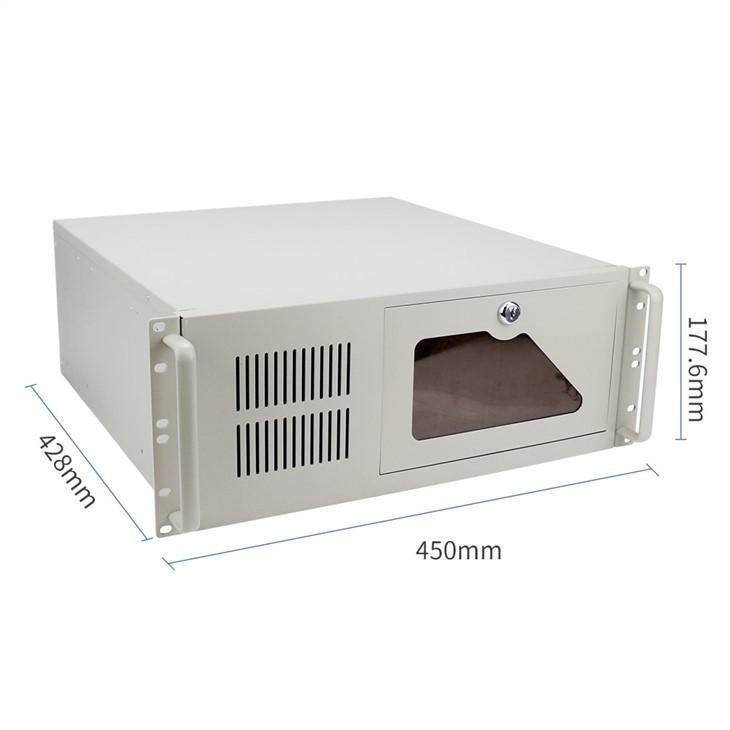

| Dimension | 428 * 450 * 177.6 mm |
| Weight | 12.5 kg （Barebone） |
How wide is 4U?
In A/V, "half-rack" typically describes equipment that fits in a certain number of rack units, but occupy only half the width of a 19-inch rack (9.5 in or 241 mm).
...
Rack unit, U or RU (1U, 2U, 3U, 4U, 5U, 6U and 7U)
Unit Dimension (W x H x D)
2U 19" x 3.5" x 17.7" 19" x 3.5" x 20.9" 19" x 3.5" x 24"
3U 17.1" x 5.1" x 25.5"
4U 19" x 7" x 17.8" 19" x 7" x 26.4"
4U rack mount server industrial computer with desktop CPU intel i3 i5 i7 support 6 3.5 inch HDD and Win XP, If you are interested in this more info,welcome to consult to Jessie
Email : jessie@iwilltech.cn
Skype: iwilljessie
