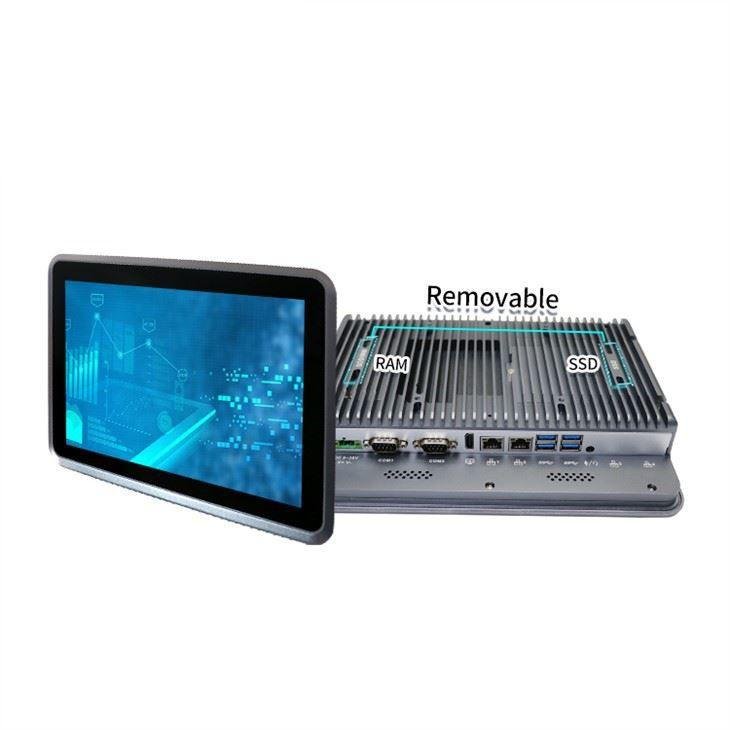

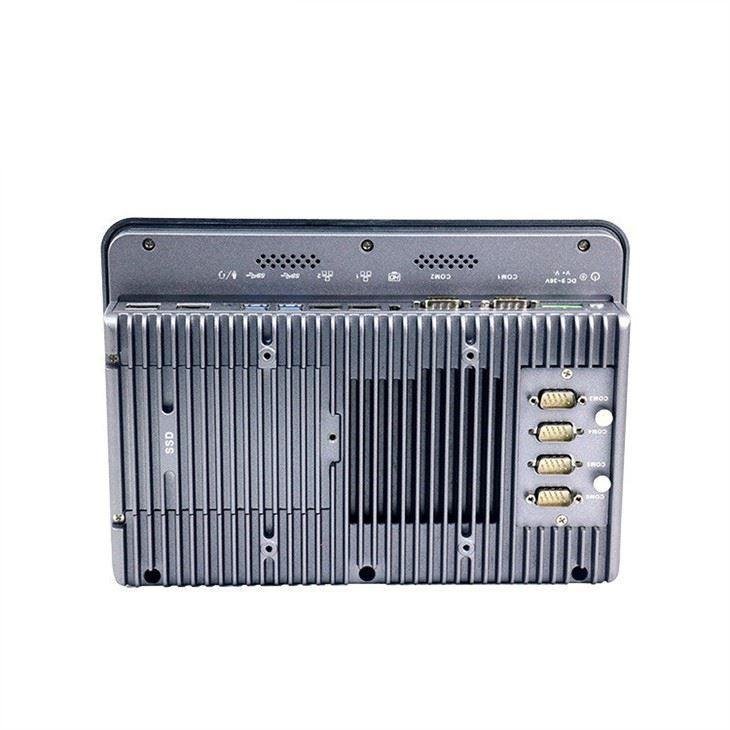

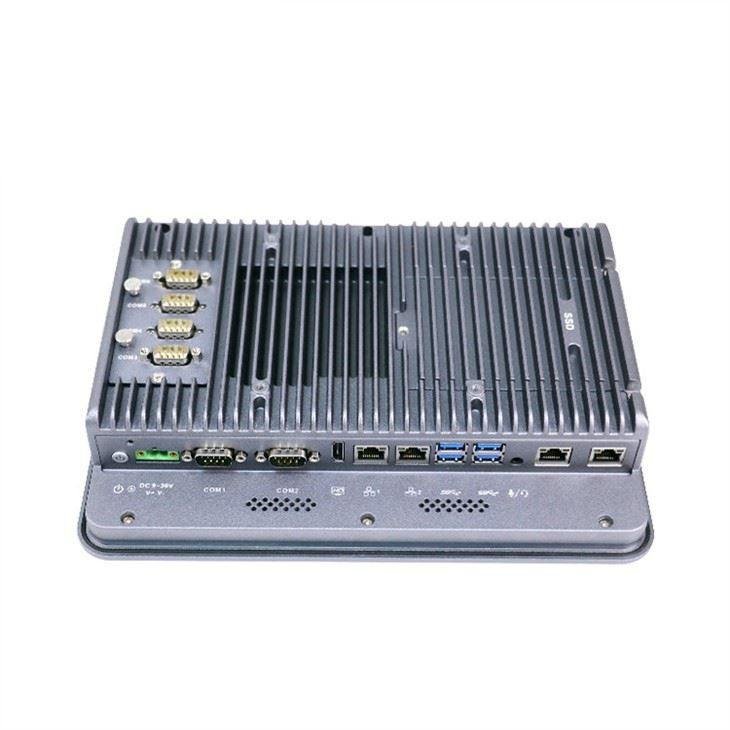

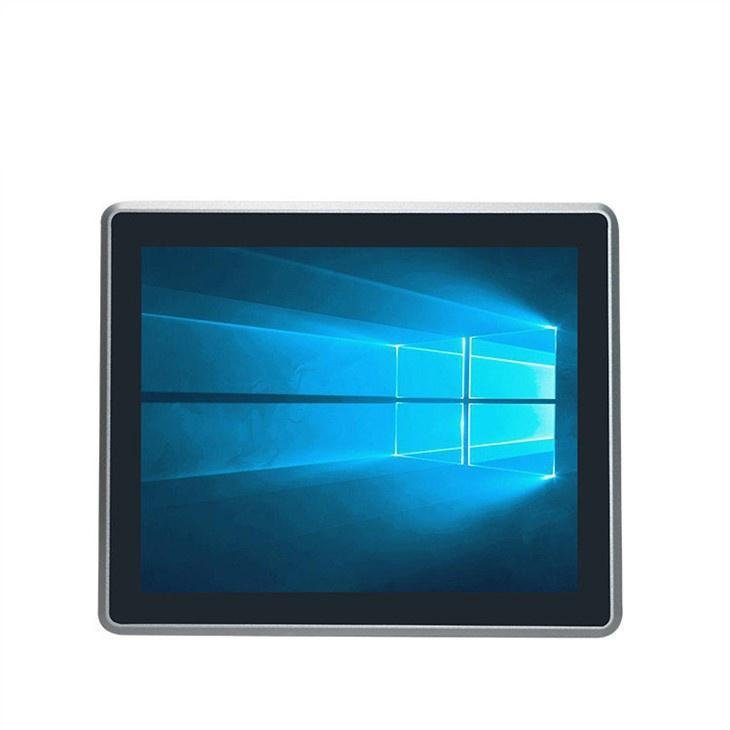

10.1 Inch Industrial Panel PC
Features:
- Die cast aluminum alloy moulding, fanless Industrial Panel PC;
- Onboard Intel Celeron J6412,4205U,i3,i5,i7 optional;
- Support 9V ～ 36V wide voltage Input, and TPM2.0 security encryption;
- Support 2*RS232 or RS422 or RS485 COM Optional, 6*COM Optional;
- Support 2*Intel LAN, 4*LAN Optional;
- IP65 full flat front panel;
- Applied OS:
10.1 Inch Industrial Panel PC
Specification | |
Model | ITPC-A113 |
Color | Titanium gray (Color can be customized) |
Material | Aluminum alloy chassis |
Processor | Onboard Intel Celeron 4205U (Dual core dual threads, 1.8Ghz, 2MB Cache) |
| Intel Celeron J6412 (quad core quad threads, 2.0 Ghz,turbo 2.6 Ghz,1.5MB cache); | |
| Intel Core i5-8260U(quad core eight threads, 1.6 Ghz,turbo 3.9 Ghz,6MB cache) | |
| Intel Core i3-10110U(dual core quad threads, 2.10 Ghz,turbo 4.1 Ghz,4MB cache) | |
Intel Core i7-10810U(Six core twelve threads, 1.10 Ghz, turbo 4.9 Ghz,12MB cache); | |
RAM | Support 1*DDR4 2133/2400 SODIMM Memory Slot, Max. Support 32GB |
BIOS | AMI EFI BIOS |
Display Chip | Integrated Intel UHD Graphics |
Display Port | 1*HD, 1*LVDS (Support synchronous and asynchronous dual display) |
LCD | Size: 10.1 inch TFT-LCD; Brightness: 350 cd/m2; Viewing Angle: Full Angle |
Ratio: 16:9;Resolution: 1280 * 800 | |
Touch Screen | Industrial grade multi-touch capacitive touch screen, Life Time: more than 50000 Thousand Times |
Speaker | Two 8-ohm 2-watt speaker |
Input Voltage | DC 9V ～ 36V wide voltage Input, support positive pole and negative electrode connect reversely protection |
