Rockchip RK3568 Fanless Box PC
- Rockchip RK3568 Fanless BOX PC
- RK3568, quad-core Cortex-A55, Max 2.0GHz
- Min RAM+ROM: 4G+32G
- Supports WiFi6 & BT V5.0
- 4 USB, 2 RS232 (optional 2 RS485), 6 KIO
- Support 9V-15V wide voltage input
- 1 Tops computing power
Nano-a352

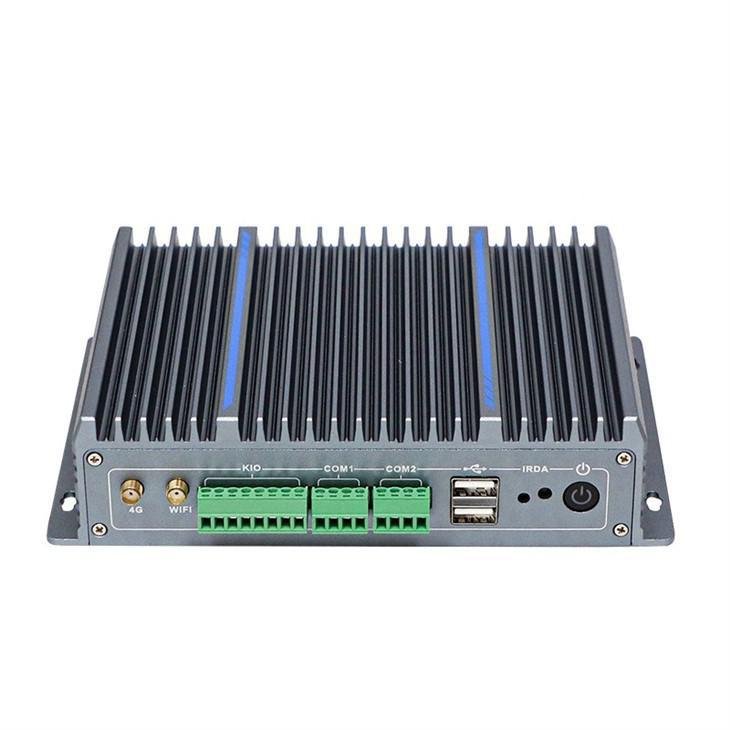

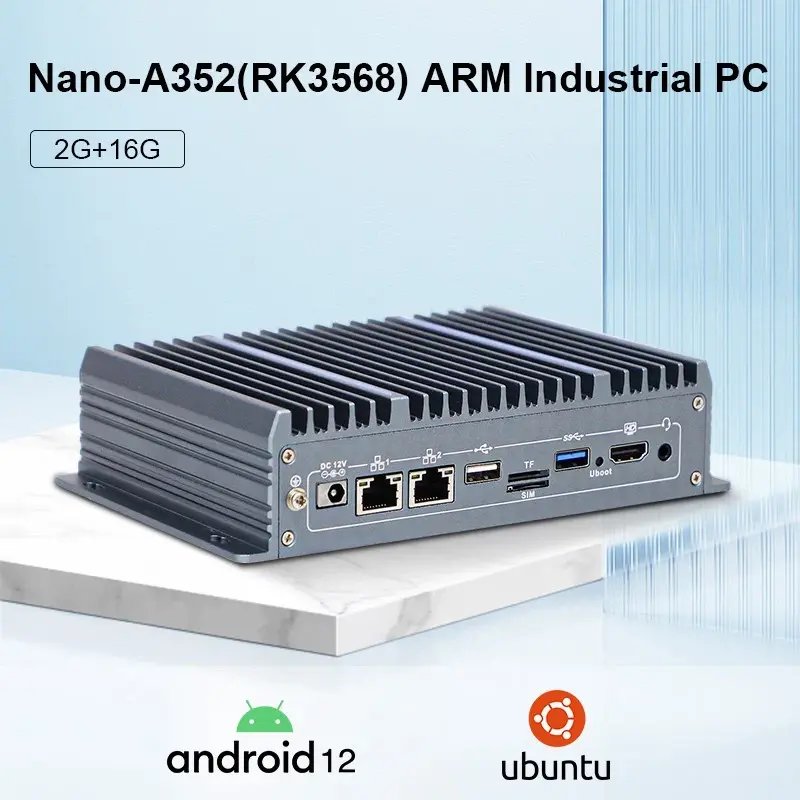

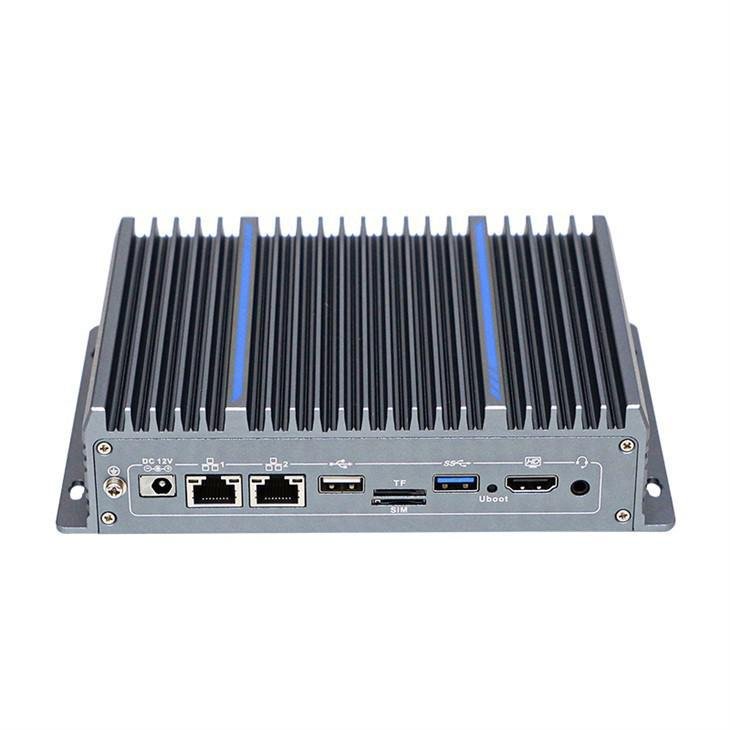

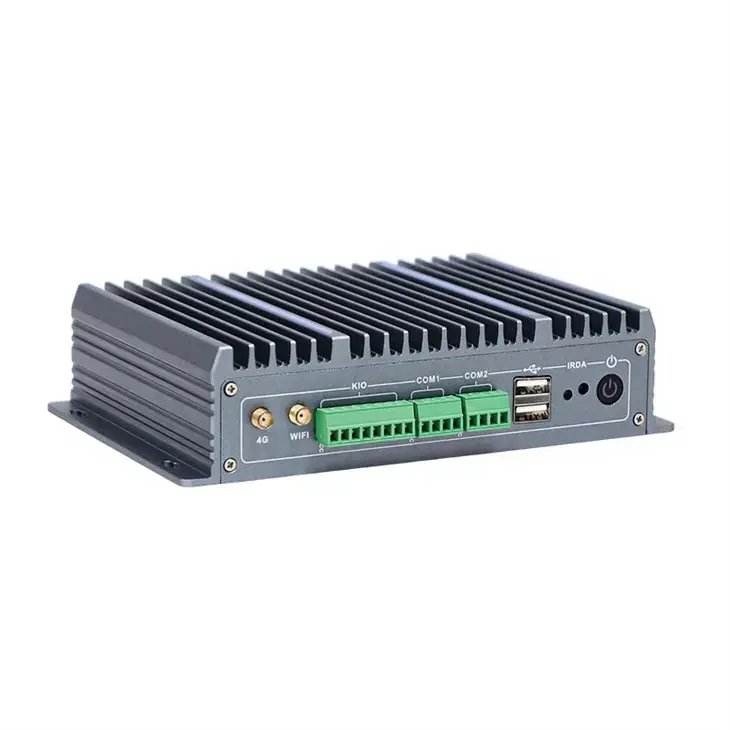

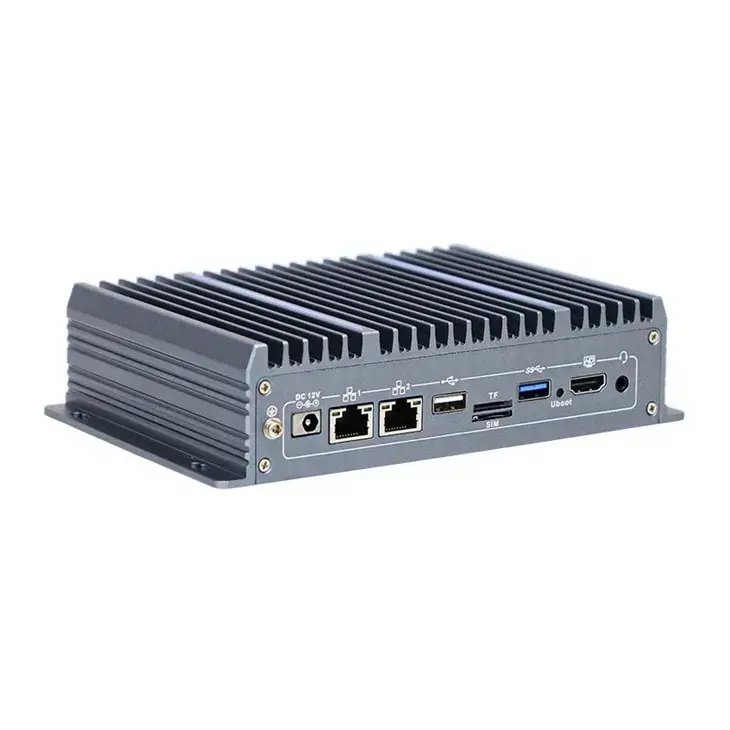

Rockchip RK3568 Fanless Box PC
Nano-A352 (RK3568) ARM platform is a fanless box pc, which is generally suitable for vending machines, robots, self- service terminals and edge computing equipment and other application scenarios
The Nano-A352 (RK3568)fanless box pc is equipped with RK3568 quad-core processor with the highest frequency of 2.0GHz, built-in independent NPU and
computing power up to 1 Tops. Configuration of rich expansion interface, flexible docking of a variety of peripherals. The whole machine is ultrathin design, which can meet the needs of diversified scene deployment.
Rockchip RK3568 Fanless BOX PC parameters
| Products model | Nano-A352 |
| CPU | RockChip RK3568 4 Cores,Cortx-A55 up to 2.0GHz |
| GPU | Mmail-G52 2EE, Support OpenGL ES 1.1/2.0/3.2,OpenCL2.0,Vulkan 1.1,Support 4K |
| NPU | 1TOPS |
| RAM | Max 32GB |
| ROM | 16G/32G/64G,(Up to 128GB optional) |
| WIFI | WIFI6,Support IEEE 802.11 a/b/g/n/ac/ax |
| BT | Onboard Support V2.1+EDR/BT v3.0/BT v3.0+HS/BT v4.0/BT v5.0 |
