Nuc Fanless Mini Pc
Features：
- All aluminum structure，Fanless design；
- Onboard Intel Core i3 7100U、i5 7300U；
- Support DDR4 1866/2133 32G memory slot；

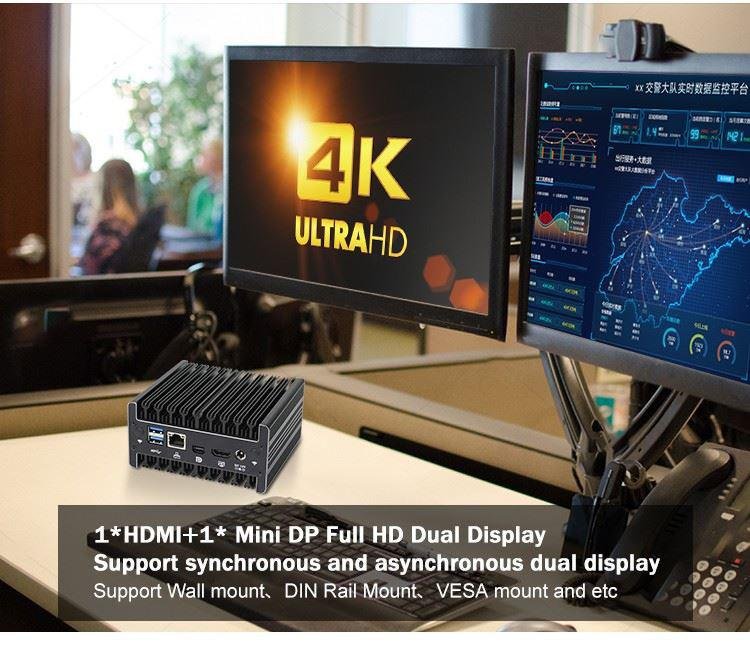

- Support HDMI and Mini DP dual display；
- Support 3*USB3.0，1*Type-C connector；
- Support Wall mount、DIN Rail Mount、VESA mount and etc
- Applied OS：

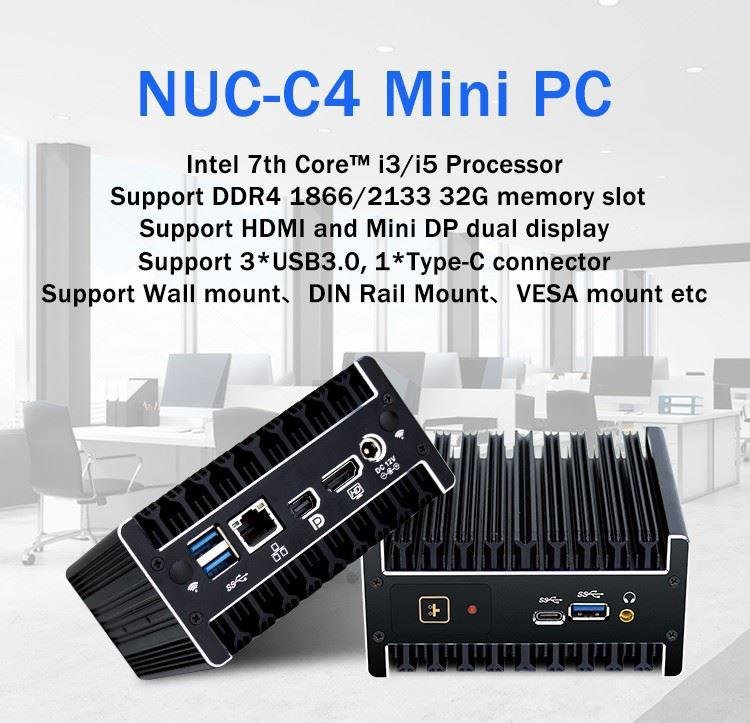

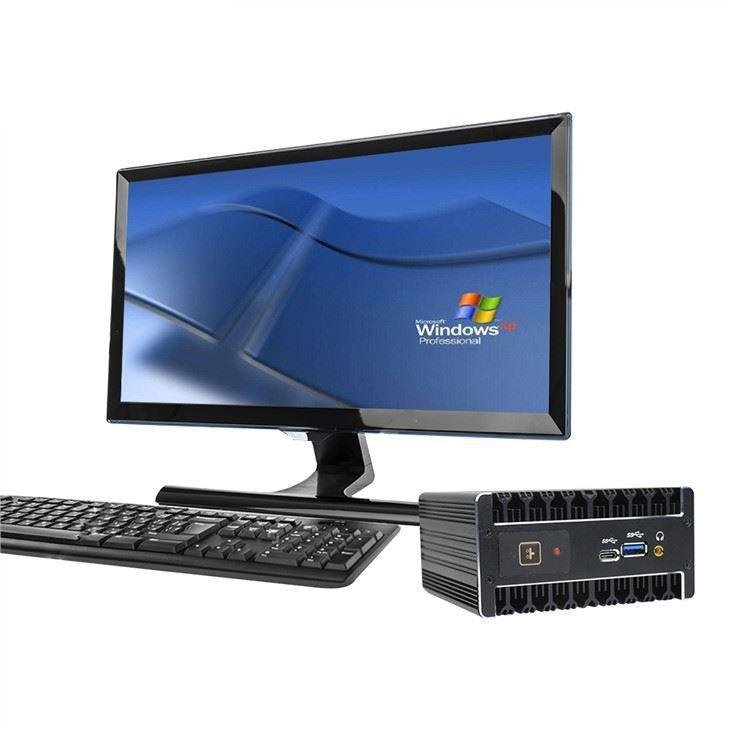

NUC-C4 is low power fanless core mini pc，It support Windows 7/8/10、Linux ，Onboard Intel Core i3 7100U、i5 7300U; Support DDR4 1866/2133 32G memory slot；Support HDMI and Mini DP dual display；Support 3*USB3.0，1*Type-C connector；Support Wall mount、DIN Rail Mount、VESA mount and etc
The whole machine adopts aluminum alloy mold forming, simple structure, with good dustproof, heat dissipation, anti-vibration and EMC performance, high reliability, strong environmental applicability.
Product Feature
Features：
◇ All aluminum structure，Fanless design；
◇ Onboard Intel Core i3 7100U、i5 7300U；
◇ Support DDR4 1866/2133 32G memory slot；
◇ Support HDMI and Mini DP dual display；
◇ Support 3*USB3.0，1*Type-C connector；
◇ Support Wall mount、DIN Rail Mount、VESA mount and etc.
Product Display
| Nuc fanless mini pc | |
Model | NUC-C4 |
Color | Black（other color can be customized） |
Material | High-quality all aluminum，Surface anodic oxidation |
Processor | Intel Core i3 7100U(Dual core four threads，2.4 GHz) |
Intel Core i5 7300U(Dual core four threads，2.6 GHz，Max 3.5 GHz) | |
CPU Architecture | KabyLake-U |

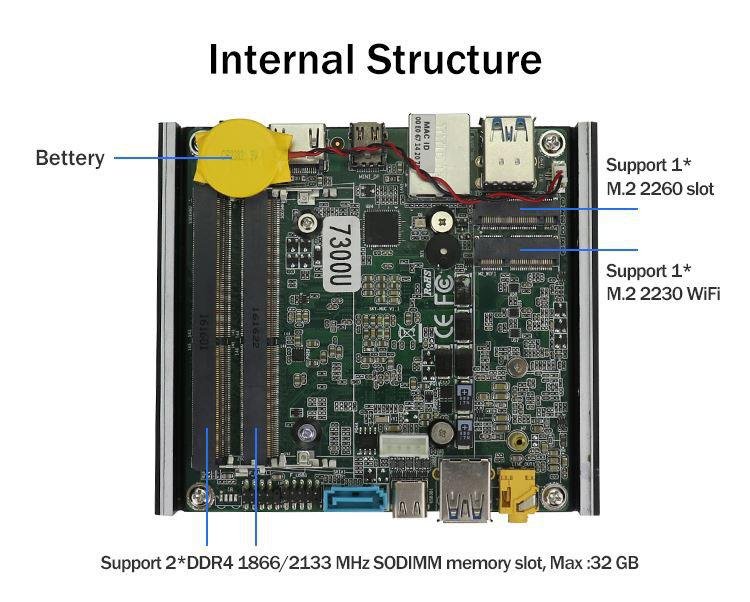

RAM | Support 2*DDR4 1866/2133 MHz SODIMM memory slot，Max :32 GB |
Display Chip | Integrated Intel HD Graphics 620 |
Display Port | 1*HDMI、1* Mini DP |

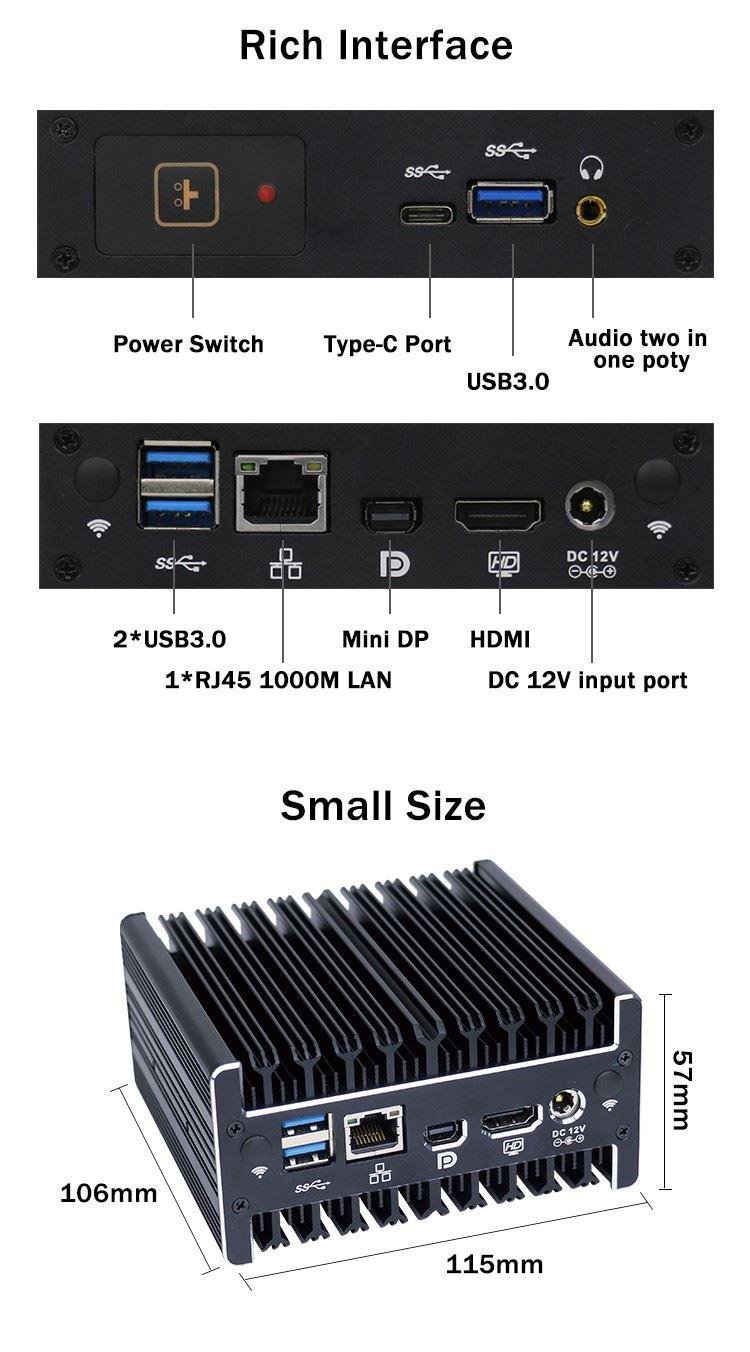

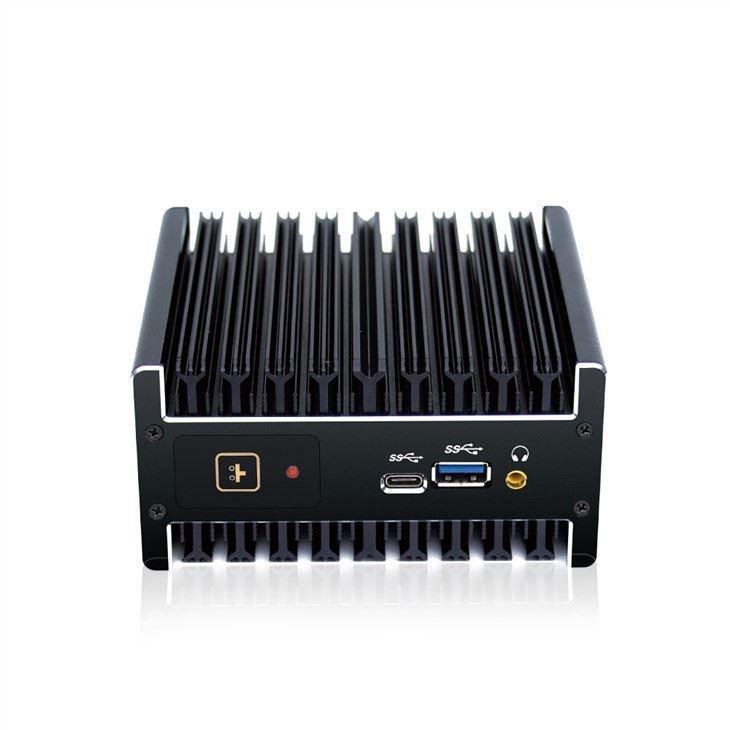

Front I/O | 1*Power Switch，1*Type-C Port，1* USB3.0，1*Audio two in one port |

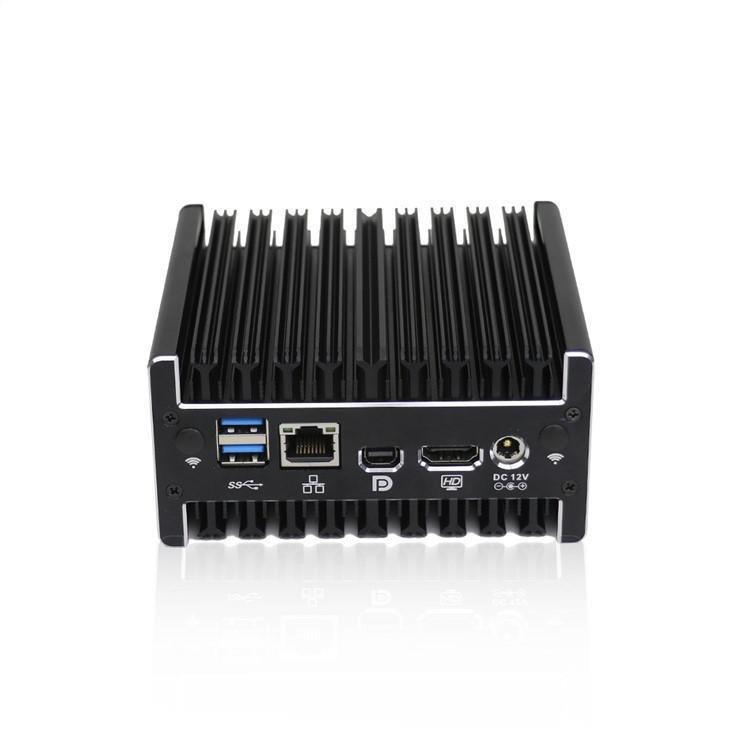

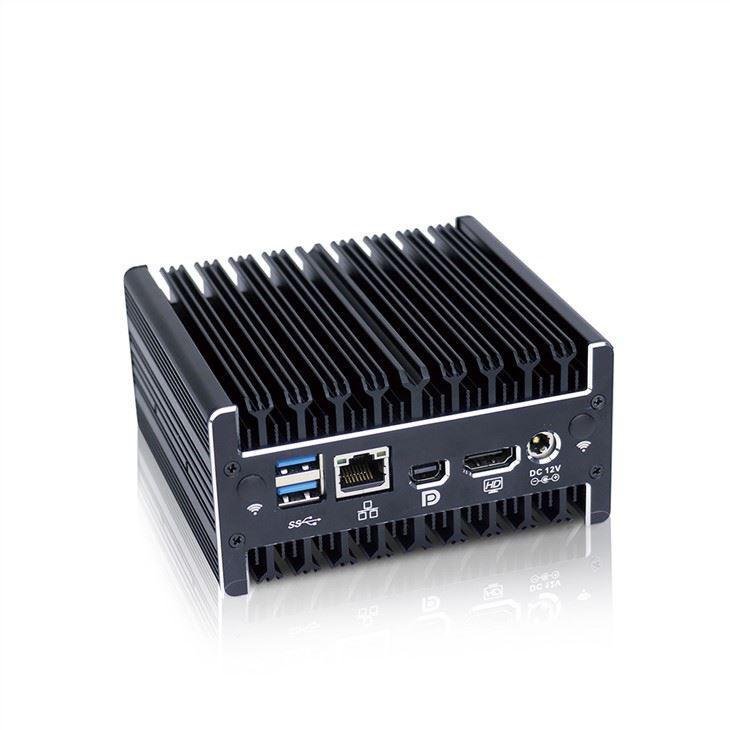

Rear I/O | 1*RJ45 1000M LAN，2*USB3.0，1*HDMI，1*Mini DP |
1* DC 12V input port | |
Expansion Slot | Support 1*M.2 2280 M-key Slot（Support SATA Protocol） |
Support 1* M.2 2230 slot（Optional WIFI/BT） | |
Network | 1*Intel i211-AT 1000M LAN |
Storage | 1* M.2 2260 slot |
Power Supply | Support DC 12V input |
If you are interested in our Nuc fanless mini pc, contact one of our industrial computing professional
Contact : jessie@iwilltech.cn
