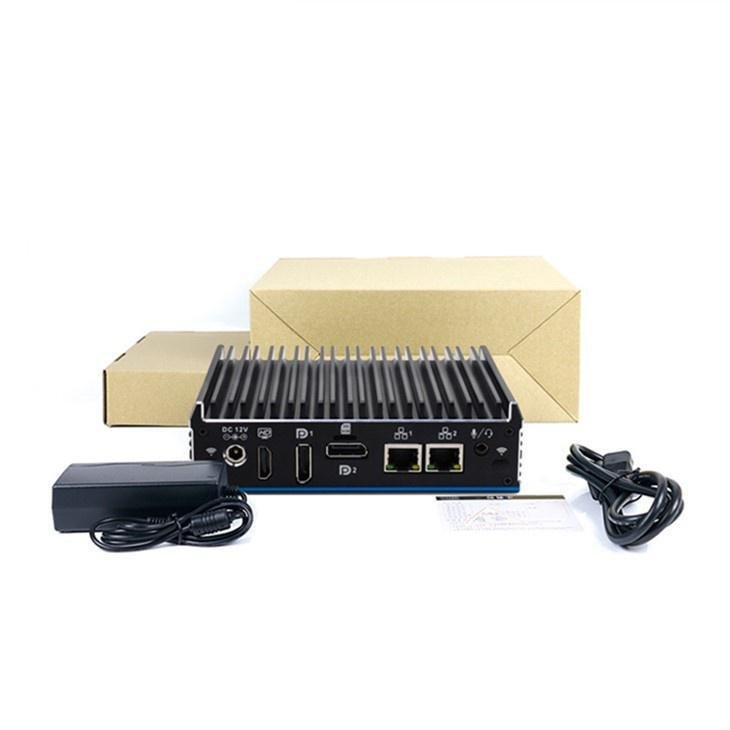

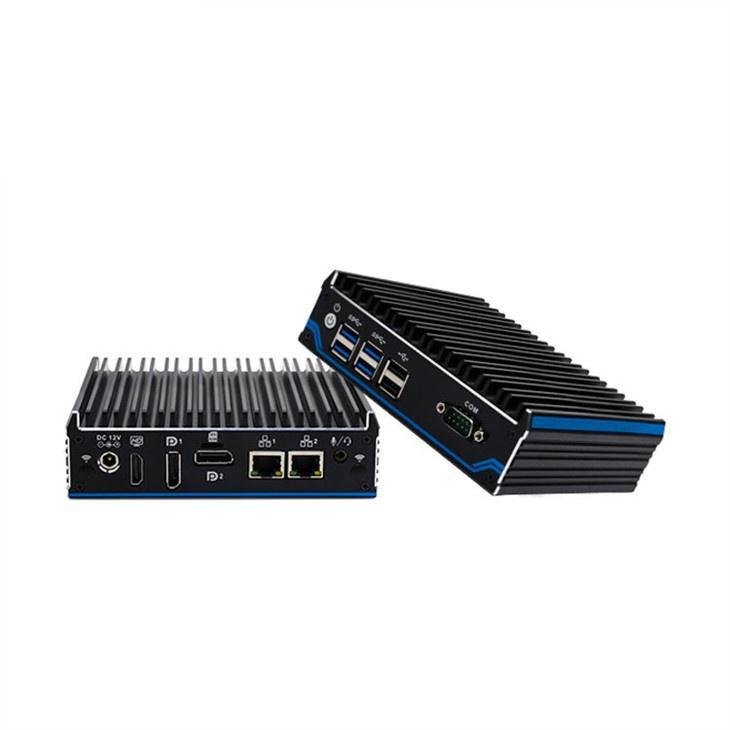

J4125 Mini PC for Digital Signage
Features:
- All aluminum structure, fanless design;
- Onboard Intel Celeron J4125 Quad Core processor;
- Support 6*USB (4*USB3.0);
- Support 3*M.2 Slot (Support WIFI+4G at the same time);
- Support synchronous and asynchronous three display, Support 4K Full HD;
- Support desktop, rail, VESA wall-mounted and other fixing methods;
Industrial Fanless Mini PC J4125 CPU Nano Mini Computer for Kiosk
Specification | |
Model | Nano N1021 |
Color | Black (Color can be customized) |
Material | High-quality all aluminum, surface anodic oxidation |
Processor | Onboard Intel Celeron J4125 (Quad core quad threading, 4MB cache, 2.0GHz, Max turbo 2.7GHz) |
CPU Architecture | Gemini Lake Refresh |
RAM | Support 1*DDR4 2400MHz SODIMM RAM Slot, MAX 8GB |
BIOS | AMI UEFI BIOS |
Display Chip | Integrated Intel HD Graphics 600 |
Display Port | 1*HDMI, 2*DP (Support synchronous and asynchronous three display, Max Resolution support 4096x2160 @ 60Hz) |

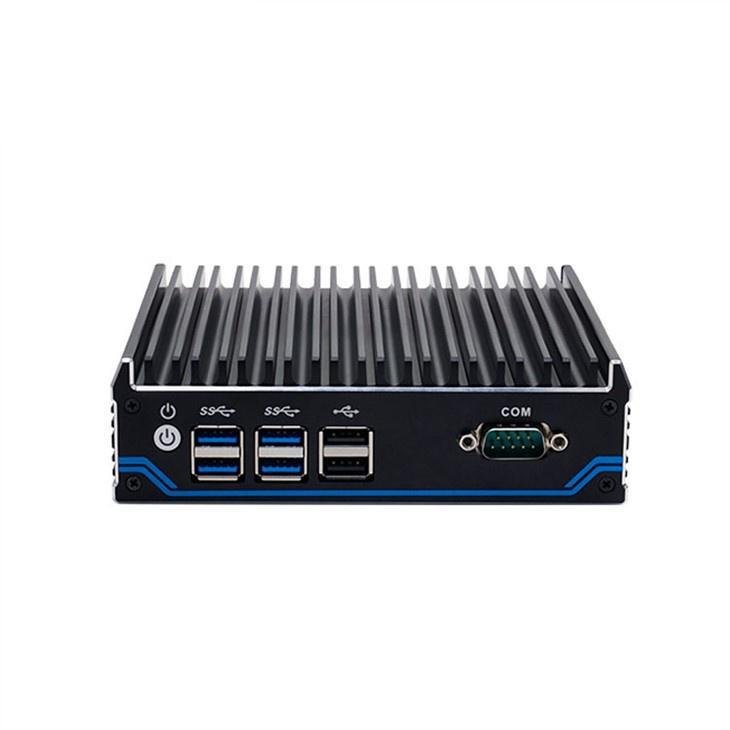

Front I/O | 1*Power Switch, 4*USB3.0, 2*USB2.0, 1*COM |

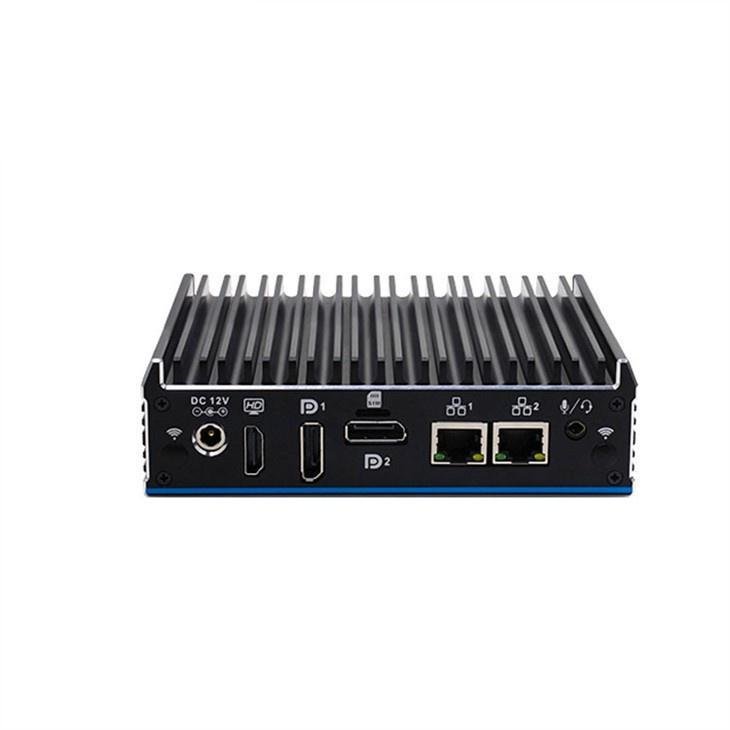

Rear I/O | 1*DC, 1*HDMI, 2*DP, 2*Intel 1000M LAN, 1*SIM Card Slot, 1*Audio (support audio and mic input) |
Expansion Slot | Support 1*M.2 2280 M-key Slot (Support SATA) |
Support 1*M.2 2242 B-key Slot (Support4G), Embedded SIM slot | |
Support 1*M.2 2230 E-key Slot (Support WIFI, BT) | |
Expansion function: TPM Pin (support TPM 1.2 / 2.0 security module), 1*COM | |
Network | 2*10/100/1000M RTL8111H Ethernet Lan |
Storage | 1*M.2 2280 Slot, Onboard 1*2.5" HDD |
Input Voltage | Support DC 12V Input |
Other Function | Auto power on when there is electricity, Timing boot, Wake on LAN, PXE boot |
Work Temp | 0℃ ～ +50℃ (Commercial HDD), -20℃ ～ +60℃ (Industrial SSD), Surface air flow |
Work Humidity | 0% ～ 95% non-condensing |
Certificates | CE, CCC, FCC Class A, ROHS |

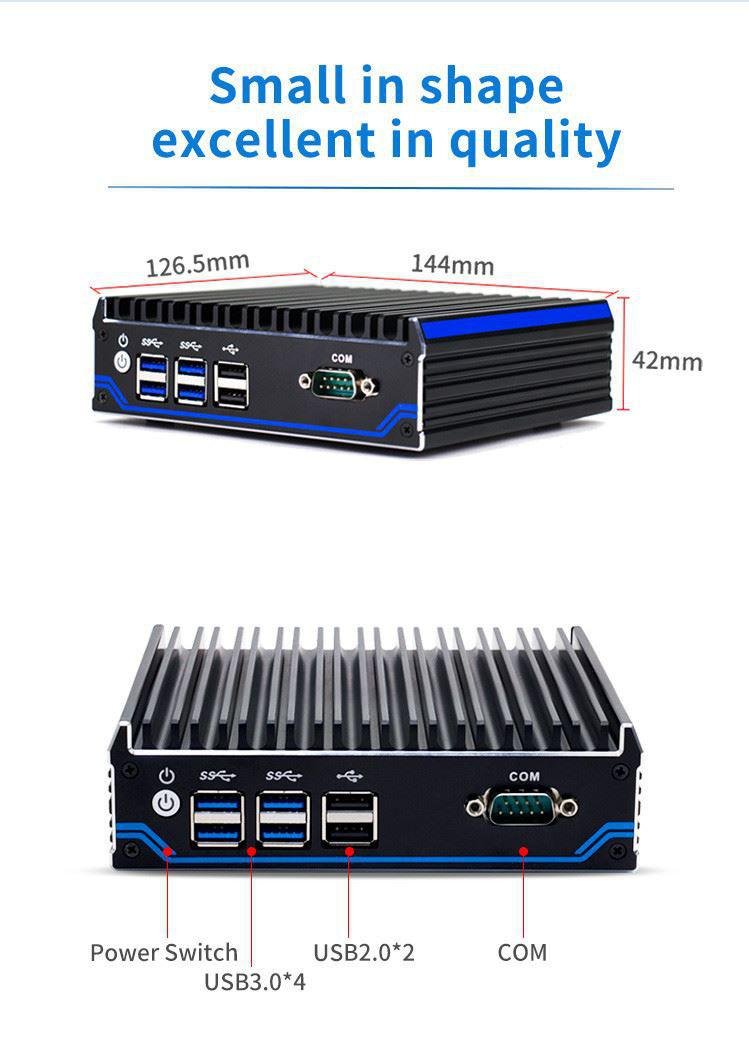

Dimension | 144 * 126.5 * 42 mm |
Net Weight | 0.8 kg |
Application | Industrial Automation, Medical, Logistics Transportation, Warehouse, Electronic Education, etc. |
