J3160 Firewall Appliance 4 LAN
Features:
- All aluminum structure, fanless design;
- Onboard Intel Celeron J3160 quad core processor;
- Max. Support DDR3L 1600 8G RAM;
- Support 2*MINI PCI-E Slot;
- Support 2*HDMI;
- Support 4*Intel 1000M LAN;
Multi-Lan Firewall Mini PC J3160 Quad Core Pfsense
Specification | |
Model | NUC-C3 J3160 |
Color | Black (Color can be customized) |
Material | High-quality all aluminum, surface anodic oxidation |
Processor | Intel Celeron J3160 (Quad core quad threading, 1.6 GHz, Max turbo 2.24GHz) |

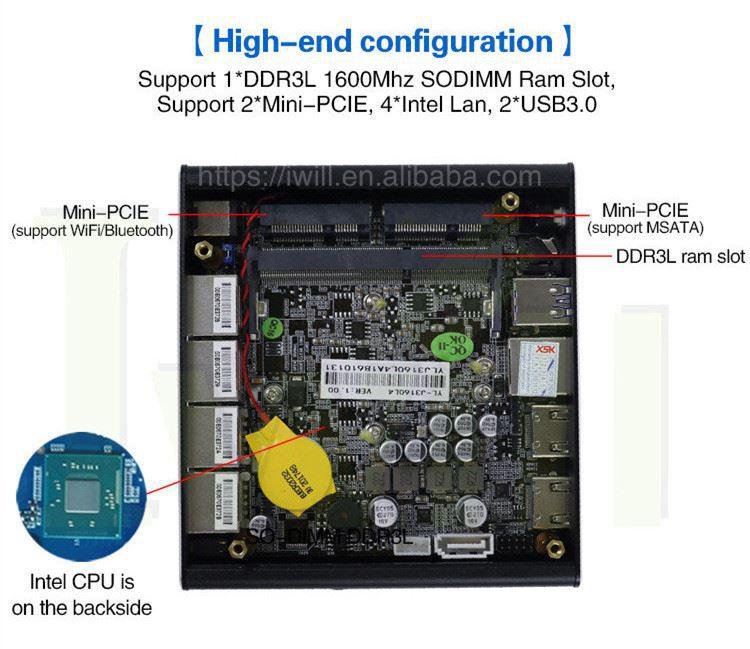

RAM | Support 1*DDR3L 1600MHz SODIMM RAM Slot, Max. Support 8GB |
Display Chip | Integrated Intel HD Graphics |
Display Port | 2*HDMI (Support synchronous/asynchronous dual display) |

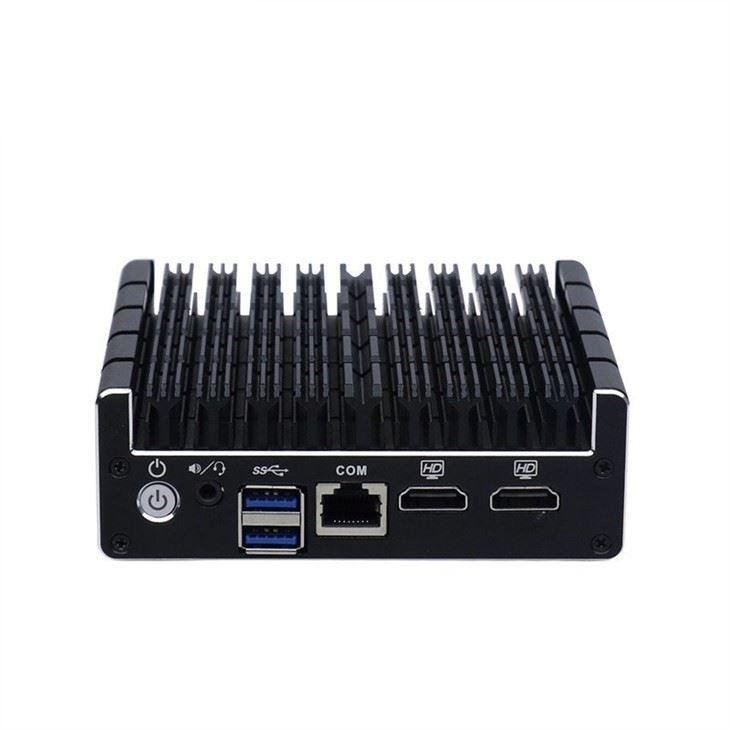

Front I/O | 1*Power Switch, 1*Audio (Support Mic and Speaker at the same time), 2*USB3.0, 1*RJ45 COM (Support Console Function) |
2*HDMI | |
Rear I/O | 4*RJ45 LAN, 1*DC Input |
Expansion Slot | Support 1*MINI PCIE Slot (Support USB Channel WIFI) |
Support 1*MINI PCIE Slot (Support MSATA) | |
Network | 4*Intel i210-AT 1000M LAN |
Storage | 1*MSATA Slot |
Input Voltage | Support DC 12V Input |
Other Function | Auto power on when there is electricity, Timing boot, Wake on LAN, PXE boot, Watchdog (0～255 level) (Standard version doesn't set these function) |
Work Temp | 0℃ ～ +50℃ (Commercial HDD), -20℃ ～ +50℃ (Industrial SSD), Surface air flow |
Work Humidity | 5% ～ 95% non-condensing |
Certificates | CE, CCC, FCC Class A, ROHS |

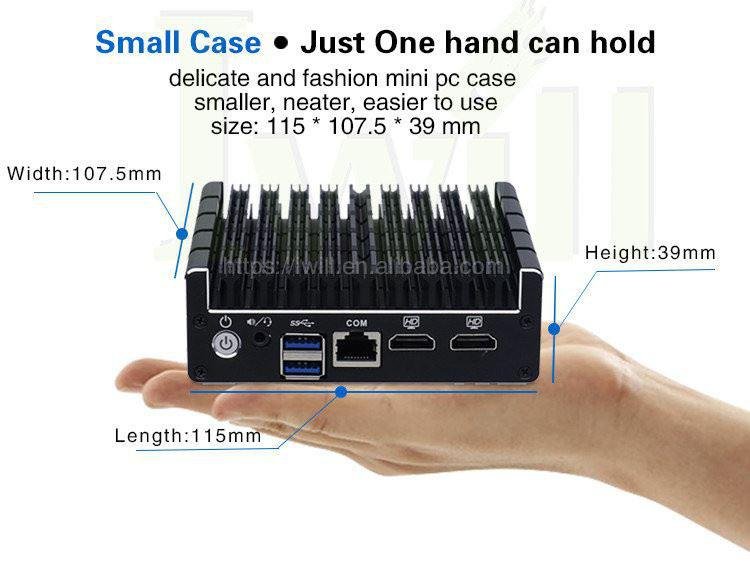

Dimension | 115 * 107.5 * 39mm |
Net Weight | 0.5kg |

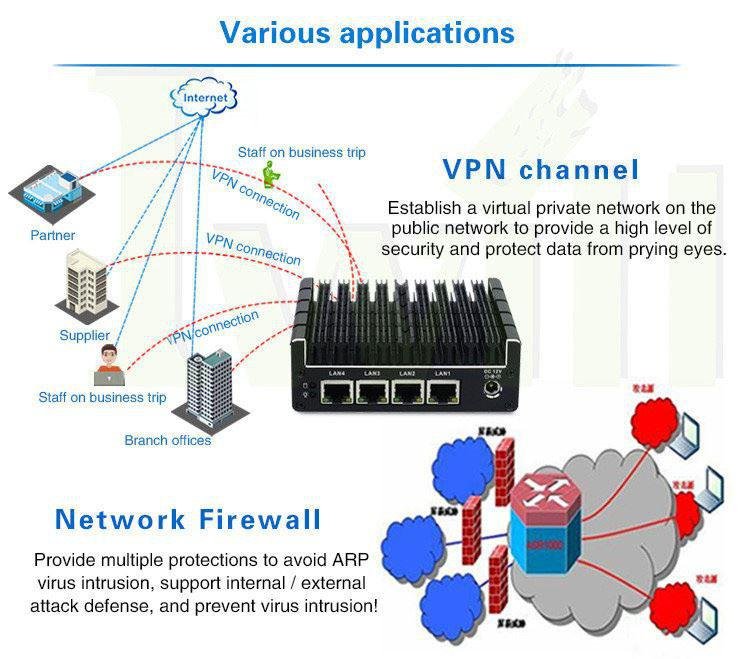

Application | Business Office, HD Video Playback, Home Learning, Router, Network Security etc. |
