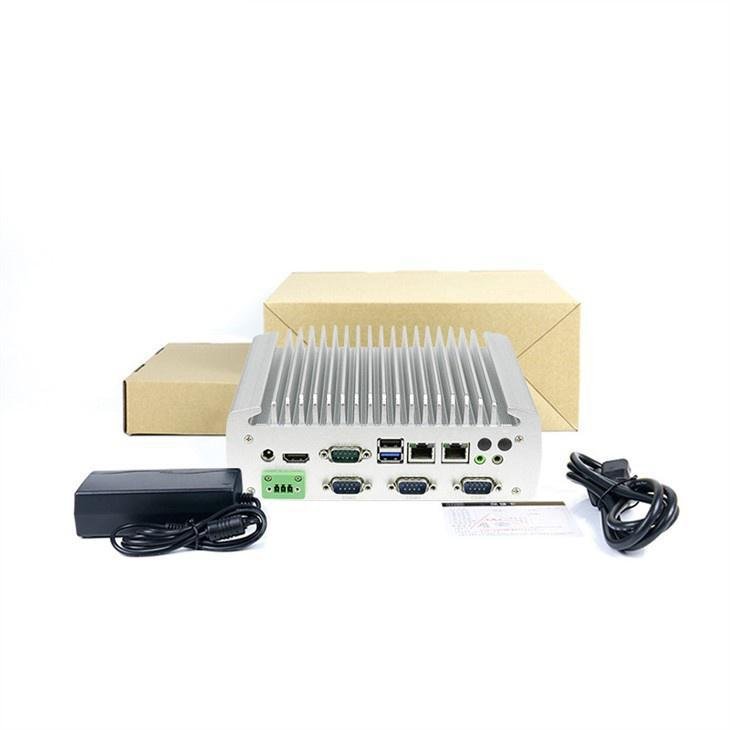

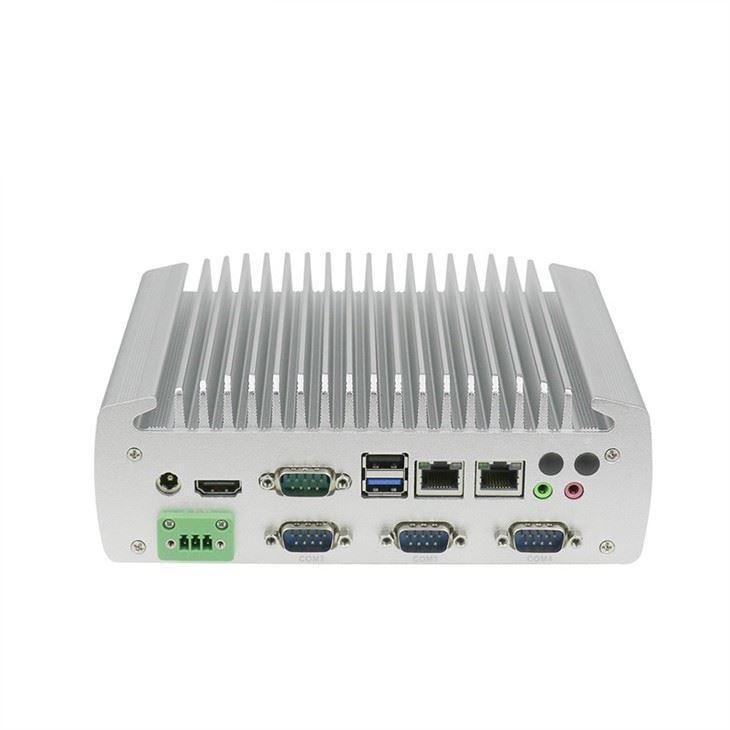

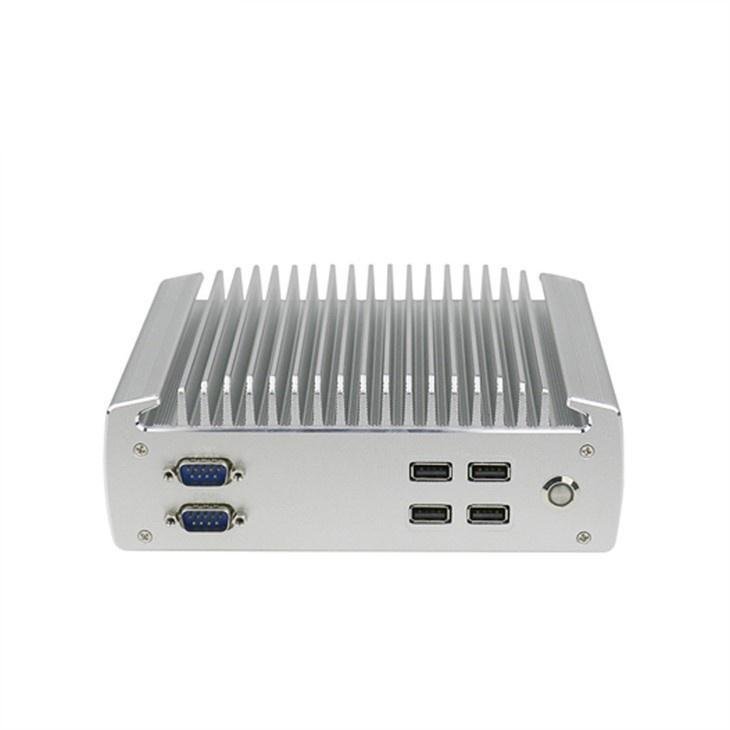

J1900 Fanless Industrial PC
Features:
- All aluminum structure, fanless design;
- Support Intel Celeron J1900 quad core processor;
- Max. Support DDR3L 8G RAM;
- Support 1*MSATA Slot, 1*2.5" HDD;
- Support 1*Mini PCIE Slot;
- Support 6*COM (COM1, COM2 RS232 or 485 Optional);
Fanless Industrial Computer J1900 Quad Core Processor Mini PC
Specification | |
Model | IBOX-101 Plus |
Color | Silver (Color can be customized) |
Material | High-quality all aluminum, surface anodic oxidation |
Processor | Onboard Intel Celeron J1900 (Quad core quad threading, 1.99GHz, TDP: 10W) |
RAM | Support 1*DDR3L 1333/1600MHz SODIMM RAM Slot, Max turbo 8GB |
BIOS | AMI UEFI BIOS |
Display Chip | Integrated Intel HD Graphics |
Display Port | 1*HDMI, 1*Built-in LVDS (Support synchronous and asynchronous dual display) |

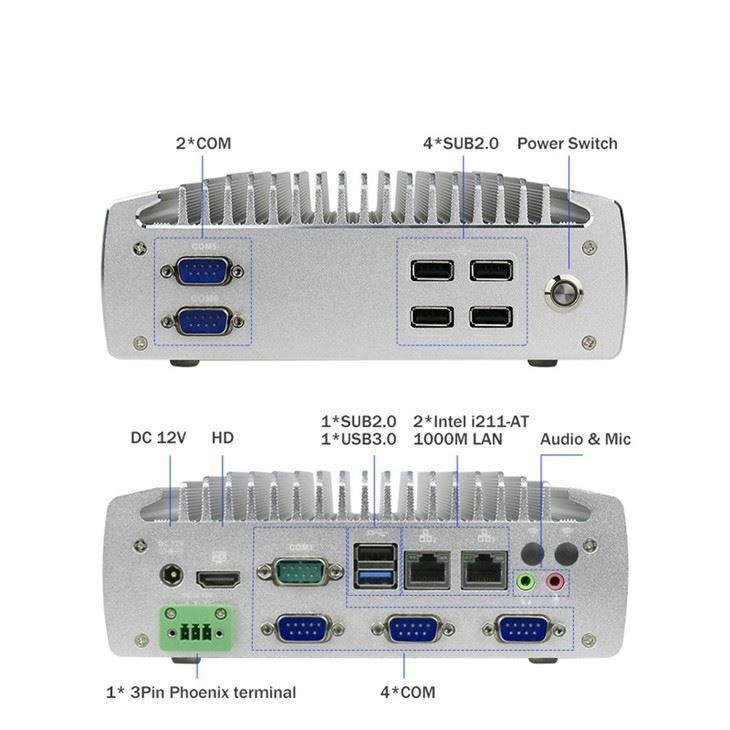

Front I/O | 4*USB2.0, 2*COM, 1*Power Switch |
Rear I/O | 1*USB3.0, 1*USB2.0, 4*COM (COM1, COM2 RS232/485 Optional), 1*3PIN Phoenix connector |
2*1000M LAN, 1*HDMI, 1*DC 12V Input, 1*Mic, 1*Line Out | |
Expansion Slot | Support 1*MINI PCIE Slot (Support MSATA) |
Support 1*MINI PCIE Slot (WIFI/3G/4G Optional), Embedded SIM Slot | |
Network | 2*Intel i211-AT 1000M LAN |
Storage | Support 1*MSATA Slot, 1*2.5" HDD |
Input Voltage | Support DC 12V Input |
Other Function | Auto power on when there is electricity, Timing boot, Wake on LAN, PXE boot, Watchdog (0～255 level) (Standard version doesn't set these function) |
Work Temp | 0℃ ～ +50℃ (Commercial HDD), -20℃ ～ +60℃ (Industrial SSD), Surface air flow |
Work Humidity | 5% ～ 95% non-condensing |
Certificates | CE, CCC, FCC Class A, ROHS |

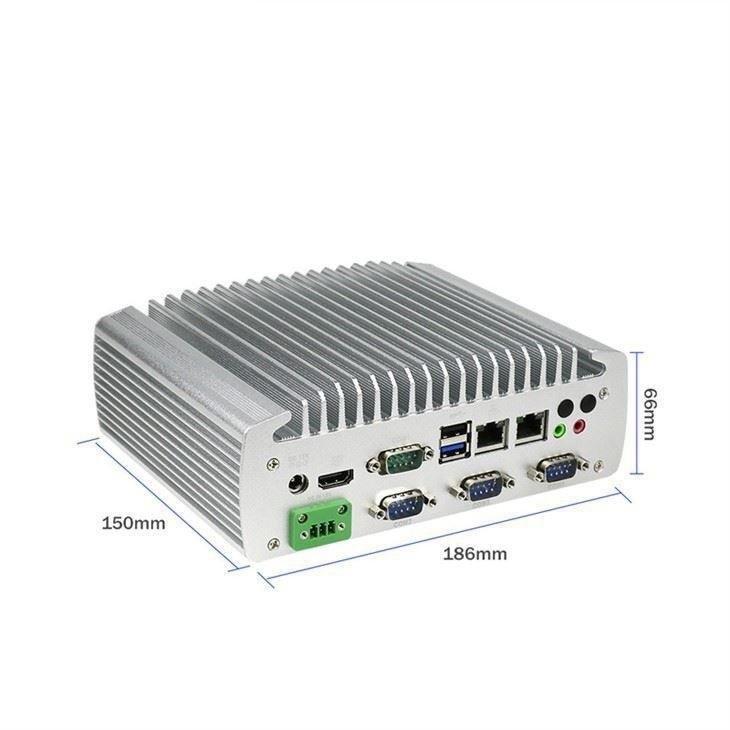

Dimension | 186 * 150 * 66mm【Not include the brackets】 |
Net Weight | 1.6kg【Not include the brackets】 |
Application | Industrial Automation, Medical, Logistics Transportation, Warehouse, Electronic Education etc. |
