I3 I5 I7 Industrial PC with 4 PCI
- Feature:
- Standard 4U Rack Mount, High-Grade plain galvanized steel plate structure;
- Onboard Intel H110 chipset;
- Support Intel 6th or 7th Generation Core i3 or i5 or i7 LGA1151;
- Max. Support 2*DDR4 DIMM, 32G;
- Support 1*MSATA SSD, 3*2.5" or 3.5" HDD;
- Support 6*COM, 2*COM RS232 or 485 optional;
- 1*PCI-E X16, 1*PCI-E X1;
- 1*PCI-E X4, 4*PCI;
- Applied OS:

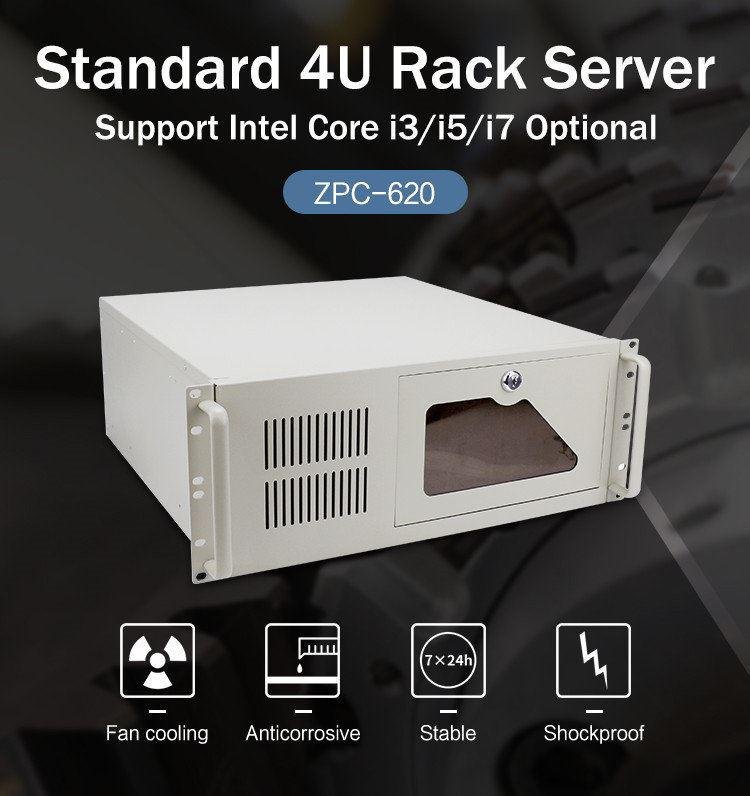

4U Rackmount Server H110 Core I3 I5 I7 CPU Industrial PC
Specification | |
Model | ZPC-620 (H110) |
Color | White (any color can be customized) |
Material | High no flower galvanized sheet |
Processor | Intel Core i3 6100 (dual core, 4 threads, 3.7 GHz) |
Intel Core i5 6500 (quad core, 4 threads, 3.2 GHz, Turbo boost 3.6 GHz) | |
Intel Core i7 6700 (quad core, 8 threads, 3.4 GHz, Turbo boost 4.0 GHz) | |
CPU Structure | Intel H110 |
RAM | 2*DDR4 2133/2400 DIMM, Max:32GB |
BIOS | AMI UEFI BIOS |
Display Chip | Integrated Intel HD Graphics 530 |
Display Port | 1*VGA, 1*DVI-D, 1*HDMI (synchronous and asynchronous dual display) |

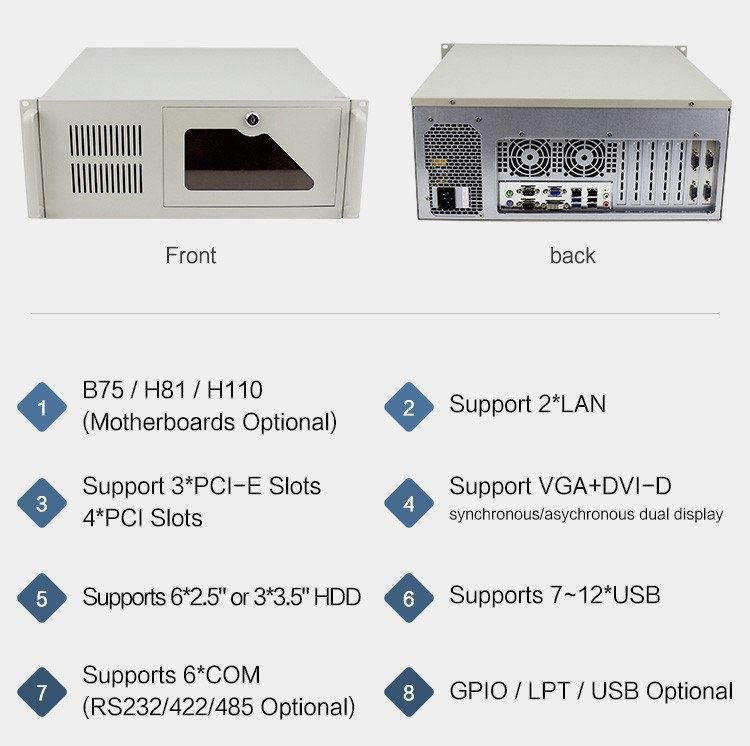

Front I/O | 2*USB2.0, 2*LED, 1*Power Switch, 1*Reset |
Rear I/O | 4*USB3.0, 2*Intel 1000 LAN, 1*VGA, 1*DVI-D, 1*HDMI |
Expansion Slot | 1*PCIE X16 + 1*PCIE X1 + 1*PCIE X4 + 4*PCI |
1*MINI PCIE (Support MSATA) | |
Expansion Port | GPIO, LPT, 1*USB2.0 Optional |
LAN | 1*Intel i211-AT, 1*Intel i219-LM |
Storage | 1*MSATA SSD, 3*2.5"/3.5" HDD |
Power Supply | AC 180～264 V (50～60Hz), 300W Rated Power |

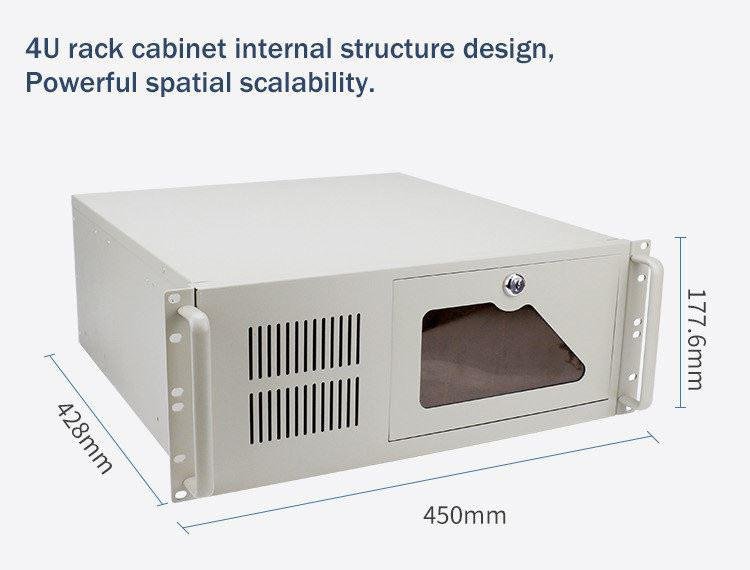

Dimension | 428 * 450 * 177.6 mm |
Weight | 12.5 kg (Barebone) |
Application | Applied in Network server, KIOSK, Advertising Machine, Self-service Terminal, Electronic Whiteboard, ATM, POS/Retail, Networking . |
