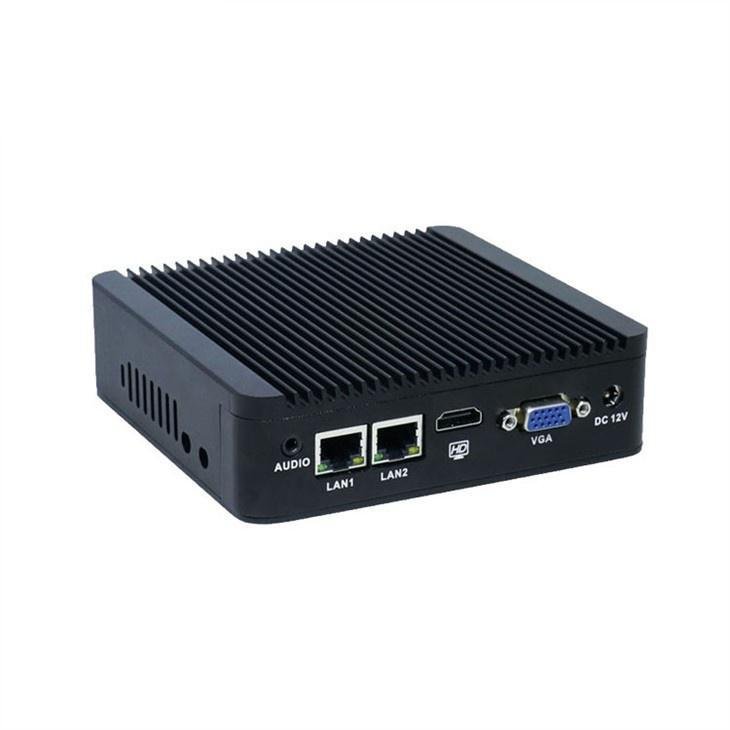

Celeron J1900 Pentium N3540 Mini PC
Features:
- All aluminum structure, fanless design;
- Onboard Intel Celeron J1900 or N3540 quad core processor optional;
- Max. Support DDR3L 8G RAM;
- Support 1*MSATA, 1*2.5" HDD;
- Support 2*1000M LAN;
Fanless J1900 Dual Lan Mini Computer for Kiosk
Specification | |
Model | Nano N3 |
Color | Black (Color can be customized) |
Material | High-quality all aluminum, surface anodic oxidation |
Processor | Onboard Intel Celeron J1900 (Quad core quad threading, 2MB Second Level Cache 1.99GHz) |
Onboard Intel Pentium N3540 (Quad core quad threading, 2MB cache, 2..16GHz, Max turbo 2.66GHz) | |
Chipset | J1900 / N3540 (Single Chip) |
RAM | Support 1*DDR3L 1333/1600MHz SODIMMRAM slot, Max. Support 8GB |
BIOS | AMI UEFI BIOS |
Display Chip | Integrated Intel HD Graphics |
Display Port | 1*VGA, 1*HDMI (Support synchronous and asynchronous dual display) |
Front I/O | 1*Power Switch, 1*USB3.0, 5*USB2.0, 1*RS232 COM |
Rear I/O | 1*Audio, 2*RJ45 LAN, 1*VGA, 1*HDMI, 1*DC Input |
Expansion Slot | Support 1*MINI PCIE Slot (WIFI/BT Optional) |
Support 1*MINI PCIE Slot (Support MSATA) | |
Network | 2*10/100/1000M RTL8111E 1000M LAN |
Storage | 1*MSATA, 1*2.5”HDD |
Input Voltage | Support DC 12V Input |
Other Function | Auto power on when there is electricity, Timing boot, Wake on LAN, PXE boot, Watchdog (0～255 level) |
Work Temp | 0℃ ～ +50℃ (Commercial HDD), -20℃ ～ +50℃ (Industrial SSD), Surface air flow |
Work Humidity | 5% ～ 95% non-condensing |
Certificates | CE, CCC, FCC Class A, ROHS |
Dimension | 134 * 126 * 38.5 mm |
Net Weight | 0.7kg |
Application | Industrial Automation, Medical, Logistics Transportation, Warehouse, Electronic Education etc. |
