7th Gen Core I5 I7 Industrial PC PCI Slot
- Intel Celeron 3865U、7th Generation Core i5 i7
- 1xDDR4 Max. Support 16GB RAM Slot
- Support WIFI/3G/4G Optional（Choose one from three）
- 1*PCIE X4 + 1*PCIE X1，Built-in 1*USB2.0
- 2*PCI（32bit），Built-in 1*USB2.0
- OS：

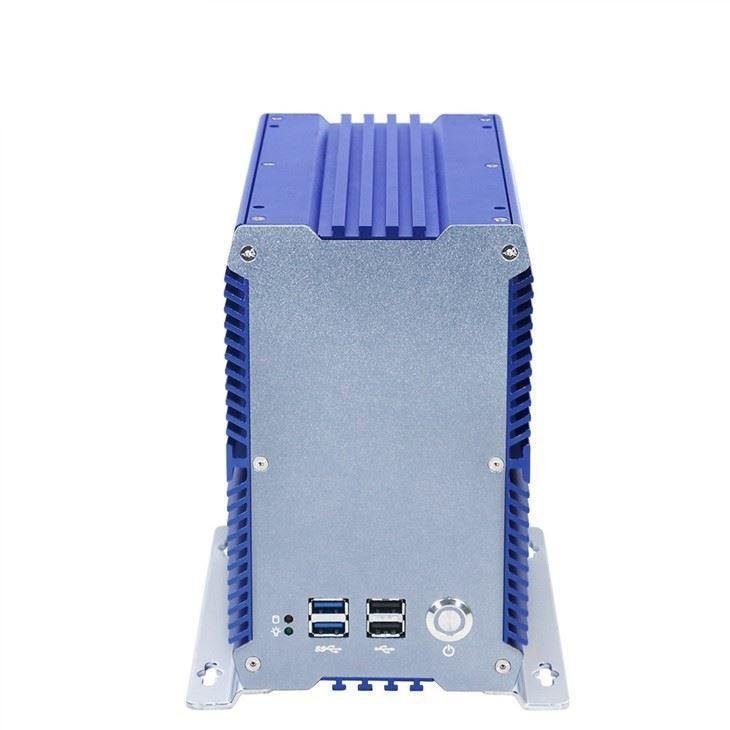

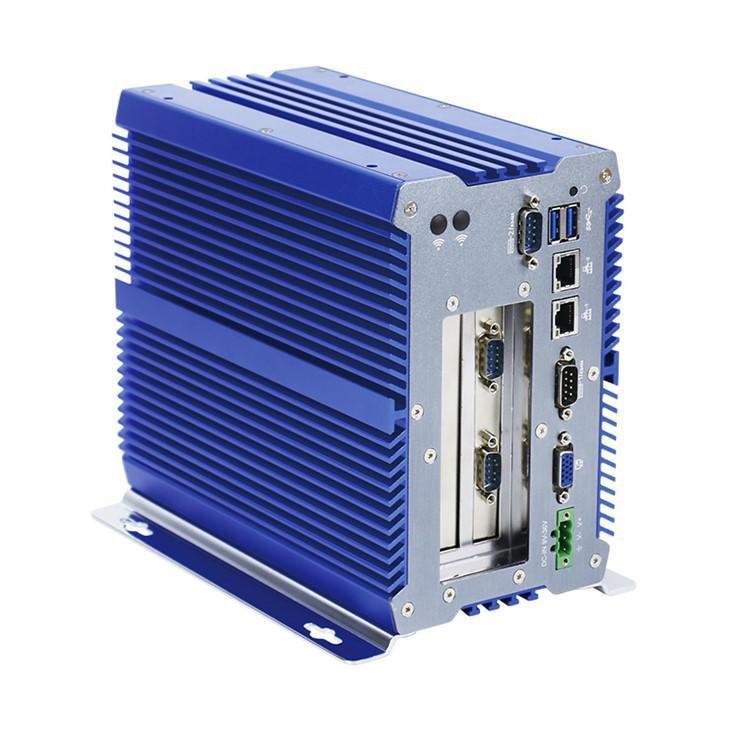

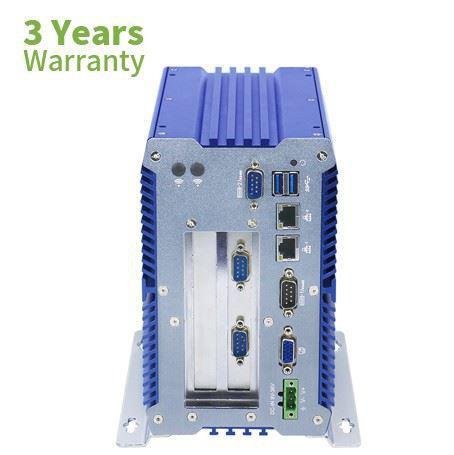

The IBOX-701Plus features one DDR4-1866/2133 SO-DIMM slots with up to 16 GB memory. For easy cabling and maintenance, the IBOX-701Plus rated embedded system features a wide choice of front-accessible I/O interfaces, including 2*USB3.0,2*USB2.0,2*Indicator light,1*Power Switch;Rear I/O:2*USB3.0,2*Intel 1000M LAN,1*VGA,1*3Pin Power Phoenix Connector, 1*Clean COMS button,Standard 4*COM(6*COM Optional,COM1,COM2 RS232/422/485 Optional).
The compact industrial PC also provides Expansion Port,1*MINI PCIE Slot(WIFI/3G/4G Optional),Embedded SIM Slot ; 1*MINI PCIE Slot(Support MSATA).
There are three different combinations of expansion kits: (Choose 1 from 3)
①1*PCIE X4 + 1*PCI(32bit),Built-in 1*USB2.0
②2*PCI(32bit),Built-in 1*USB2.0
③1*PCIE X4 + 1*PCIE X1,Built-in 1*USB2.0
Additionally, it has 1*MSATA Slot,1*2.5" HDD and one easy-swappable 2.5" HDD trays for storage.
| Model | IBOX-701 Plus |
| Chassis | Blue + Grey all aluminum Chassis |
| Processor | Intel Celeron 3865U,Intel Core i5 7200U, Intel Core i7 7500U |
| RAM | 1*DDR4 1866/2133 SODIMM RAM Slot,Max 16GB |
| Storage | 1*MSATA Slot,1*2.5" HDD |
| Display Port | 1*VGA,1*HDMI Built-in Pin |
| I/O | 4*USB3.0,2*USB2.0 |
| 1*Clean COMS button,Standard 4*COM(6*COM Optional,COM1,COM2 RS232/422/485 Optional) | |
| 2*Intel 1000M LAN,1*VGA,1*3Pin Power Phoenix Connector | |
| 2*Indicator light,1*Power Switch | |
| Expansion Port | 1*MINI PCIE Slot(WIFI/3G/4G Optional),Embedded SIM Slot |
| 1*MINI PCIE Slot(Support MSATA) | |
| (Choose 1 from 3) | 1*PCIE X4 + 1*PCI(32bit),Built-in 1*USB2.0 |
| 2*PCI(32bit),Built-in 1*USB2.0 | |
| 1*PCIE X4 + 1*PCIE X1,Built-in 1*USB2.0 | |
| Input Voltage | DC 9～36V wide voltage Input |
| Work Temp | 0℃ ～ +50℃,-20℃ ～ +60℃ |
| Work Humidity | 5% ～ 95% non-condensing |
| Dimension | 215 * 185 * 115 mm【Not include the brackets】 |
| Net Weight | 3.6 kg【Not include the brackets】 |
The application-ready IBOX-701Plus Fanless Computer with PCI Slot in stock. Get more product info information or pricing, welcome to visit our website at www.iwillminipc.com or contact one of our sales representatives at jessie@iwillminipc .
