6 LAN Mini PC
Features：
- All aluminum structure，Fanless design；
- Onboard Intel 8th Generation Core i5/i7；
- Support 2*DDR4 RAM Slot，Max Support 32G；
- Support 1* MSATA，1*2.5”SATA；
- Support 6* Intel 1000 M Lan；
- Support 1* RJ45 COM（Support Console）；
- Applied O/S：
6 Lan mini pc support Intel 8th Celeron 3867U/Core i5 8250U/i78550U,Support 2*DDR4 RAM Slot,Max Support 32G;Support 6* Intel 1000 M Lan;Support 1* RJ45 COM(Support Console).
| 6 Lan mini pc | |
Model | IBOX-501 N18 |
Color | Black (Color can be customized) |
Materia | High-quality all aluminum,Surface anodic oxidation |
Processor | Onboard Intel Celeron 3867U(Dual core, dual threads,1.8G,2MB Cache); |
Ondoard Intel Core i5 8250U(quad core,8 threads,1.6G,Max.Turbo 3.4G,6MB Cache); | |
Onboard Intel Core i7 8550U(quad core,8 threads, 1.8G,Max.Turbo 4.0G,8MB Cache) | |
RAM | Support 2* DDR4 2133/2400 MHz SODIMM RAM slot,Max.32 GB |
Display Chip
| Integrated Intel UHD Graphics 620 |
Display Port | 1* HDMI(No sound output) |

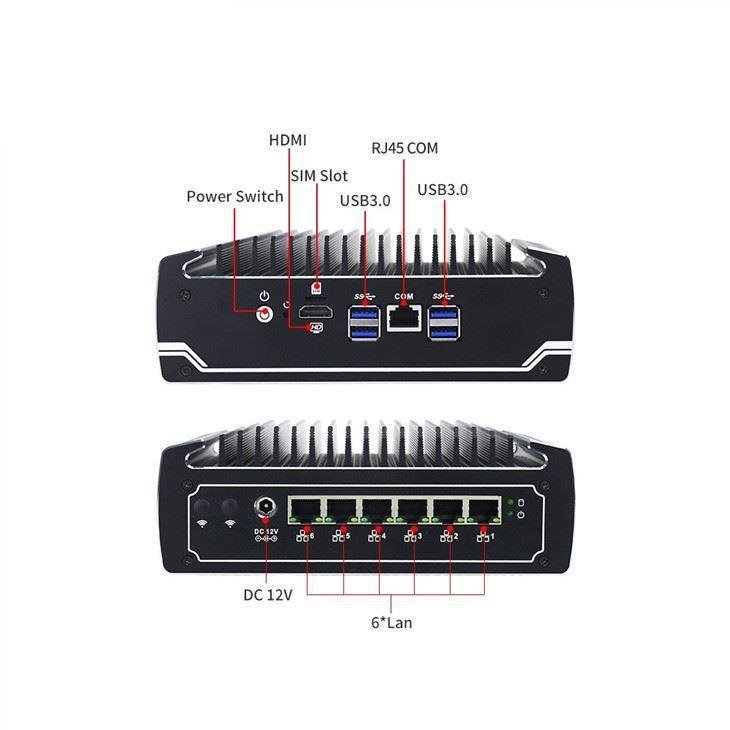

Front I/O | 4*USB3.0,1*Power Switch,1*RJ45 COM(Support Console),1* HDMI |

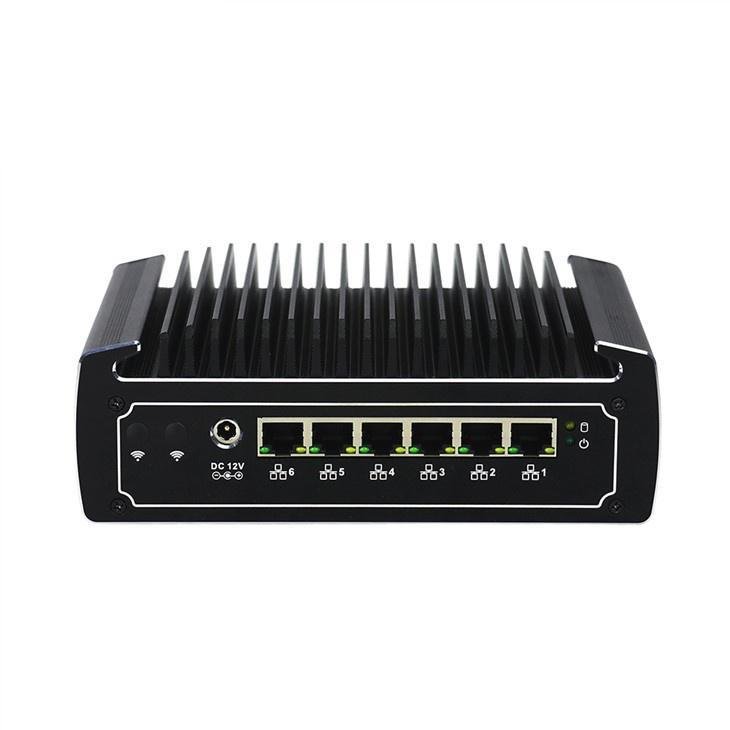

Rear I/O | 6*RJ45 1000M Lan, 1*DC |

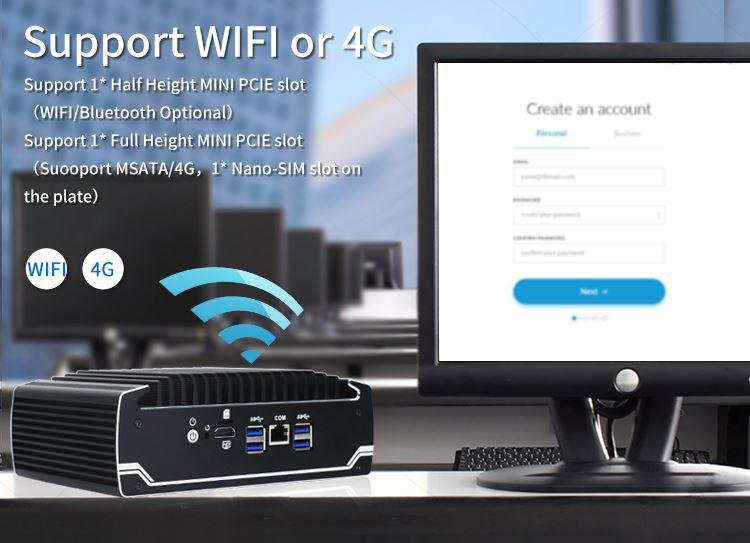

Expansion | Support 1* half height MINI PCIE slot(WIFI/BT Optional) |
Support 1* Full height MINI PCIE slot(Suooport MSATA/4G,1* Nano-SIM slot on the plate) | |
Network | 6*Intel i211-AT 10/100/1000M LAN |
Storage | 1*MSATA slot,1*2.5" HDD |
Input Voltage | Support DC 12V Input |
Other Function | Auto power on when there is electricity,Timing boot,Wake on LAN,PXE boot,Watchdog(0～255 level) |
Work Temp | 0℃ ～ +50℃(Commercial HDD),-20℃ ～ +50℃((Industrial SSD),Surface air flow |
Work Humidity | 0% ～ 95% non-condensing |
Dimension | 186 * 126.5 * 66 mm |
If you are interested in our N18 Intel 8th 6 Lan mini pc , contact us get more details of 6 ports mini pc .
