1U 19 Inch Rackmount Network Applince
◇4th Generation Core i3/i5/i7 LGA1150 Network Security
◇2*DDR3 1333/1600 Max16 GB Ram
◇Adopt Intel B85 Chipset
◇6*Intel 82583V LAN，2*Optical Fiber Ports optional
◇1*Mini PCIE，WIFI/BT
◇OS：

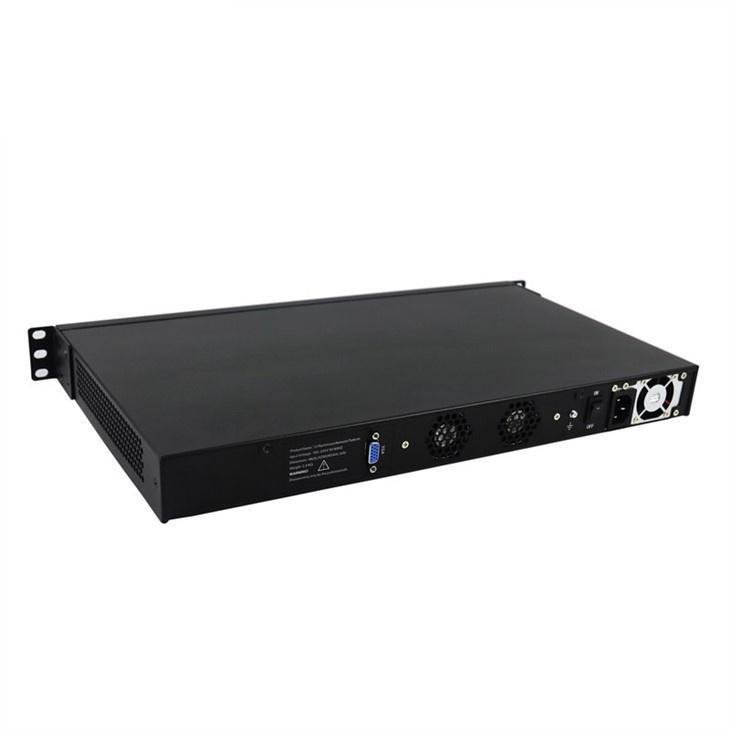

1U Rackmount 19" Structure Network Security Appliance .Featuring high-performance 4th Generation Core i3 4160 i5 4460 i7 4770 Processor,Adopt intel B85 Chipset,2*DDR3 1333/1600 Max16 GB ram, and up 6xIntel 82583V network interfacegigbi LAN,2xSFP ports.. It is ideally suited for building high performance firewalls and virtualized telecom elements.Meet the needs of big data and cloud computing applications.
Work Humidity
| Model | NS-1U8L (B85) |
| Color | Black |
| Shell Material | Good quality of cold-rolled sheet |
| Processor | Intel Core i3 4160(dual core, 4 threads,3.6 GHz) |
| Intel Core i5 4460(quad core, 4 threads,3.2 GHz,turbo boost 3.4 GHz) | |
| Intel Core i7 4770(quad core, 8 threads,3.4 GHz,turbo boost 3.9 GHz) | |
| Chipset | Intel B85 |
| Memory | 2*DDR3 1333/1600 MHz,SODIMM, Max:16 GB |
| I/O | 1*RJ45 COM(support Console),2*USB2.0,6*Intel 1000M LAN |
| 1*VGA,1*Power Switch,1*AC power port | |
| Expansion Slot | 1*MINI PCIE(Support MSATA) |
| 1*MINI PCIE(WIFI/Bluetooth optional) | |
| Network | 6*Intel 82583V LAN,2*Optical Fiber Ports optional |
| Storage | 1*MSATA , 1*2.5" SATA HDD(2*2.5" SATA HDD optional) |
| Power Supply | 110～240V/50～60Hz AC Input |
| Work Temp | -10℃ ～ +50℃ |
| Work Humidity | 5% ～ 95% non-condensing |
| Dimension | 440 * 250 * 44.5mm |
Outstanding computing performance
Standadr 1U Rack server,support computer-intensive and cloud applications save energy.low TCO,simplifes manangement and maintenance.
Working with intelligent fan speed adjustment to precisely cool server,markedly increaseing the cooling efficiency.
If you want to know mor info about 19-Inch 1U Network Security Appliance,Please contact us !
